Description

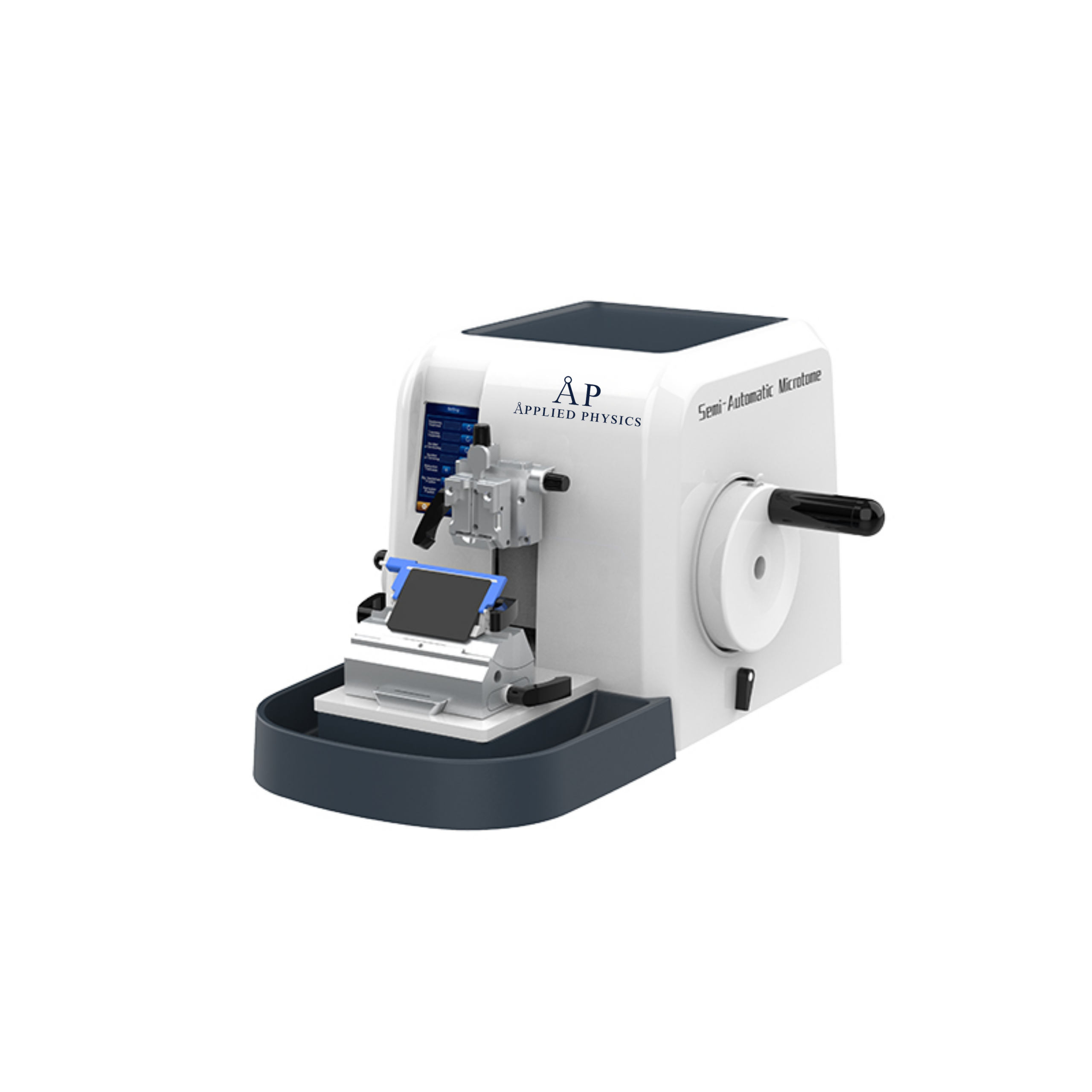

Features: 1. Precision cross-roller guide, equipped with stainless steel holder, to ensure long-lasting operation of the equipment. 2. Equipped with multi-angle adjustment device and embedding chuck. 3. With sectioning/trimming, sectioning counting, retraction display(retraction range, feed travel of small hand wheel, feed direction of hand wheel) function. 4. Magnetic removable waste chute, easy to clean. 5. Two-piece storage board, which can place blade embedding box and other related disposable items. 6. Large hand wheel double lock, and can be single-locked at any point, also double-locked at the highest point and any point, to ensure the safe exchange of knives and samples. Technical Parameters:
| Model | BK-2238 |
| Sectioning Thickness Range | 0.25~100μm |
| Trimming Thickness Range | 1~600μm |
| Retraction Range | 0~200μm |
| Mini. Sectioning Thickness | 0.25μm |
| Precision | ±5% |
| Velocity Of Small Hand Wheel | 25μm, 50μm, 75μm, 100μm, 125μm |
| Max Specimen Size | 70*70mm |
| Specimen Stroke | Horizontal: 28mm, Vertical: 70mm |
| Tool Holder Stroke | The maximum movement of the tool holder base is 60mm, and the maximum left and right movement of the tool holder is 23mm |
| Sample Adjustment Direction | Horizontal 8° Vertical 8° Rotation 90° |
| Power Supply | AC110/220V, 50/60Hz |
| Power | 100W |
| External Size(W*D*H) | 610*470*340mm |
| Net Weight | 37kg |
| Packing Size(W*D*H) | 730*590*590mm |
| Gross Weight | 55kg |
