The Separatory Funnel Shaker is a high-efficiency laboratory device designed to automate the mixing and separation process in liquid-liquid extractions.
$0.00

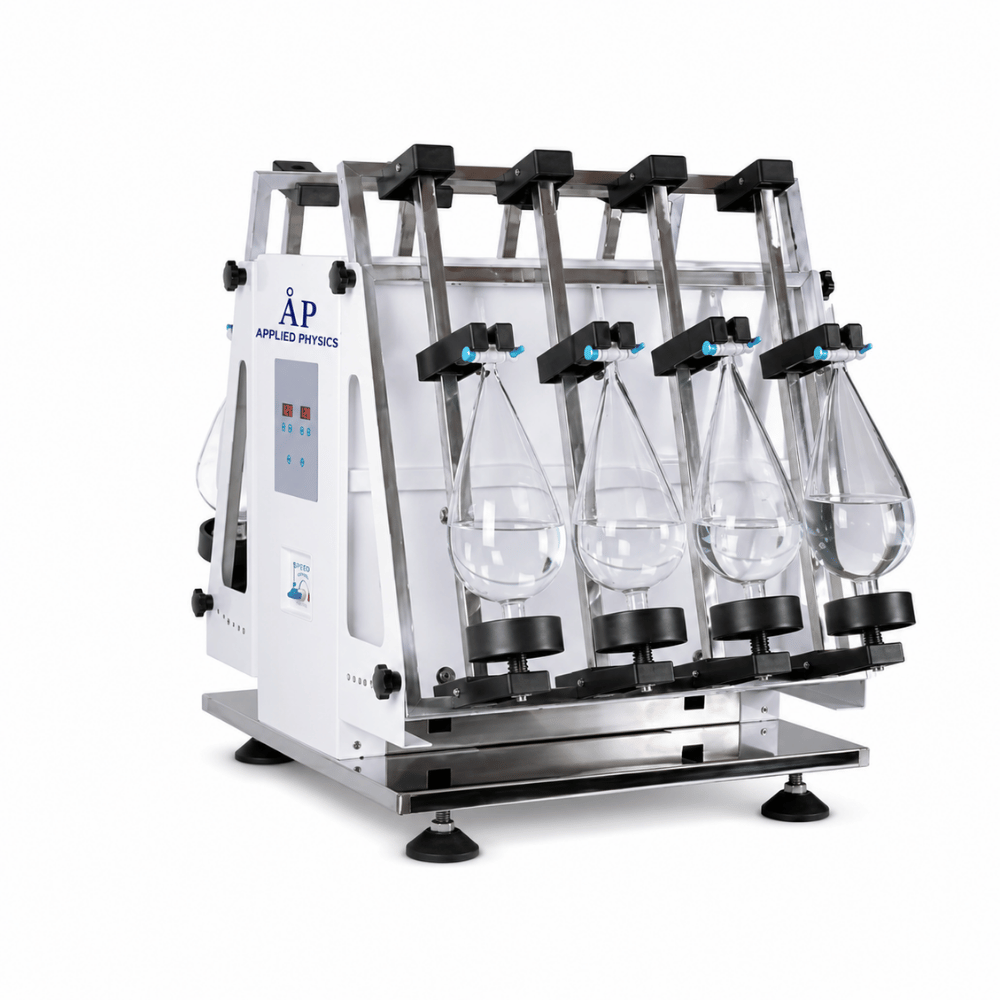

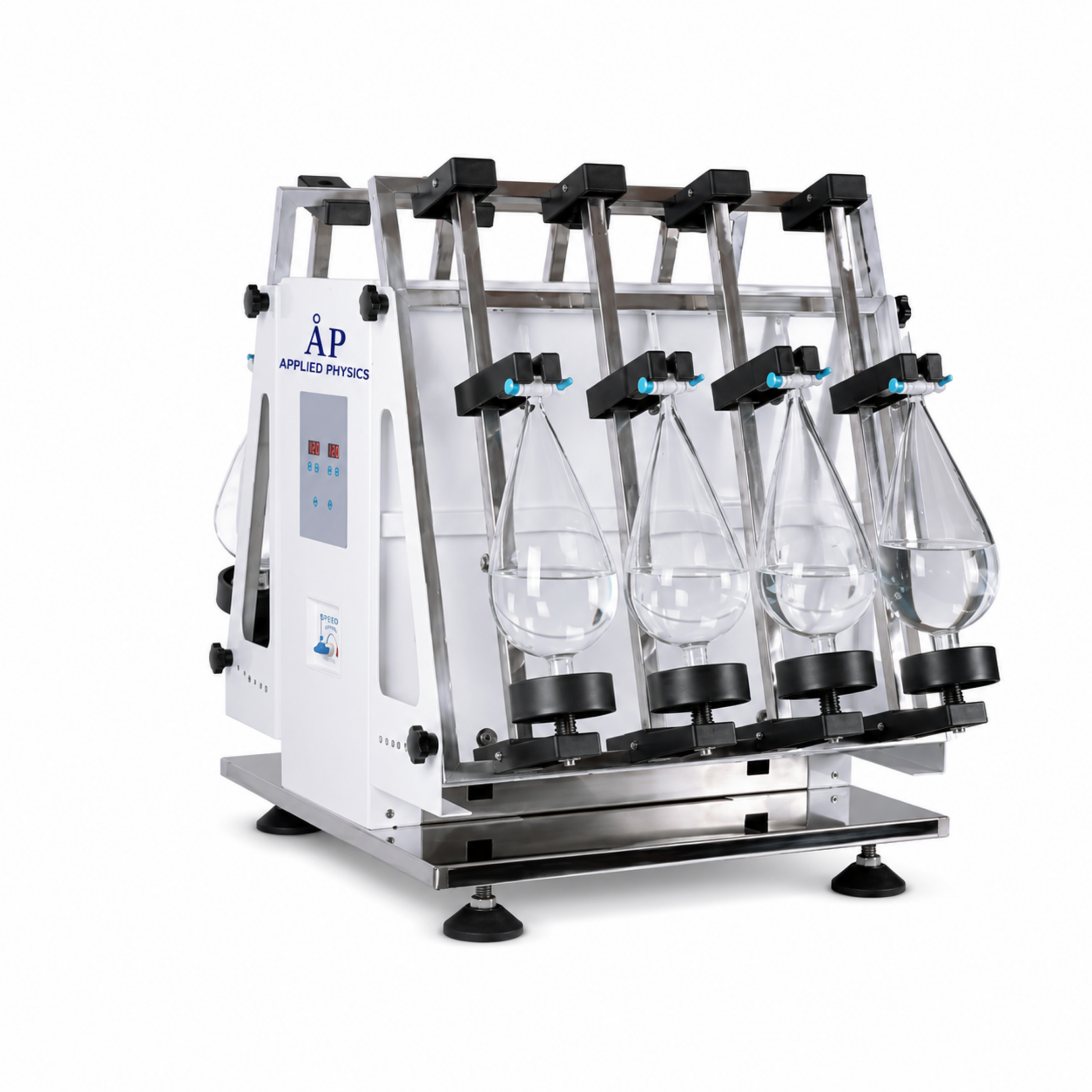

Separatory Funnel Shaker
Features：
1. Vertical shaker equipment can automatically shake separating funnel, complete liquid-liquid extraction, sample mixing, etc.
2. Large amplitude, high speed, working time can be set.
3. Adjustable frequency, batch samples processing, high efficiency, high recovery rate, minimizing operator exposure to chemical agents to protect personal safety.
4. Easy to install&operate, meet the needs of all types of laboratory extraction purification.
5. Shaking by both vertical & slant methods. Powerful strength for the mix of extraction liquid&water.
6. Low noise&long-time stable working.
7. Rotated sample holder, easy to install&detach specimen.
8. Varies sample holders alternative to adapt varies experiments.
Technical Parameters：
Model
BK-VS06
BK-VS08
BK-VS10
Sample Capacity
6pcs
8pcs
10pcs
Shaking Method
Vertical Shake(tilt angle 0~20° adjustable)
Shaking Amplitude
≥40mm
Shaking Frequency
100~300 times/min adjustable
Frequency Control
Infinitely variable speeds
Operation Mode
Continuous operation, interval operation, curve operation
Timing Range
Max 15 minutes(count down applied)
Applied Vessel
50ml~2000ml separating funnel, 100ml and 250ml conical flask, 100ml measuring cylinder with stopper, 100ml colorimetric tube with stopper, 100ml volumetric flask with stopper, etc., no need to change the fixture
Extraction Efficiency
95~110%
Rated Load
Bilateral symmetry 11kg
Power Supply
AC220±10%, 50/60Hz(Standard); 110V, 60Hz(Optional, External transformer)
Packing Size
810*710*1080mm
Net Weight
120kg
122kg
124kg
Gross Weight
148kg
152kg
154kg
| Model | BK-VS06, BK-VS08, BK-VS10 |
|---|
