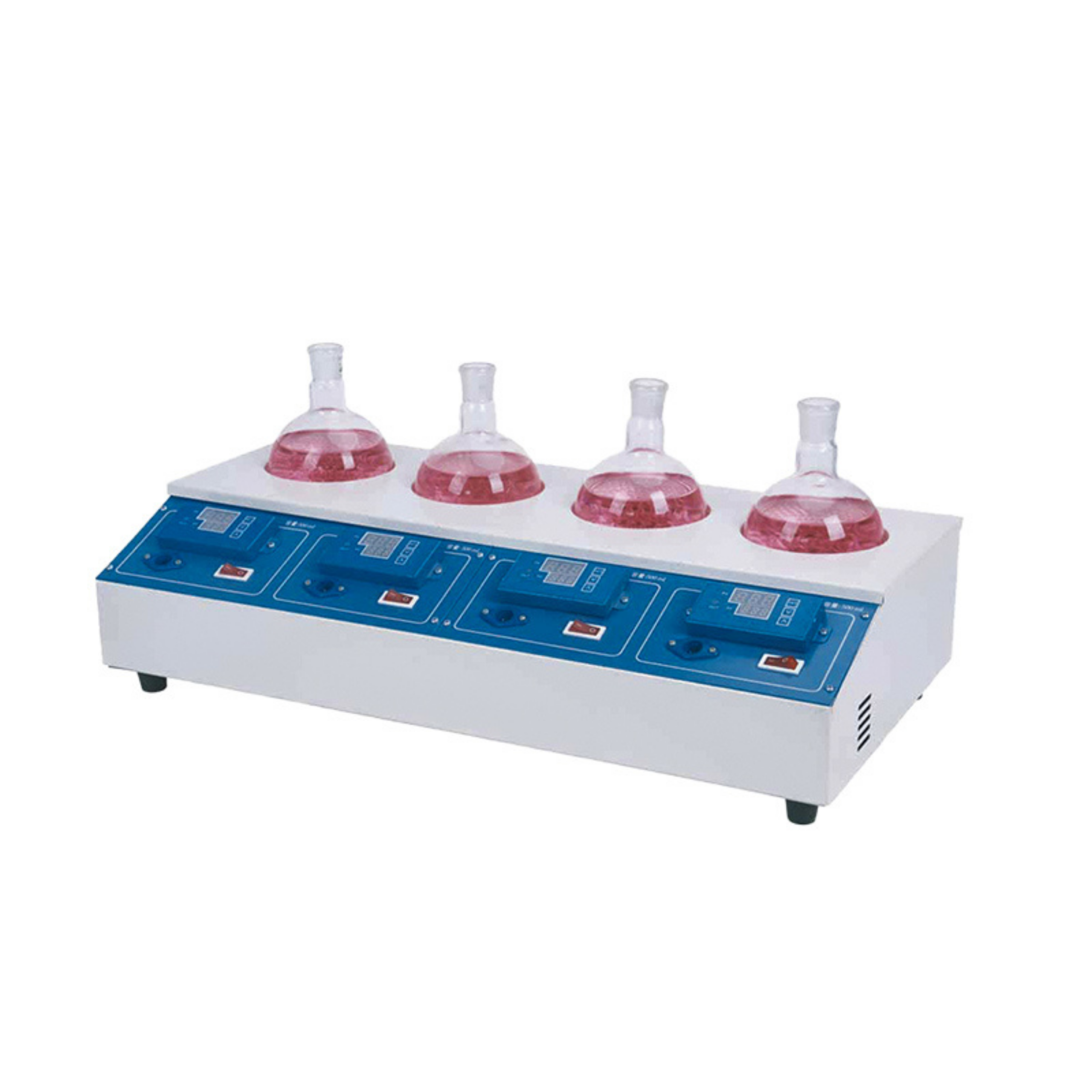

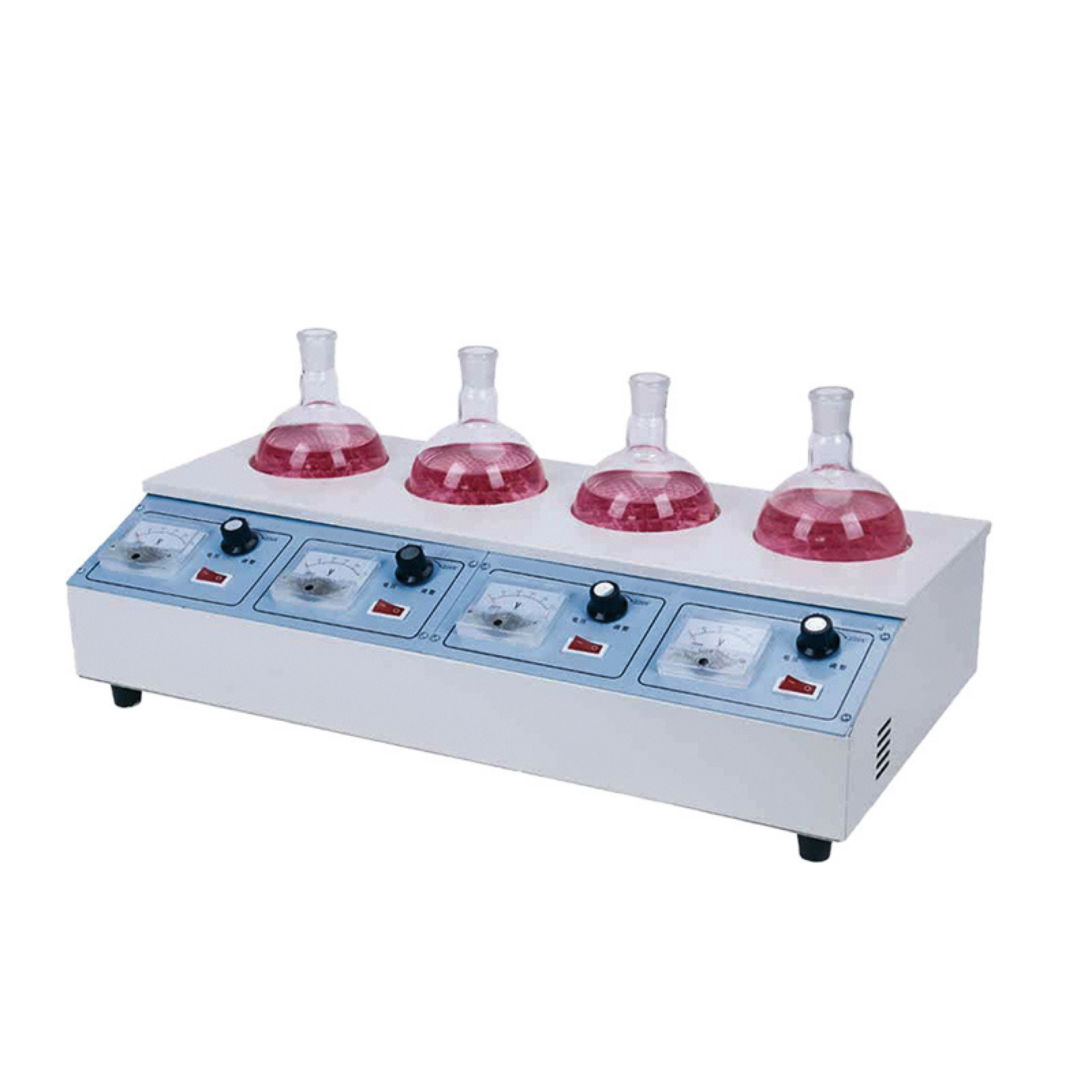

Several Rows Electronic Control Heating Mantles

Several Rows Electronic Control Heating Mantles Features: 1. Corrosion-resisting and ageing-resistant. 2. The internal heater is in hemisphere shape with high efficiency. 3. The external material is cold-rolled steel with anti-bacteria powder coating. 4. It adopts high-temperature resistant alkali-free glass fiber with good isolation performance. Technical Parameters: Model Rows Capacity(ml) Max. Use Temp. Working Time Consum- ption(W) Power Supply External Size(W*D*H)mm Packing Size (W*D*H)mm Net Weight Gross Weight HME-III/ HMD-Ill(LED Display) Two Rows 100 380°C Contin- uous 200 AC110/220V±10%, 50/60Hz 280*290*150 375*385*245 4kg 7kg 250 360 280*290*150 375*385*245 4kg 7kg 500 500 320*320*155 415*415*245 5kg 8kg 1000 600 390*355*150 485*450*245 7kg 10kg Four Rows 100 400 550*290*150 645*385*245 8kg 11kg 250 720 550*290*150 645*385*245 8kg 11kg 500 1000 635*315*150 730*410*245 10kg 13kg 1000 1200 780*350*150 875*445*245 14kg 17kg Six Rows 100 600 830*295*150 925*390*245 12kg 17kg 250 1080 830*295*150 975*440*245 13kg 18kg 500 1500 950*310*150 1045*405*245 14kg 19kg 1000 1800 1170*355*150 1670*450*245 20kg 23kg

Catalog relationship: Available Through Applied Physics
