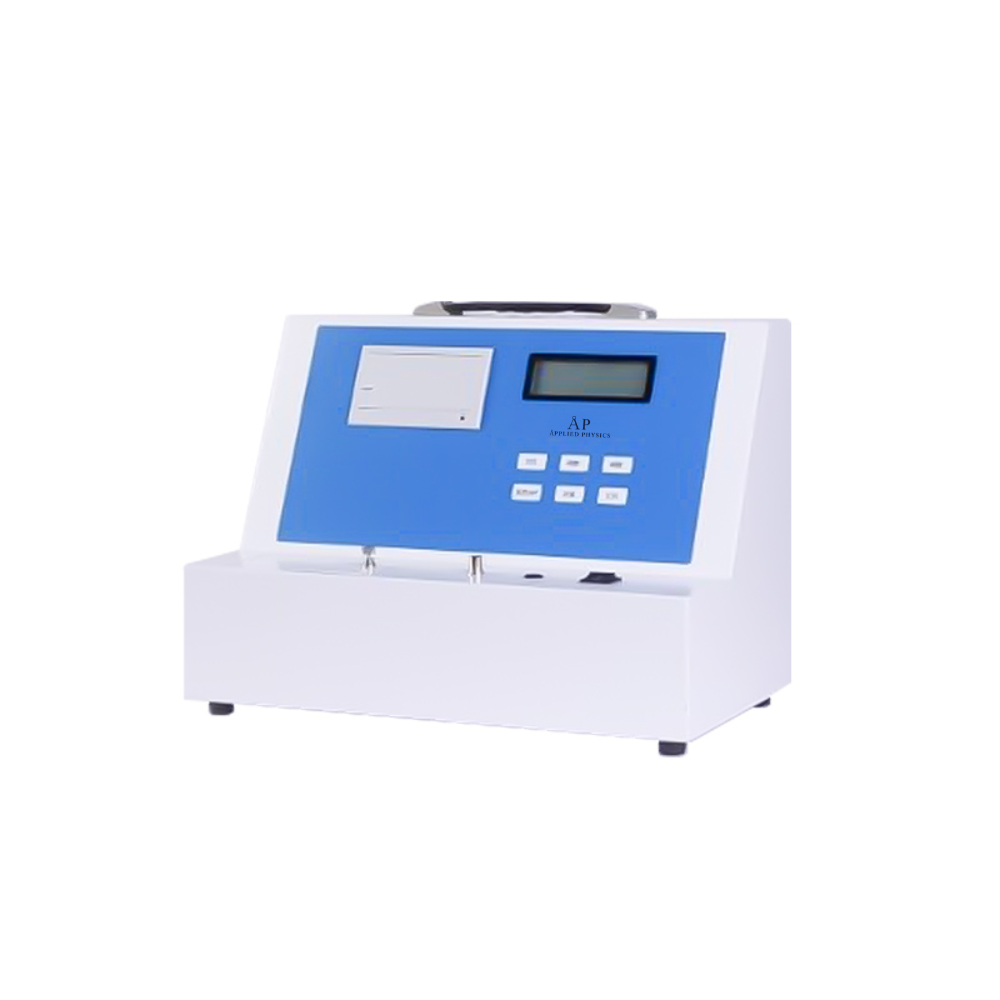

Soil Nutrient Tester BK-Y6AGP

Description

Soil Nutrient Tester BK-Y6AGP

Feature:

1. Microcomputer control, digital circuit, programming design, LED display, AC and DC dual-purpose

2. Resolution: 0.001, touch button, built-in high-end thermal printer, print test results.

3. Can detect fertilizers, organic fertilizers(including foliar fertilizers, water-soluble fertilizers, spray fertilizers, etc.), effective nitrogen, effective phosphorus, effective potassium, total nitrogen, total phosphorus, total potassium, organic matter, pH, calcium, magnesium, sulfur, iron, manganese, boron, zinc, copper, chlorine, silicon and other elements, as well as lead, chromium, cadmium, mercury, arsenic and other heavy metals.

4. The light source is stable, reproducible and accurate.

5. Water quality detection: pH, calcium, magnesium, sulfur, iron, manganese, boron, zinc, copper, chlorine, silicon, etc.

Technical Parameter:

Model

BK-Y6AGP

Range

0.001~9999

Repeatability Error

≤0.05%(0.001, potassium dichromate solution)

Stability

Drift less than 0.1%(0.001, transmittance measurement) within 30 minutes.

Linear Error

≤0.2%(0.002, copper sulfate detection)

Sensitivity

Red light≥4.5×10^-5, Blue light≥3.17×10^-3, Green light≥2.35×10^-3, Orange light≥2.13×10^-3

Wavelength Range

Red: 680±2nm; blue: 420±2nm; green: 510±2nm; Orange: 590±4nm

PH Value(PH)

Test range: 1~14; Accuracy: 0.01; Error: ±0.1(Extended)

Salt Content (Conductivity)

Test range: 0.01%~1.00%; Relative error: ±5% (Extended)

Soil Moisture

Moisture unit: %(g/100g); Moisture content test range: 0~100%; Error less than 0.5%

Test Speed

Test one soil sample(N, P, K)≤30 minutes(including pretreatment time); Simultaneously measure 8 soil samples≤1 hour(including pretreatment time)

Data Printing

Built in high-grade one button thermal printer

Power Supply

110~240V, 50/60Hz

Package Size(L*W*H)mm

550*370*250; 550*170*250

Gross Weight(kg)

6; 5
