Peristaltic pumps are mainly used for various liquid transfer. The peristaltic pump driver provides power to drive the pump head to run, and the rotor in the pump head rotates, relying on the pumping efficiency generated by the alternate extrusion and release of several rotors along an elastic hose to work. The squeezed fluid in the tube produces flow output, and when the tube returns to its original state by its own elasticity after the pressure disappears, the volume increases, a vacuum is generated, the fluid is sucked in, and the cycle is repeated.
$0.00

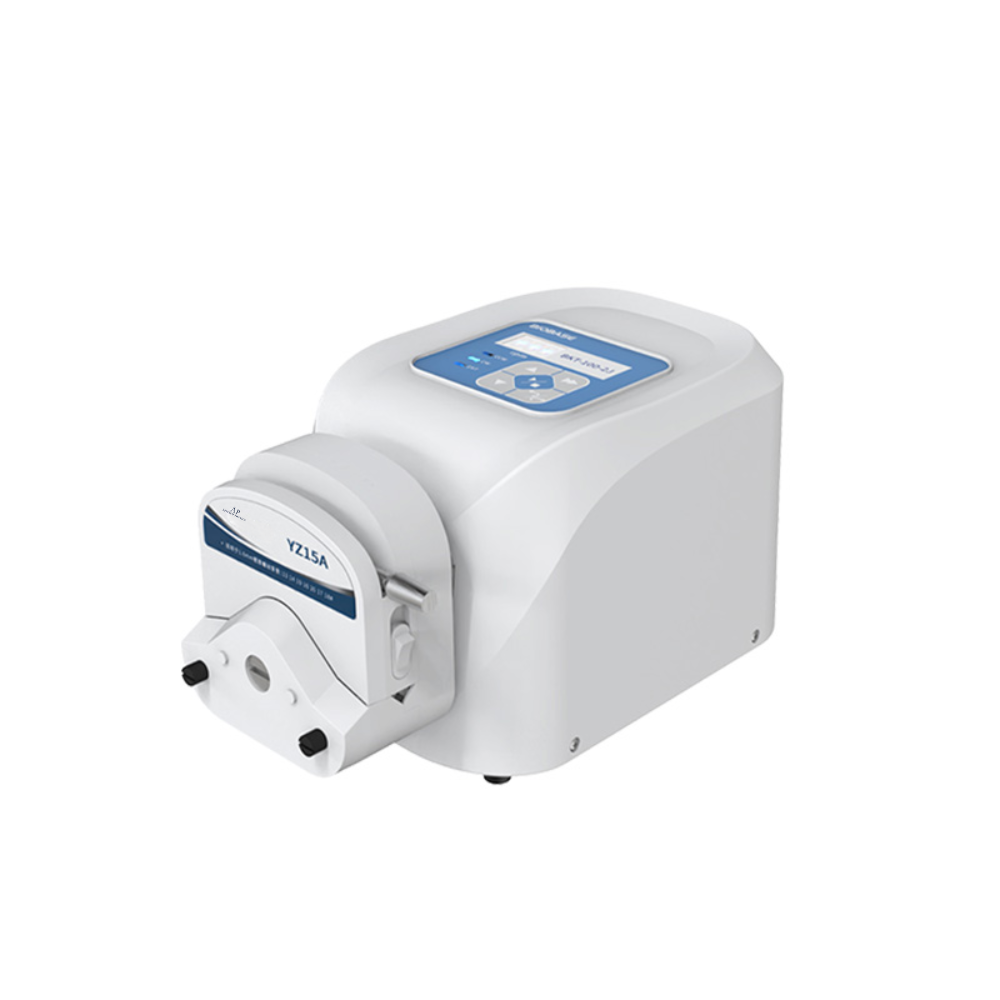

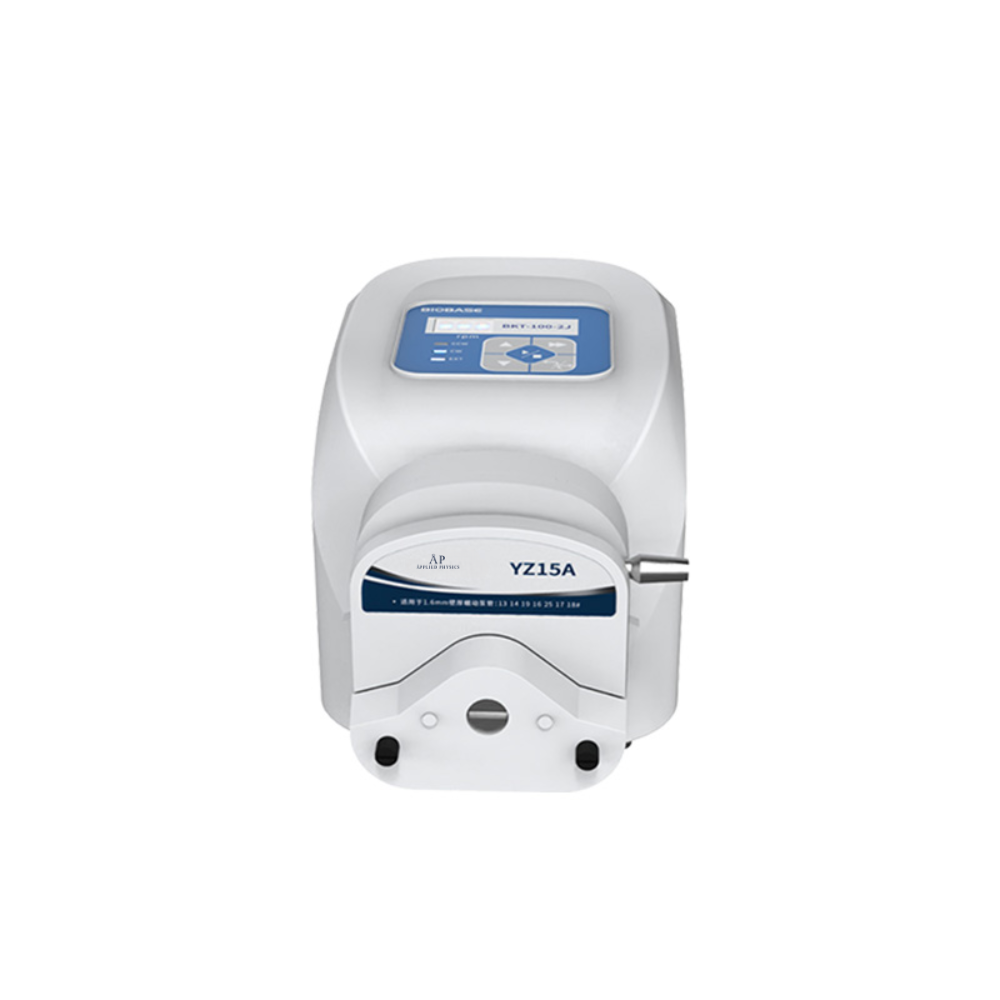

Standard Peristaltic Pump
Features：
1. Full speed function: realize fast filling and emptying.
2. Speed regulation function: The speed can be adjusted manually, or controlled through an external control interface.
3. Direction function: reversible forward and reverse.
4. Display function: display the current speed, direction and status.
5. Power-off memory function: memorize the working state before power-off(continuous work for more than 5s).
Technical Parameters：
Model
SPP-100-2J
SPP-300-2J
Speed Range
0.1~100rpm
0.1~300rpm
Speed Resolution
0.1rpm
0.1~99.9rpm: 0.1rpm; 100~300rpm: 1rpm
Adjusting Method
Membrane button continuous adjustment
Display
LED displays current speed
Power
≤30W
≤75W
Flow Range
0.0002~380ml/min
0.06~1140ml/min
External Size
254*140*140mm
Protection Class
IP31
Pump Model
YZ15A
Suitable Pump Hose
13# 14# 19# 16# 25# 17# 18#
Ambient Temperature
10℃~40℃
Relative Humidity
≤80%
Atmosphere Pressure
860hPa~1060hPa
Power Supply
100~240V, 50/60Hz
100~270V, 50/60Hz
Full Speed Function
Fast filling and emptying
Speed Adjustable Function
Manual speed adjustment
Direction Function
Reversible
Display Function
Display current speed,direction and status
Power-off memory function
Memory of working status before power failure(working continuously for more than 5 seconds)
Standard Accessories
YZ15A pump head, 2 meters of 14# pump hose
Optional Accessory
Foot switch
Packing Size
390mm*340mm*240mm
Gross Weight
3.3kg
| Model | PP-100-2J, SPP-300-2J |
|---|
