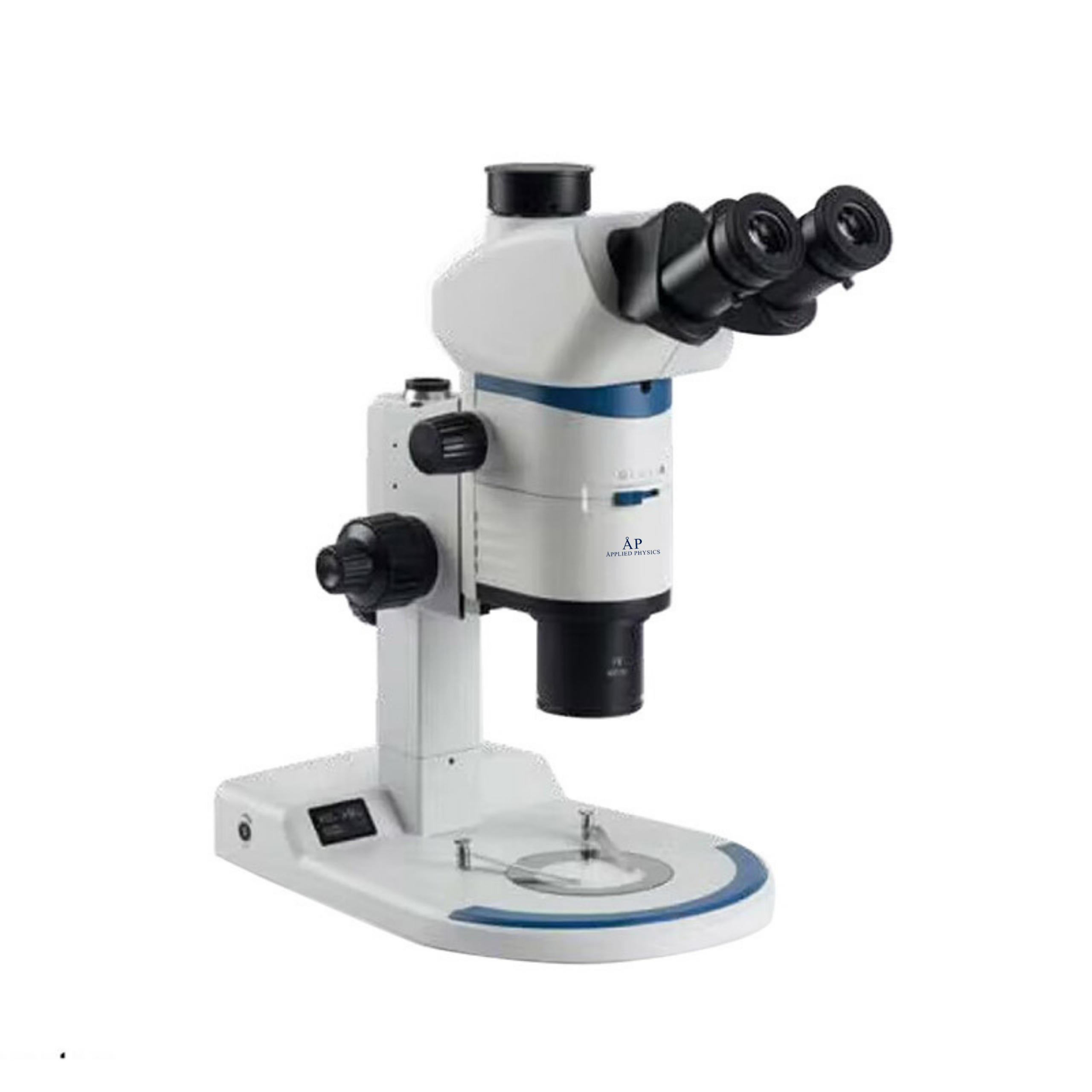

Stereo Microscope BM-12TC

Description

Stereo Microscope BM-12TC

Technical Parameters

Model

BM-12TC

Eyepiece

Working distance 80mm

High eye point, large field of view, flat field eyepiece

Magnification

Field diameter

6.3x

34.92mm

80x

2.75mm

Zoom ratio

12.5:1

Total magnification

6.3x-80x

Interpupillary distance

50-76mm

Nosepiece

2-port objective nosepiece for simultaneous mounting of 2 primary objectives

Body

Vertical arm type coarse and fine adjustment coaxial focusing mechanism, bracket lens body integrated, focusing stroke 50mm, fine adjustment accuracy 0.002mm

Light source

Intermediate magnification 1.5X;
with 1/4 λ waveplates, 360-degree rotation;
20W LED cold light source generator with brightness adjustment knob;
with flexible dual optical fibers, length 1m

Base

Ultra-thin base, multiple LEDs (total power 5W), base with color temperature display and brightness display (color temperature range: 3000-5600K)

Optional 1: Flat base, without light source, with φ100 black and white worktable

Optional 2: Base with transmissive oblique illumination (for use with external 5W LED (white light) fiber optic illumination), reflector can be switched 360° rotation (reflective and diffuse surface)Adjustable front and rear position
