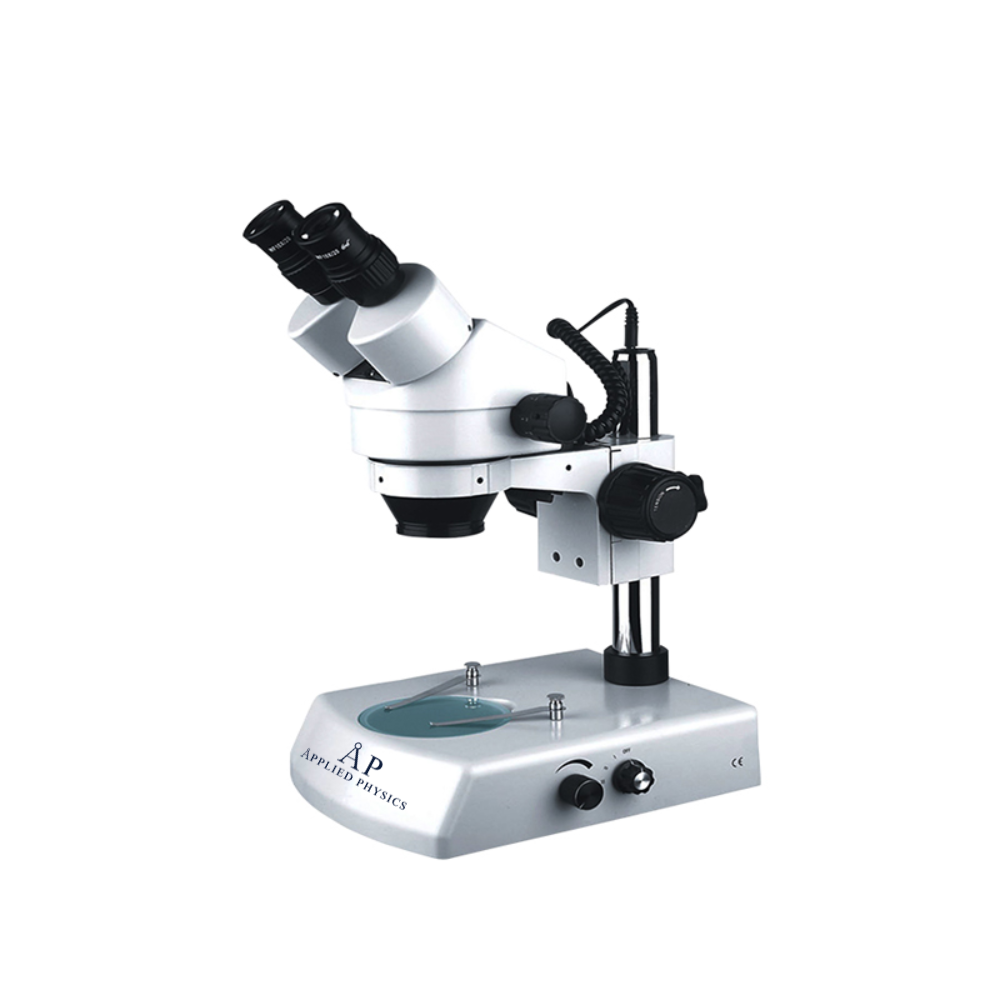

Stereo Zoom Microscope SZM-45 SZM-45T
Stereo Zoom Microscope SZM-45 SZM-45T - Image 2
Stereo Zoom Microscope SZM-45 SZM-45T - Image 3
Stereo Zoom Microscope SZM-45 SZM-45T - Image 4
Stereo Zoom Microscope SZM-45 SZM-45T - Image 5

Stereo Zoom Microscope SZM-45 SZM-45T

Request a Quote

A stereo zoom microscope ‌ is a kind of microscope that provides stereo vision and continuous zoom function, mainly used for observing and studying objects. It combines the features of stereo microscopy and zoom microscopy to provide clear stereoscopic images in three-dimensional space, and the magnification can be continuously changed by adjusting the lens assembly.

SKU: AP-MIC-ST-SZM45 Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description



Technical Parameters:

Model Specification SZM-45 SZM-45T
Observation Head Binocular observation head tilted 45 ° √

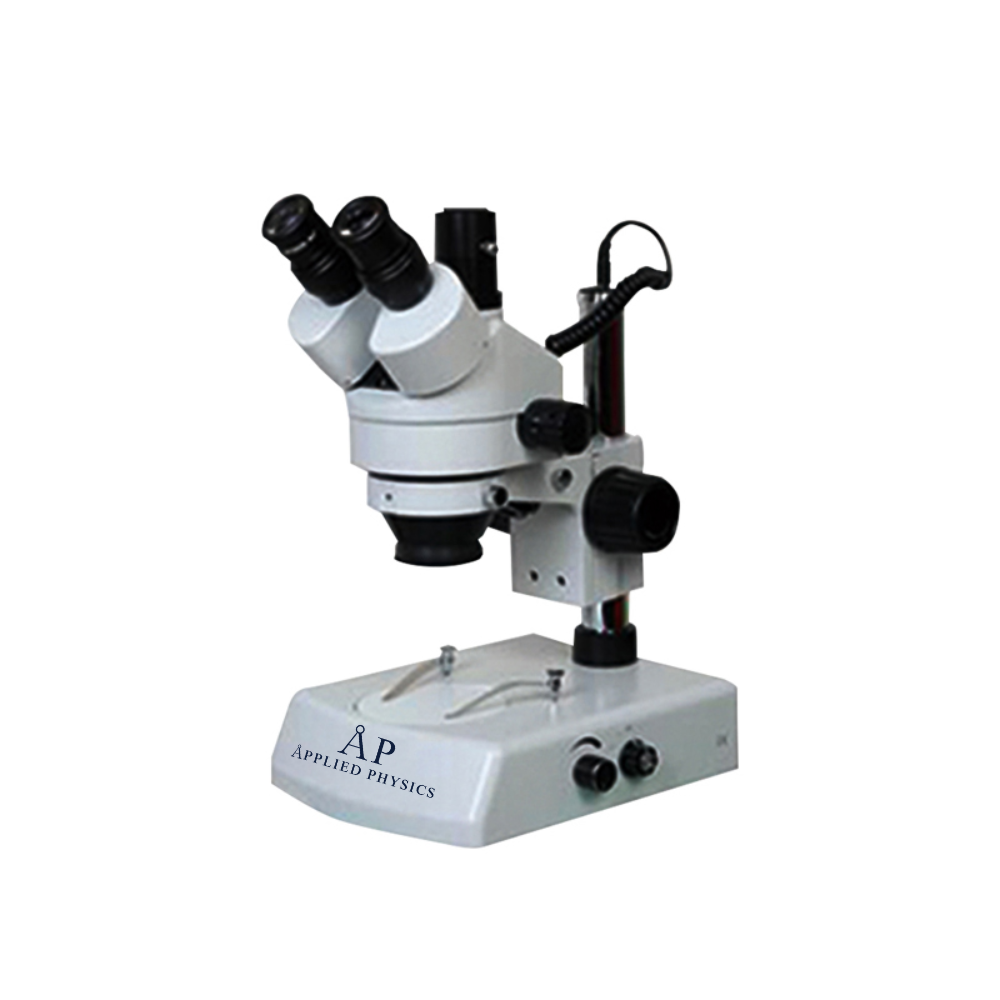

Trinocular body tilted 45° √
Digital stereoscope body 45° tilt
Eyepiece High point wide field of view adjustable eyepiece WF10X √ √
Zoom Objective 0.7X~4.5X √ √
Zoom Ratio 6.4:1 √ √
Working Distance 100mm √ √
Focusing Bracket Focusing frame adjustment knob √ √
Interpupillary Distance 5.4~7.6mm √ √
Uplighting LED lights √ √
Downlighting LED lights √ √
Power Supply AC100~240V, 50/60Hz √ √
Package Foam carton √ √
Packing Size mm 500*260*370
Gross Weight kg 8

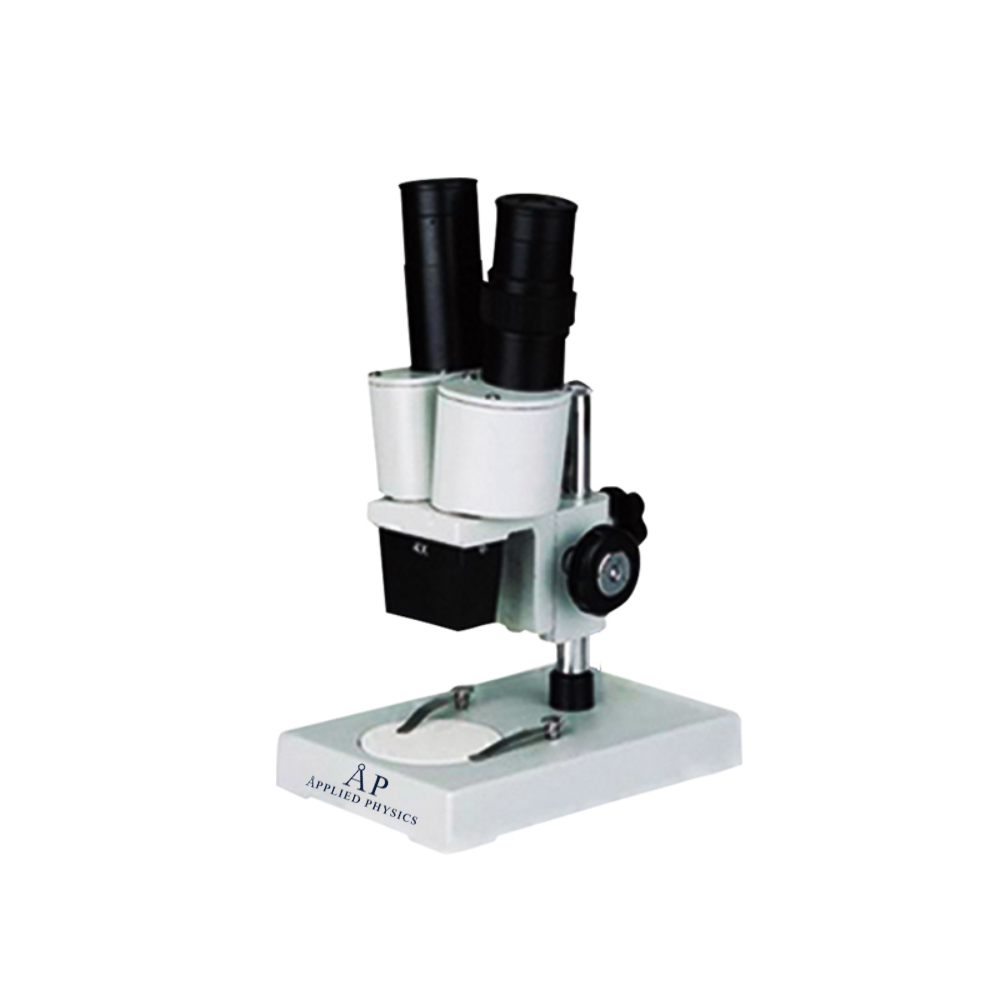

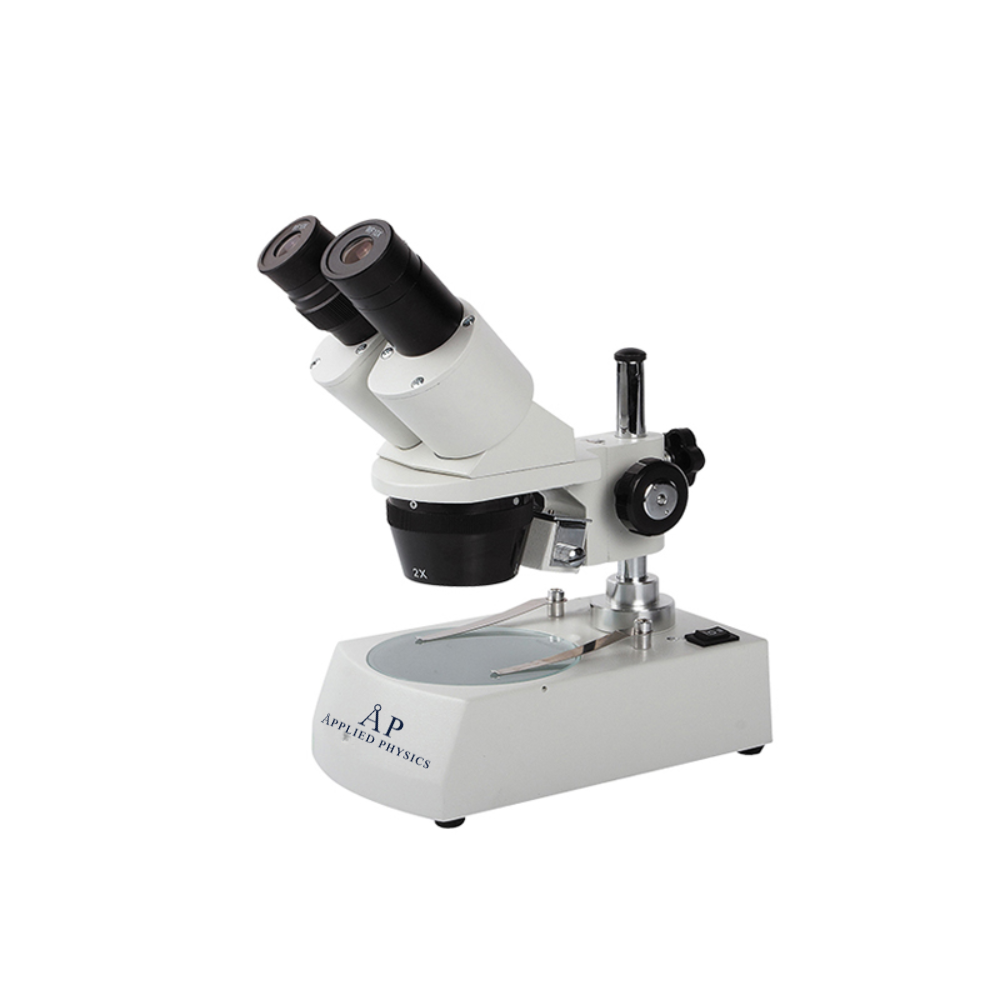

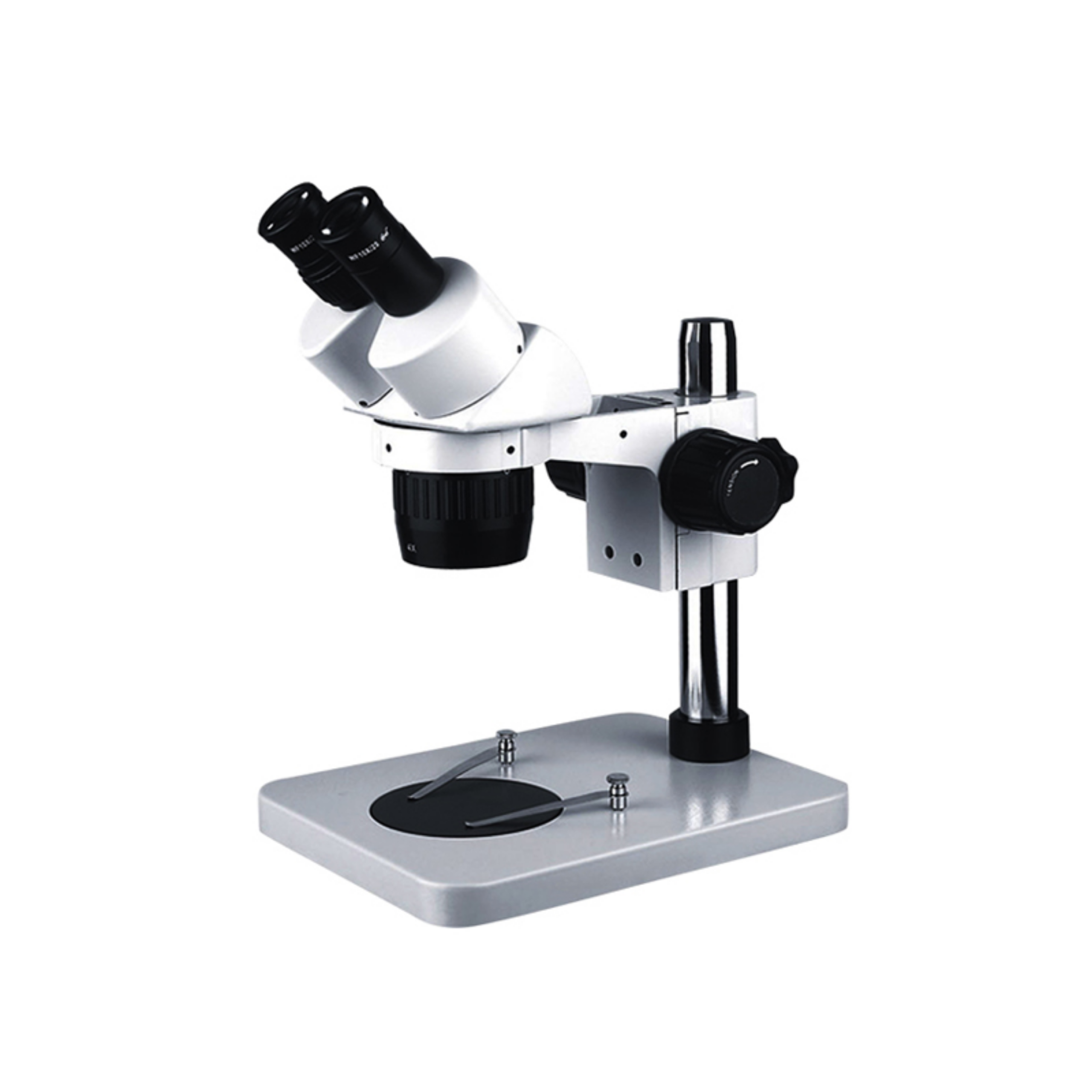

Model ST-20 ST-40 ST-60
Lighting Natural light binocular Transmissive illuminator/oblique light binocular Ring light binocular
Observation Head&Main Body Straight head Tilt observation, rotatable body Tilt viewing body can be rotated 360°
Objective Lens 2X 2X&4X, rotate 90° 2X&4X, 360° rotation
Working Distance 80mm 57mm 100mm
Eyepiece WF10X WF10X
Power Supply / AC100~240V, 50/60Hz
Packing Size 300*200*150mm 360*170*290mm 400*250*360mm
Gross Weight 3kg 6kg 8kg

Additional information

Model

SZM-45, SZM-45T, ST-20, ST-40, ST-60
