Description

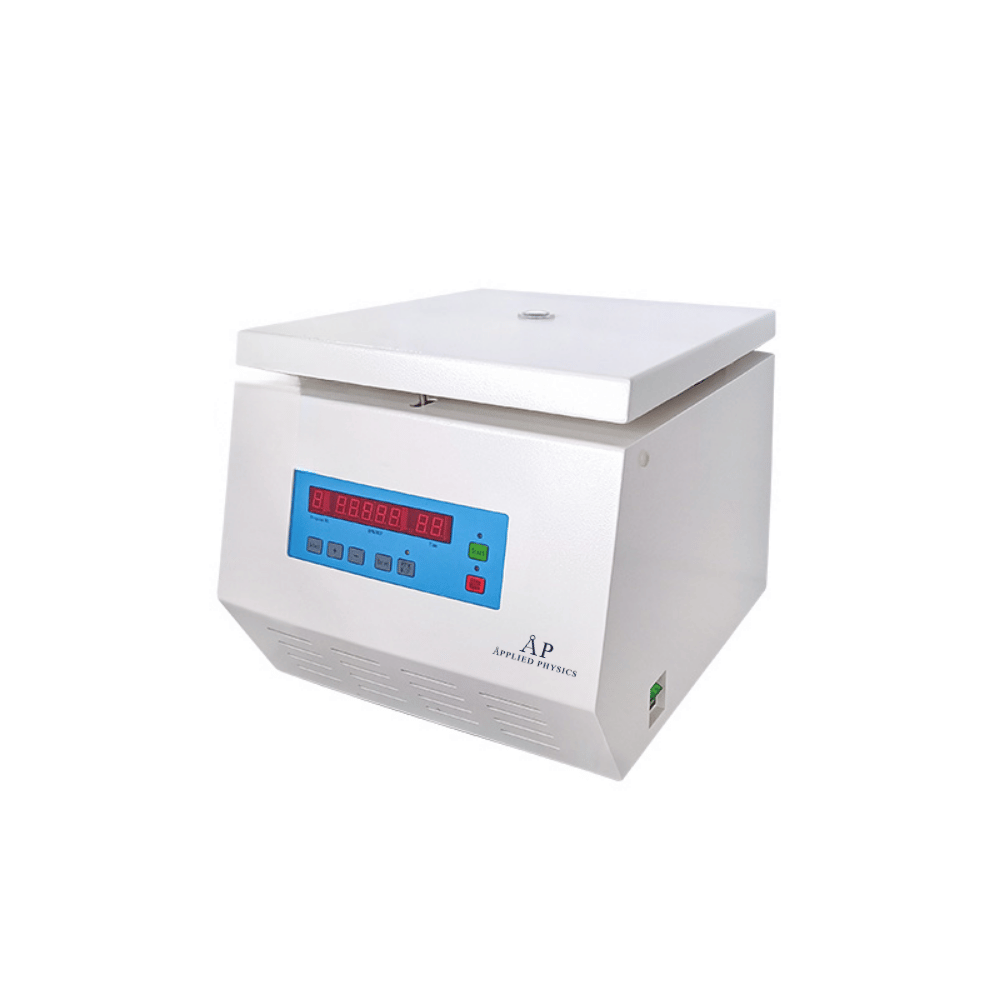

Features for BKC-TH161I:
1. DC Brushless motor with high start torque and frequency inversion for smooth running, maintenance free.
2. Microprocessor control, LED display, Memory flashing function, conversion of RPM/RCF.
3. External cold-rolled steel with powder coating steel, stainless steel centrifugal chamber.
4. Procedures of adjustable speed from grad 0 to 9 and 40 kinds of self-defining models.
5. Functions: Electronic lock lid, imbalance detection, over-speed protection, inching function, short-spin function.
Technical Parameters:
| Model | BKC-TH16II |
| Max. Capacity | 4*100ml |
| Max. Speed | 16600rpm |
| Max. RCF | 19200×g |
| Speed Precision | ±30rpm |
| Timing Range | 0~99min |
| Noise | ≤58dB |
| Power Supply | AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional) |
| External Size(W*D*H) mm | 450*350*360 |
| Package Size(W*D*H) mm | 760*440*530 |
| Net Weight(kg) | 30 |
| Gross Weight(kg) | 60 |
Rotor：
| No. | Rotor | Max. Speed(rpm) | RCF(xg) | Capacity | Dimension of Tube (mm) |
| No.1 | Angle Rotor | 16600 | 19200 | 18*0.5ml | Φ8*32 |
| No.2 | 16600 | 19200 | 12*2.0/1.5ml | Φ10*42 | |
| No.3 | 13000 | 14740 | 48*0.5ml | Φ8*32 | |
| No.4 | 13000 | 16060 | 24*2.0/1.5ml | Φ10*42 | |
| No.5 | 13000 | 11500 | 10*5ml | Φ14*54 | |
| No.6 | 12000 | 14800 | 12*10ml | Φ16*87 | |
| No.7 | 12000 | 14800 | 6*50ml (●) | Φ29*106 | |
| No.8 | 12000 | 14800 | 6*50ml (▲) | Φ29*116 | |
| No.9 | 10000 | 10290 | 12*15ml (▲) | Φ16*102 | |
| No.10 | 10000 | 11200 | 4*100ml | Φ38*119 | |
| No.11 | Micro Plate | 4000 | 2300 | 2*2*48 well | Microplate |
