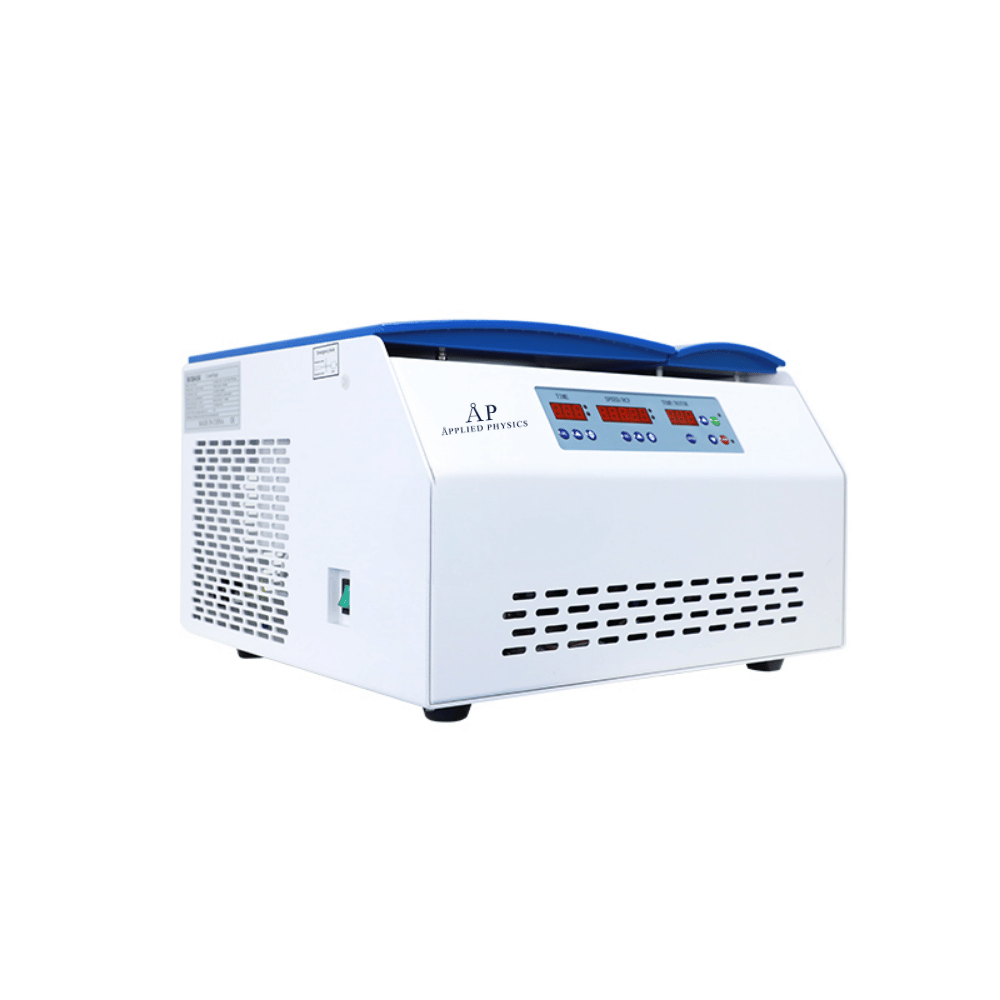

BKC-TH16RE, featuring microcomputer control and a brushless variable frequency motor, is a specialized device for rapid separation of mixed liquids. It is widely used in research, genetic engineering, life sciences, biochemistry and medical facilities. The operation is convenient, with fast cooling speed, making it suitable for experiments that require high centrifugal force, low temperature and small volume separation.
$2,995.00
Features:
1. Embedded microprocessor control, precise control of speed, time, temperature and RCF.
2. The whole machine adopts all-steel body and stainless steel centrifugal chamber.
3. Adopt imported fluorine-free compressor unit.
4. Equipped with door cover protection, over-speed and advanced electronic unbalance detection system.
Technical Parameters:
| Model | BKC-TH16RE(BKC-TL16RE) | BKC-TH16RM |
| Max Speed | 16000rpm | |
| Max RCF | 20878×g | |
| Max Capacity | 12*10ml | 6*100ml |
| Speed Precision | ±1% or ±30rpm | |
| Timing Range | 1s~999min | |
| Temperature Range | -20~40℃ | |
| Noise | ≤65dB | |
| Consumption | 500W | 1000W |
| Power Supply | AC 110~220V, 50/60Hz | |
| External Size (W*D*H) | 560*500*340mm | 600*560*380mm |
| Package Size (W*D*H) | 690*650*570mm | 730*690*610mm |
| Net Weight | 60kg | 76kg |
| Gross Weight | 71kg | 86.5kg |
BKC-TH16RE Rotor:
| No. | Rotor | Capacity | Max Speed (rpm) | Max RCF (×g) | Adapter |
| No.1 | Angle Rotor | 30*0.5ml | 15000 | 18620 | / |
| No.2 | 40*0.5ml | 14000 | 19970 | / | |
| No.3 | 12*1.5/2ml | 16000 | 17750 | 12*0.5ml,
12*0.2ml |
|
| No.4 | 20*1.5/2ml | 15000 | 17860 | 20*0.5ml,
20*0.2ml |
|
| No.5 | 24*1.5/2ml | 15000 | 20878 | 24*0.5ml,
24*0.2ml |
|
| No.6 | 30*1.5/2ml | 13500 | 18950 | 30*0.5ml,
30*0.2ml |
|
| No.7 | 48*1.5/2ml | 11000 | 12720 | 48*0.5ml,
48*0.2ml |
|
| No.8 | 10*5ml | 16000 | 17800 | / | |
| No.9 | 12*10ml | 12000 | 14510 | / |
BKC-TH16RM Rotor:
| No. | Rotor | Capacity | Max Speed (rpm) | Max RCF (×g) | Adapter |
| No.1 | Angle Rotor | 30*0.5ml | 15000 | 18620 | / |
| No.2 | 40*0.5ml | 14000 | 19940 | / | |
| No.3 | 12*1.5/2ml | 16000 | 17750 | 12*0.5ml,
12*0.2ml |
|
| No.4 | 20*1.5/2ml | 15000 | 17860 | 20*0.5ml,
20*0.2ml |
|
| No.5 | 24*1.5/2ml | 15000 | 20878 | 24*0.5ml,
24*0.2ml |
|
| No.6 | 30*1.5/2ml | 13500 | 18950 | 30*0.5ml
30*0.2ml |
|
| No.7 | 48*1.5/2ml | 11000 | 12720 | 48*0.5ml,
48*0.2ml |
|
| No.8 | 10*5ml | 16000 | 17800 | / | |
| No.9 | 6*10ml | 12000 | 14000 | / | |
| No.10 | 12*10ml | 12000 | 14510 | / | |
| No.11 | 6*50ml | 10000 | 11140 | / | |
| No.12 | 6*50ml(▲) | 10000 | 11140 | / | |
| No.13 | 6*100ml | 8000 | 7283 | / | |
| No.14 | 4*8PCR | 14000 | 13720 | / |
| Model | BKC-TH16RE(BKC-TL16RE), BKC-TH16RM |
|---|
