Description

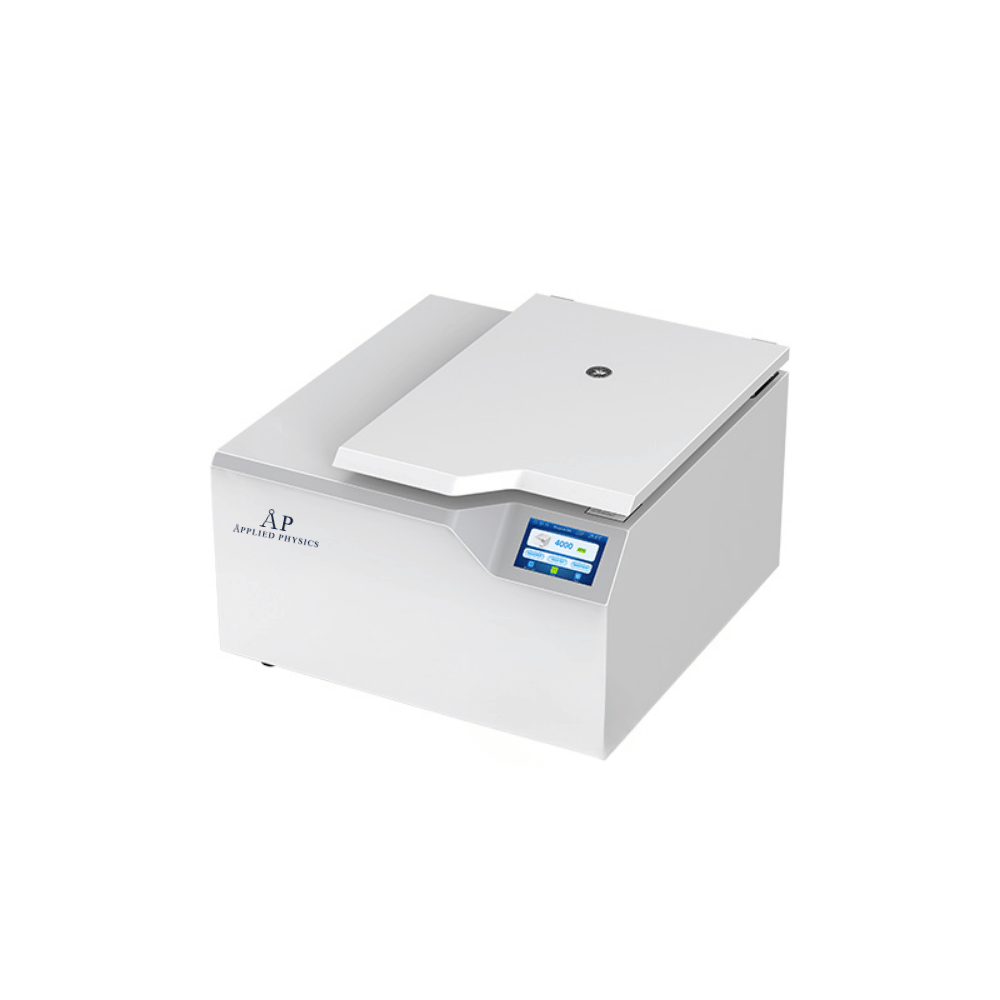

Features: 1. Whole metal structure and multi-layer explosion-proof, safe, durable, to ensure the safety of operators. 2. Embedded microprocessor control, DC brushless motor drive, maintenance-free, stable operation. 3. 5-inch LCD touch screen, supporting switching between Chinese and English and other languages can be customized. 4. Real-time display of all parameters, the operation interface is intuitive and simple. 5. Electromechanical integration door lock, safe and reliable. 6. Integral food-grade silicone sealing ring is used to avoid aerosol overflow and ensure the safety of operator. 7. Adopts CFC-free compressor unit and environmentally friendly refrigerant R404a, with a wide temperature range: -20℃~40 ℃, temperature adjustable during running. With refrigeration function, quickly lower the temperature the setting temperature. With standby cooling function, the set temperature can be maintained in standby state. 8. With self-test, blocking, overspeed, overtemperature and other alarm functions, excellent shock-absorb, the motor runs smoothly. 9. Multiple groups of user-defined programs, easy to use common programs, boot for the last program. 10. Equipped with a variety of angle rotors(aviation forged aluminum) and varieties of adapters, suitable for 0.1ml~10ml centrifugal tube(BKC-TH16RB) and 0.1ml~100ml centrifugal tube(BKC-TH16RC-I), according to actual needs, to achieve a multi-purpose machine. 11. Optional automatic rotor recognition. Technical Parameters:
| Model | BKC-TH16RC-I | BKC-TH16RB |
| Max. Speed | 16500rpm | |
| Speed Accuracy | ±20 rpm | |
| Max. Speed | 23072×g | |
| Max. Volume | 4*100ml | 12*10ml |
| Refrigeration System | CFC-free compressor, R404a | |
| Timing Range | 1s~99h59min/Continuous/Short-span | |
| Temp. Range | -20℃～+40℃ | |
| Temp. Accuracy | ±1℃ | |
| Noise | ≤65dB | |
| Power Supply | Standard: AC220V, 50/60Hz Optional: AC110V, 50/60Hz | |
| External Size(L*W*H) | 606*572*361mm | |
| Package Size(L*W*H) | 700*670*670mm | |
| Net Weight | 62kg | |
| Gross Weight | 70kg(220V),75kg(110V) | |
Rotors for BKC-TH16RC-I:
Rotors for BKC-TH16RB:

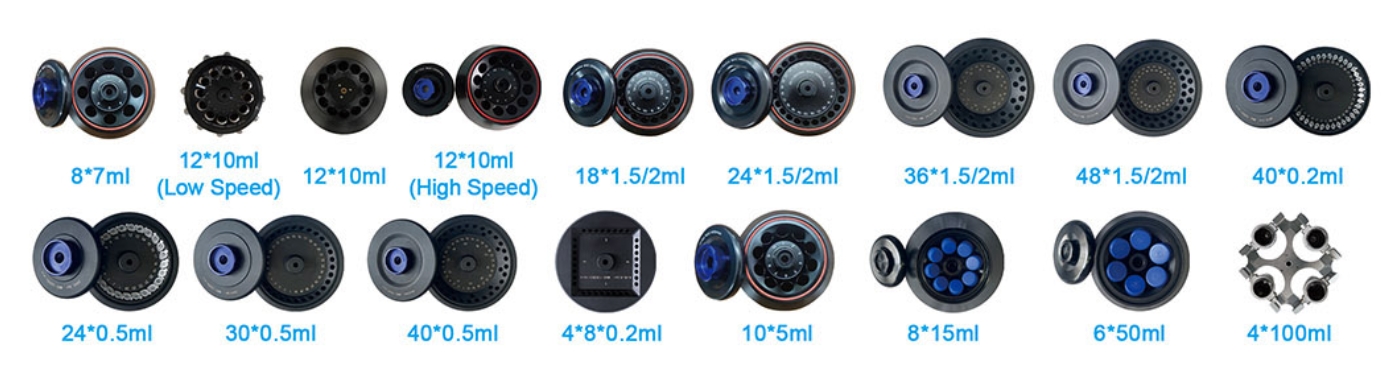

| NO. | Rotors Type | Volume | Max. Speed(rpm) | Max. RCF(xg) | Adapters |
| 16M0003 | Angel Rotor | 8*7ml | 14000 | 16435 | / |
| 16M0004 | 12*10/15ml(Low speed) | 6000 | 3743 | 2/3/4ml blood collection tube, 5/7ml blood collection tub,15ml(▲) | |
| 16M0005 | 12*10ml(High speed) | 12000 | 14328 | 1.5/2ml，5ml | |
| 16M0006 | 12*1.5/2ml | 16500 | 19176 | 0.2ml, 0.5ml | |
| 16M0007 | 18*1.5/2ml | 15000 | 18866 | 0.2ml, 0.5ml | |
| 16M0008 | 24*1.5/2ml | 14000 | 19722 | 0.2ml, 0.5ml | |
| 16M0009 | 10*5ml | 14000 | 15339 | 1.5/2ml | |
| 16M0085 | 40*0.2ml | 16500 | 23072 | / | |
| 16M0086 | 24*0.5ml | 16500 | 21306 | / | |
| 16M0087 | 30*0.5ml | 13000 | 15210 | / | |
| 16M0088 | 40*0.5ml | 13000 | 15267 | / | |
| 16M0089 | 4*8*0.2ml pcr | 13000 | 11941 | / | |
| 16M0020 | Swing Rotor | 24 Capillaries | 12000 | 14170 | / |
| 16M0062 | 8*10/15ml | 4000 | 2522 | 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲) |
