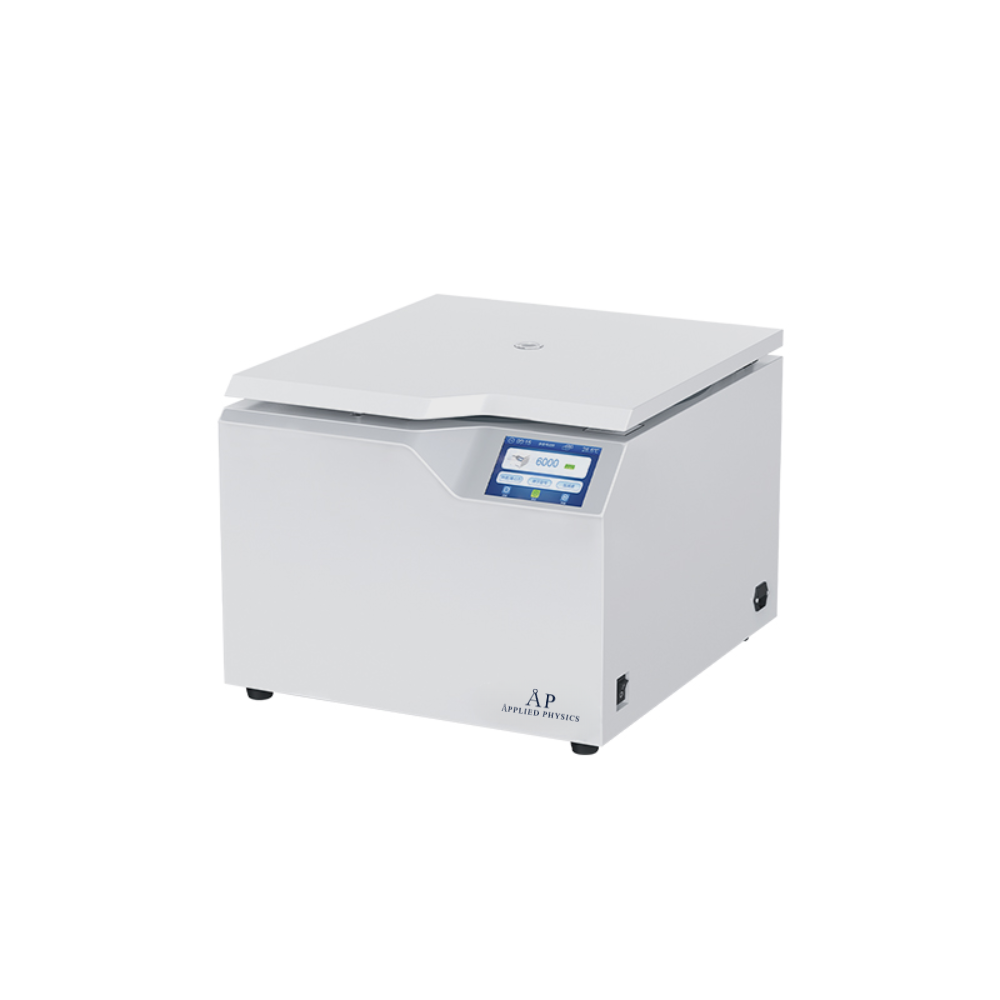

Table Top Low Speed Centrifuge BKC-TL6B

Description

Table Top Low Speed Centrifuge BKC-TL6B

Features:

1. Whole metal structure and multi-layer explosion-proof, safe, durable, to ensure the safety of operators.

2. Embedded microprocessor control, DC brushless motor drive, maintenance-free, good shock-absorbing, stable operation.

3. 5-inch LCD touch screen, supporting Chinese and English switching function, minority language can be customized, real-time display of all parameters, the operation interface is intuitive and simple.

4. Electromechanical integration door lock, safe and reliable.

5. Integral food-grade silicone sealing ring is used to avoid aerosol overflow and ensure the safety of operator.

6. With self-test, blocking, overspeed, overtemperature and other alarm functions, excellent shock-absorb, the motor runs smoothly.

7. 100 groups of user-defined programs, easy to use common programs, boot for the last program.

8. 20 kinds of Acc/Dec rates are optional, the Acc/Dec rate is fast.

9. Equipped with a variety of angle rotors and adapters, suitable for 0.2ml-300ml centrifugal tubes, according to actual needs, to achieve a multi-purpose machine.

10. Optional automatic rotor recognition.

Technical Parameters:

Model

BKC-TL6B

Max. Speed

6000rpm

Speed Accuracy

±10rpm

Max. RCF

5111×g

Max. Volume

4*300ml

Timing Range

1s~99h59s/Continuous/Short-span

Noise

≤60dB

Power Supply

Standard: AC220V, 50/60Hz

Optional: AC110V, 50/60Hz

External Size(L*W*H)

430*565*410mm

Package Size(L*W*H)

596*736*650mm

Net Weight

43kg

Gross Weight

55kg(220V), 60kg(110V)

Rotors:

NO.

Rotors Type

Volume

Max. Speed(rpm)

Max. RCF(×g)

Adapters

5M00024

Swing Rotor

48*2/3/4/5/7ml

4000

2952

/

5M00025

48*5/7ml

4000

2952

2/3/4ml blood collection tube

5M00026

72*2/3/4/5/7ml

4000

2808

/

5M00029

16*10/15ml

4000

2957

2/3/4ml blood collection tube,  5/7ml blood collection tube, 15ml(▲)

5M00030

24*10/15ml

4000

2957

5M00031

32*10/15ml

4000

2952

5M00032

4*50ml

4500

3962

50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5ml/2ml

5M00033

8*50ml

4000

2952

5M00034

4*100ml

4500

3962

16*2/3/4ml blood collection tube, 16*5/7ml blood collection tube

5M00036

8*100ml

4000

3077

32*2/3/4ml blood collection tube, 32*5/7ml blood collection tube

5M00038

4*250ml(flat bottom)

4000

2780

48*1.5/2ml, 40*2/3/4/5/7ml blood collection tube, 48*2/3/4/5/7ml blood collection tube, 24*10ml(▲), 28*10ml, 20*15ml, 4*50ml(▲), 8*50ml(●)，4*100ml

5M00053

4*250ml(biosafety)

4000

3041

5M00058

4*300ml

4000

3220

/

5M00045

Swing Microplate Rotor

2*2*96 well

4000

2361

/

5M00072

Angle Rotor

12*20ml

5000

3516

15ml, 10ml, 5ml, 1.5/2ml

5M00073

12*15ml

5000

3354

1.5/2ml, 2/3/4ml blood collection tube

5M00074

8*15/20ml

5000

2655

5M00075

24*10ml

5000

3354

1.5/2ml, 2/3/4ml blood collection tube

5M00076

18*10ml

5000

3354

5M00077

12*10ml

5000

3354

5M00083

12*10/15ml

6000

5111

2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)

5M00069

24*10/15ml

5031

5M00084

6*50ml

3904

50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5ml/2ml

Note: With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube.
