Description

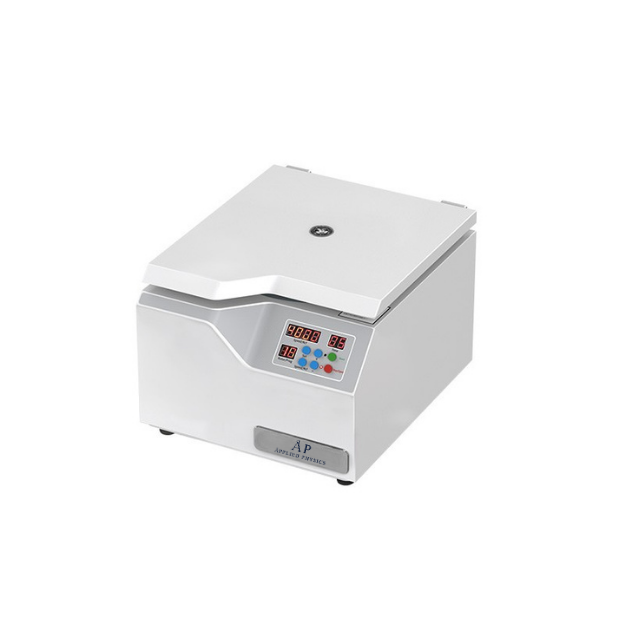

CGF Dental Centrifuge with multiple functions, can respectively prepare CGF, A-PRF, PGRF, i-PRF. The operation is simple, take venous blood into the centrifuge, then press the corresponding button to call the program group for automatically completing. It is a special centrifuge developed for dental implant, bone defect, beauty anti-aging and other fields.
Features:
1. Designed for oral clinical and cosmetic fields, it has good vibration reduction effect due to the use of special vibration dampers.
2. 4 centrifugal programs are preset, and users can call them with one key and store multiple user-defined programs, which is convenient for calling common programs and starting the machine with the last program.
3. Food-grade silicone integral sealing ring to prevent aerosol spillage and ensure the safety of staff.
4. Alarm detection function, real-time detection of door locks and motor status, safe and reliable operation.
5. Microcomputer control, DC brushless motor drive, large torque, fast lifting speed, no carbon powder pollution, maintenance-free.
6. Simple shape, with the advantages of small size, low noise, small temperature rise, high efficiency, safety and reliability.
7. Optional automatic rotor recognition.
Technical Parameters:
|
Model |
BKC-TL4V |
|
Max. Speed |
4000rpm |
|
Max. RCF |
2250×g |
|
Max. Volume |
12*20ml |
|
Timing Range |
1s~99min |
|
Speed Accuracy |
±10 r/min |
|
Noise |
≤60dB |
|
Power Supply |
AC220V, 50/60Hz(standard); AC110V, 50/60Hz(optional) |
|
External Size(L*W*H) |
340*430*278mm |
|
Packing Size(L*W*H) |
460*546*460mm |
|
Net Weight |
20kg |
|
Gross Weight |
24kg |

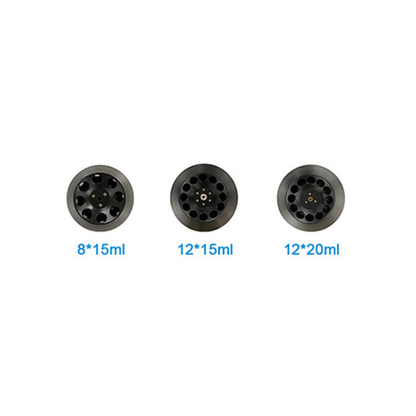

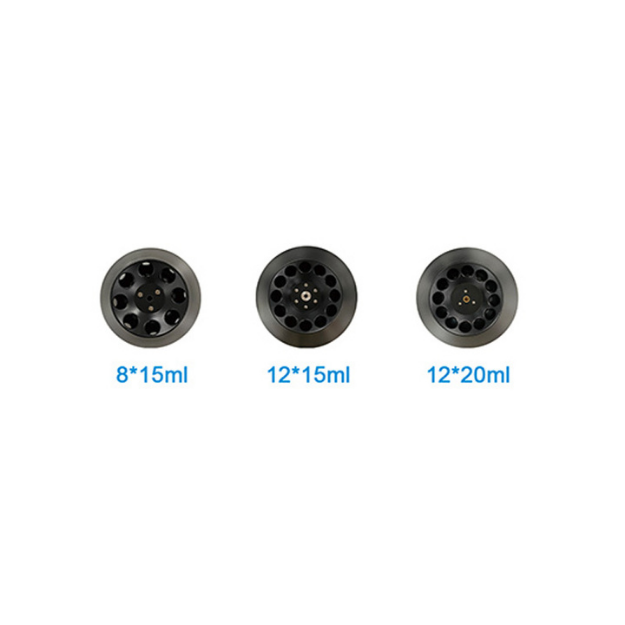

Rotors:
|
Rotor NO. |
Capacity |
Max Speed(rpm) |
Max RCF(×g) |
Adapter |
|
4M0016 |
12*5/7ml |
4000 |
1681 |
2/3/4ml vacuum blood tube |
|
4M0017 |
30*5/7ml |
2039 |
||
|
4M0018 |
6*10ml |
1880 |
1.5/2ml, 2/3/4ml vacuum blood tube |
|
|
4M0006 |
24*10ml |
1880 |
||
|
4M0005 |
8*15ml |
1700 |
10ml, 5ml, 1.5/2ml |
|
|
4M0004 |
12*15ml |
2147 |
||
|
4M0019 |
8*20ml |
1840 |
15ml, 10ml, 5ml, 1.5/2ml |
|
|
4M0003 |
12 *20ml |
2250 |
Note: The default is round-bottom tube
|
Speed Shift Program Group |
A |
|||
|
Speed Shift Program |
CGF-S1 |
CGF-S1 |
CGF-S1 |
CGF-S1 |
|
Speed(rpm) |
2600 |
2300 |
2600 |
2850 |
|
Centrifuge Time(min) |
2 |
4 |
4 |
3 |
|
Fixed Speed Program Group |
b |
C |
d |
|
|
Fixed Speed Program |
A-PRF-S2 |
i-PRF-S3 |
PGRF-S4 |
|
|
Speed(rpm) |
2450 |
2850 |
3100 |
|
|
Centrifuge Time(min) |
4 |
4 |
3 |
|
