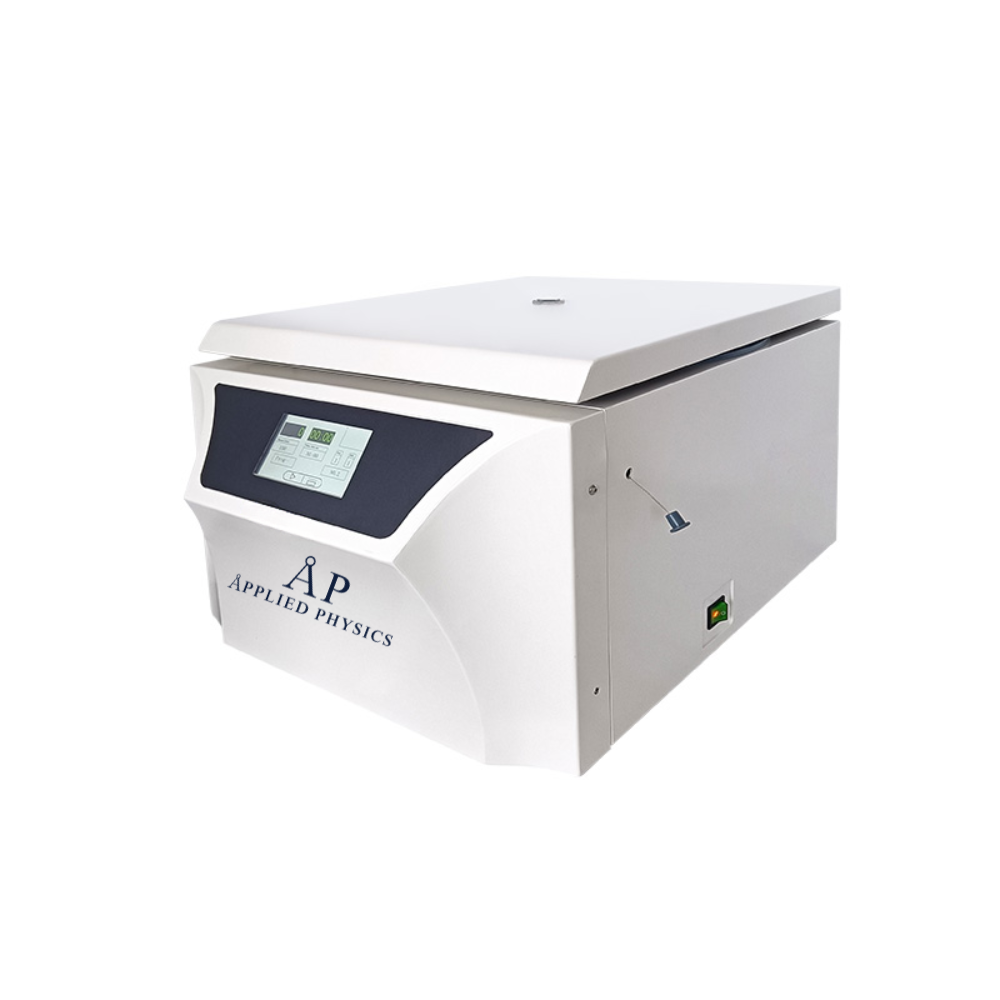

Table Top Low Speed Large Capacity Centrifuge BKC-TL5LII
Table Top Low Speed Large Capacity Centrifuge BKC-TL5LII - Image 2

Table Top Low Speed Large Capacity Centrifuge BKC-TL5LII

Low speed large capacity centrifuges utilize the principle of accelerated sedimentation in centrifuges to separate, concentrate or purify cells(particles) of different densities in a solution under the action of centrifugal force(field). It is suitable for qualitative analysis of serum, plasma and urea in blood stations, clinical trials and biochemical laboratories.

$0.00

SKU AP-CEN-TL5L-LS Categories , Tag

Description

Features:

1. 5-inch high-definition touch screen, easily operated, visual display.

2. Automatically identify 4 kinds of different rotors, eliminate hidden danger brought by users’ maloperation.

3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect.

4. Available to store 20 series of procedure for users to adjust.

5. AC frequency conversion motor, high precision of rotary speed control.

6. Diverse protection setting: overspeed, door protection, imbalance protection, to ensure safety of both human and machine.

7. Free conversion between rotary speed and centrifugal force.

Technical parameter：

Model BKC-TL5LII
Max. Speed 5500rpm
Max. RCF 4390×g
Max. Capacity 4*750mL
Motor AC frequency conversion motor
Speed Accuracy ±20r/min
Time Range Centrifugal time:1min～99 min59sec

Continuous centrifuge: Hold
Power Supply AC220±22V 50/60Hz (Standard);

AC110V 60Hz (Optional)
Noise < 65dB(A)
External Size(W*D*H) mm 458*620*380
Packing Size(W*D*H) mm 800*520*570
Net Weight(kg) 55
Gross Weight(kg) 80

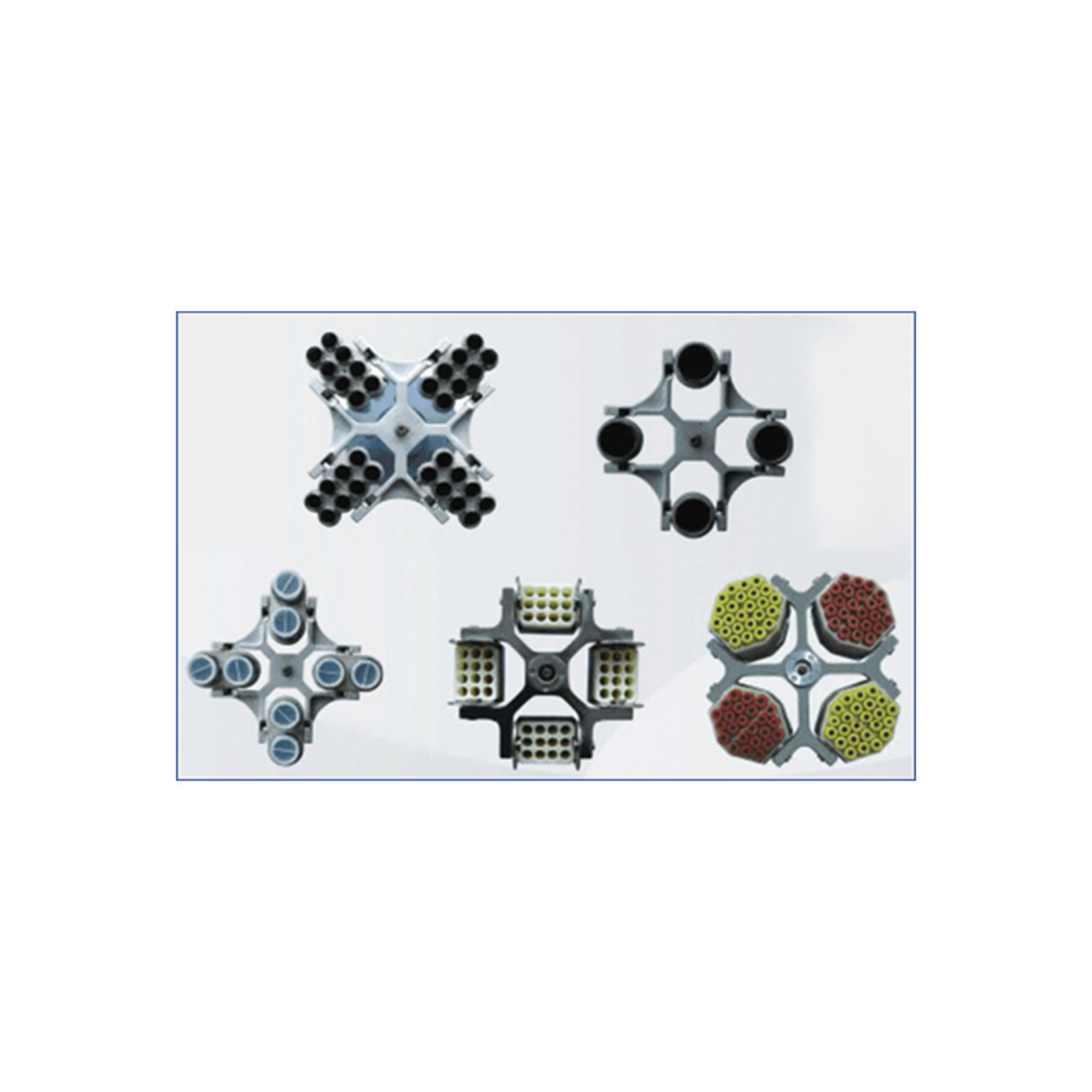

Rotor：

No. Rotor Max. Speed(rpm) RCF (xg) capacity Dimension of Tube (mm)
NO.1 Angle Rotor 5500 4390 12*10ml Φ16*83
NO.2 Angle Rotor 5500 4390 12*15ml Φ17*121
NO.3 Swing Rotor / / Support /
Tube Rack 5000 4390 4*100ml Φ38*116
4000 2810 4*2*100ml Φ38*116
4*4*10ml Φ16*106
4*6*10ml Φ16*106
4*8*10ml Φ16*106
4*4*15ml(▲/●) Φ16*120
4*6*15ml(▲/●) Φ16*120
4*8*15ml(▲/●) Φ16*120
5000 4390 4*50ml(▲/●) Φ29*116
4000 2180 4*2*50ml(▲/●) Φ29*116
NO.4 Swing Rotor 4200 3500 4*250ml Φ62*126
Adapter 4200 3500 4*8*5ml /
4*8*7ml /
4*7*10ml /
4*6*15ml /
4*2*50ml(●) /
4*1*50ml(▲) /
4*100ml /
NO.5 Swing Rotor 4000 3040 4*500ml Φ80*137
Adapter 4000 3040 4*15*5ml /
4*15*7ml /
4*12*10ml /
4*8*15ml(▲) /
4*4*50ml(▲/●) /
4*2*100ml /
4*250ml /
NO.6 Swing Rotor 4000 3180 4*750ml Φ99*137
NO.7 Swing Rotor 4200 3500 4*12*7/5ml Φ13*100/90
NO.8 Swing Rotor 4000 3040 4*24*7/5ml Φ13*100/90
NO.9 Microplate Rotor 4000 2000 2*2*48well Microplate
NO.10 Microplate Rotor 4200 2360 2*2*96well Microplate
