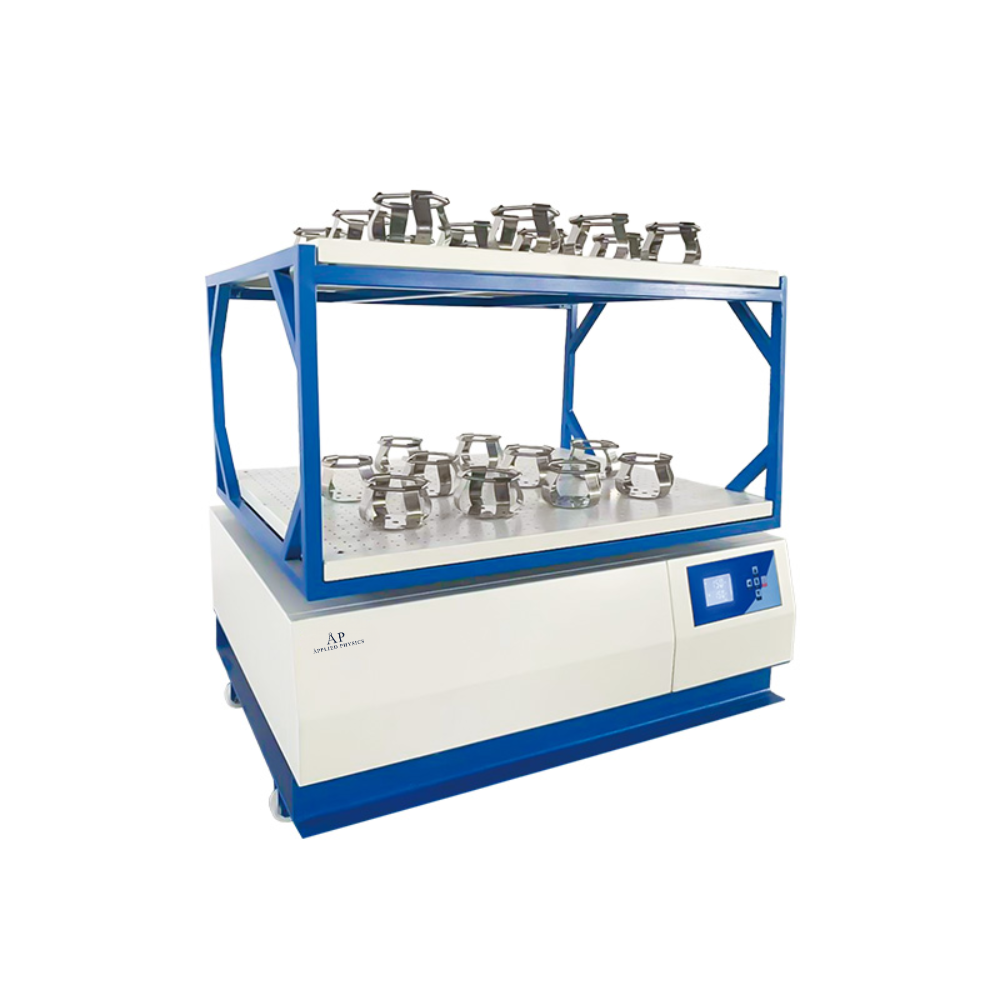

Table Top Shaker SK-852 SK-872 SK-882F

Description

Table Top Shaker SK-852 SK-872 SK-882F

Features:

1. Ultra-low speed start function, the start speed is adjustable.

2. Restore function after power on.

3. Equipped with high-quality servo motor, the control speed is accurate, the high and low speed performance is good, and the stability is strong.

4. The speed-up control circuit is adopted to start slowly and accelerate steadily to ensure the safety of experimental samples.

5. Open-type oscillation equipment, used for centralized temperature control within the same controlled greenhouse.

Technical Parameters:

Model

SK-852

SK-872

SK-882F

Oscillation Mode

Rotatory shaking

Reciprocating shaking

Speed Range

20~300rpm

20~300rpm

20~260rpm

Speed Accuracy

±1rpm

Amplitude

Φ50mm

Φ26mm

0~50mm

Controller

PID

Display

LCD

Timing Range

0~9999h/min

Circulation Mode

Natural convection

Drive Mode

Multi-dimensional drive

Tray Size

800*600mm

950*730mm

800*600mm

Tray Quantity

2pcs

Standard Capacity(Flask Clamps Qty)

250ml*46&1000ml*18

250ml*71&1000ml*30

250ml*46&1000ml*18

Optional Flask Clamps

100ml*132 or

250ml*96 or

500ml*66 or

1000ml*40

250ml*160 or

500ml*106 or

1000ml*60 or

2000ml*40 or

3000ml*24

250ml*96 or

500ml*66 or 1000ml*40 or

100ml*132

Optional Sticky Board

250ml*96 or 500ml*64 or 1000ml*40

250ml*142 or 500ml*106 or 1000ml*60 or 2000ml*40 or 3000ml*24

250ml*96 or 500ml*64 or 1000ml*40

External Material

Cold-rolled steel with anti-bacterial powder coating

Consumption

200W

300W

200W

Power Supply

220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional)

External Size(W*D*H)

900*650*900mm

1040*760*1050mm

900*650*900mm

Net Weight

250kg

380kg

280kg

Packing Size(W*D*H)

1110*800*1155mm

Gross Weight

270kg

420kg

300kg
