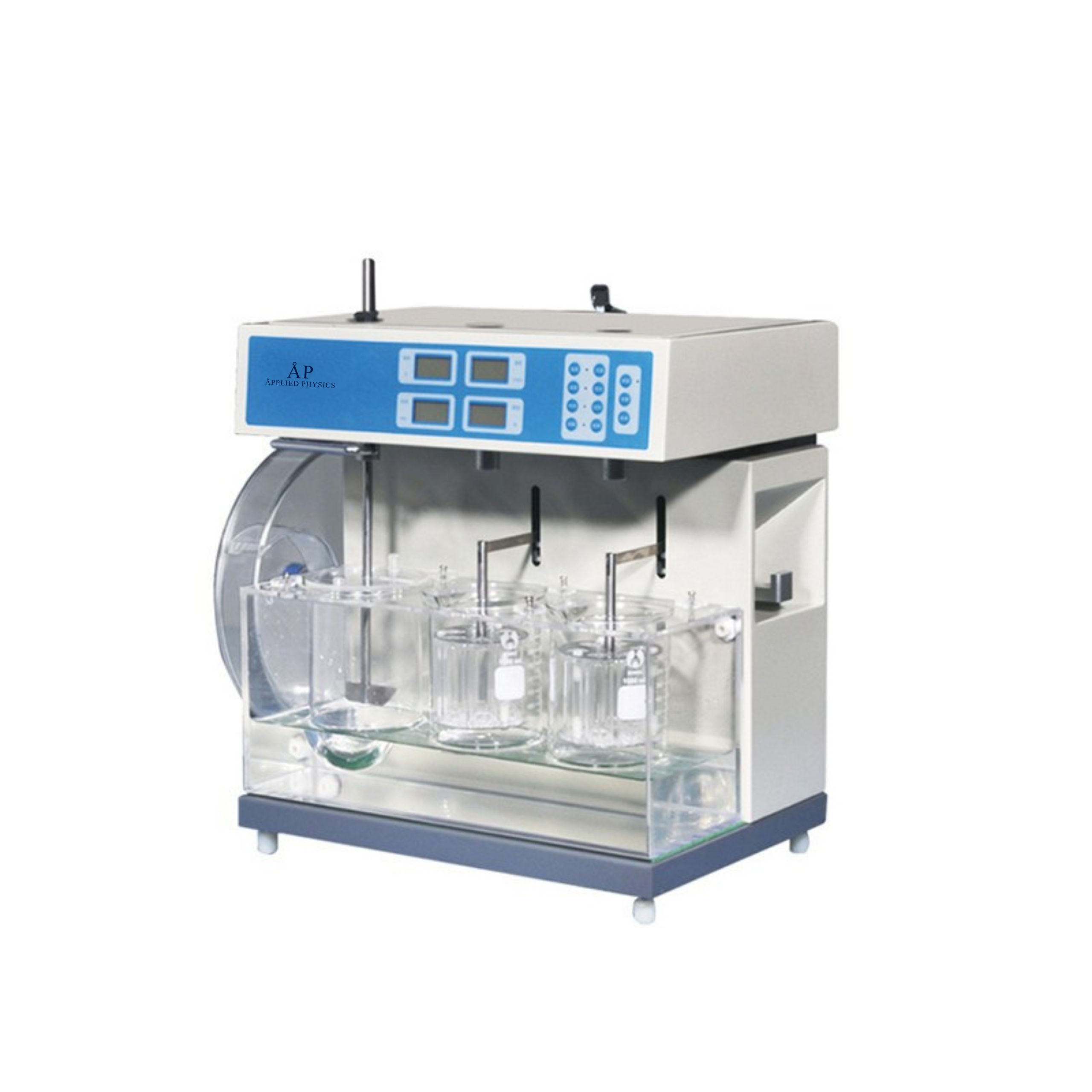

Tablet Four-usage Tester TFUT-3

Tablet Four-usage Tester TFUT-3 Features: 1. It tests clarity of injection and bottled medicine liquid. 2. Auto-control, auto-detection, auto-diagnosis and auto-alarm. 3. Auto-temperature control and high temperature control precision. 4. Auto-time control and auto-timing shutdown. 5. Auto-display, auto-latching, auto-reset and auto-cyclic test. 6. Automatic control of friability and high control precision for cylinder rotation speed and number of turns. 7. Hardness high-precision pressure sensor, digital display of hardness value. 8. Continuous measurement of tablet hardness value, manual tablet feeding, motor control and automatic compression. 9. Two-path disintegration operates at the same time, automatic timing shutdown. 10. Imported SUS316 stainless steel is adopted for dissolution rotation baskets and paddle rods, etc. Technical Parameters: Model TFUT-3 Temperature Range (20~40°C)±0.3°C Speed Range (20~200rpm)±2rpm Automatic Time Range (1~900min)±0.5min Stations of Dissolution 3 Paddle Radial Run-out ±0.5mm Basket Radial Run-out ±1.0mm Basket Assemblies 2 Nacelle Back and Forth Frequency (30~32)times/min Nacelle Back and Forth Range (55±2)mm Drum 1 Drum’s Inner Size φ286*H39mm Tablet Fall Height 156mm Rotating Speed (25±1 )times/min Rotating Count (100±1)turns Hardness Range (25~199)±1N Diameter Range (3~40)mm Power Supply AC110/220V±10%, 50/60Hz Dimensions(W*D*H)mm 520*380*470 Packing Size(W*D*H)mm 700*440*680 Gross Weight(kg) 45
