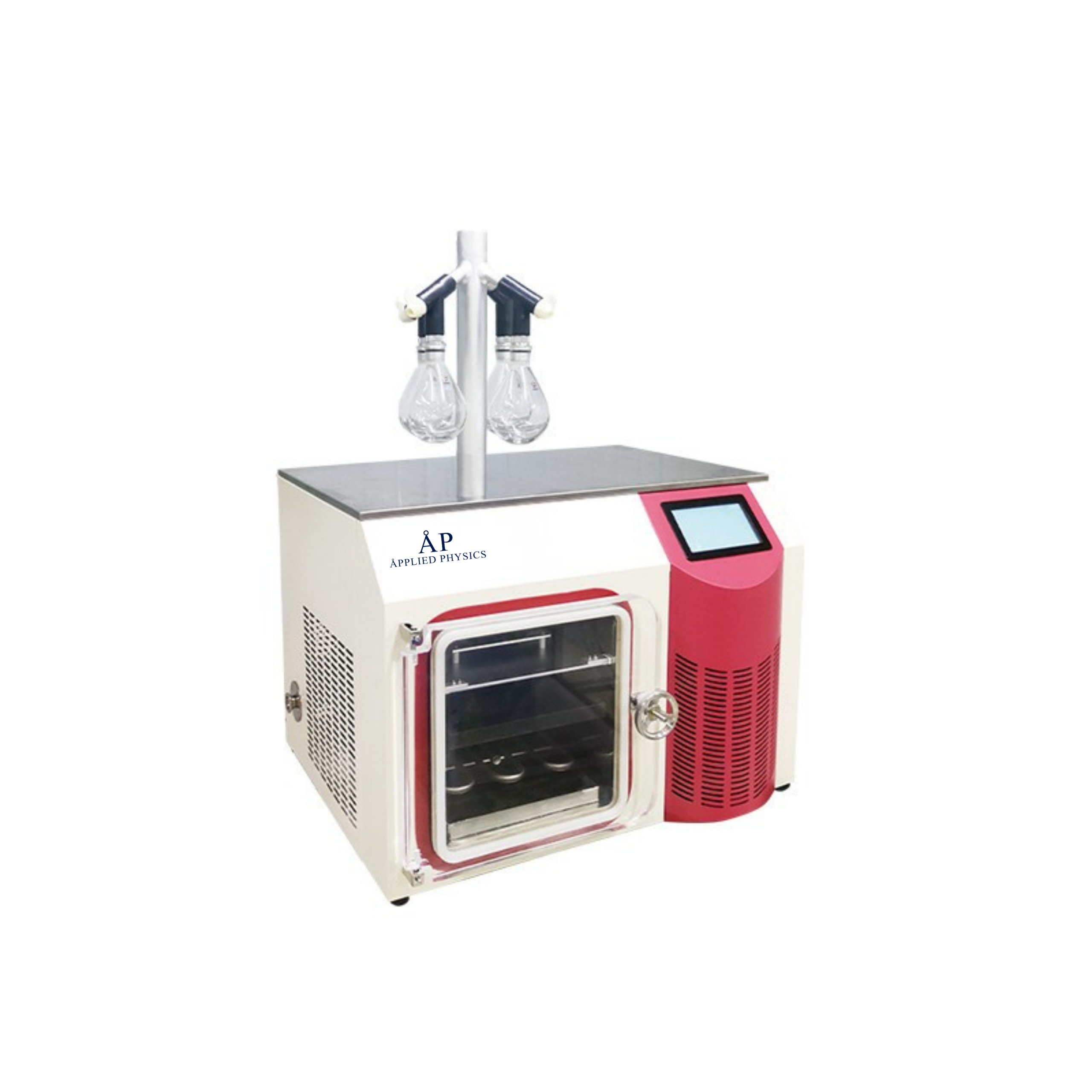

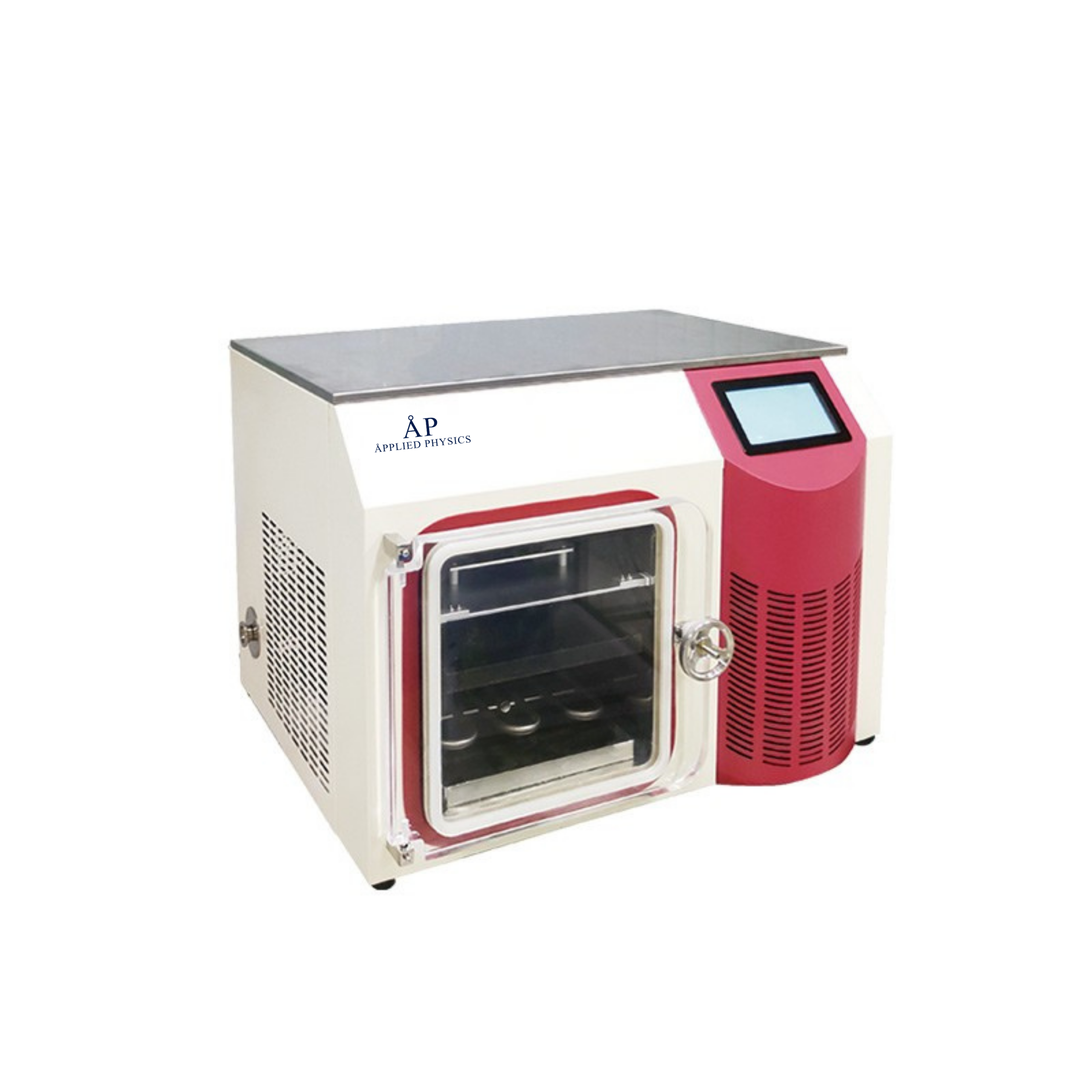

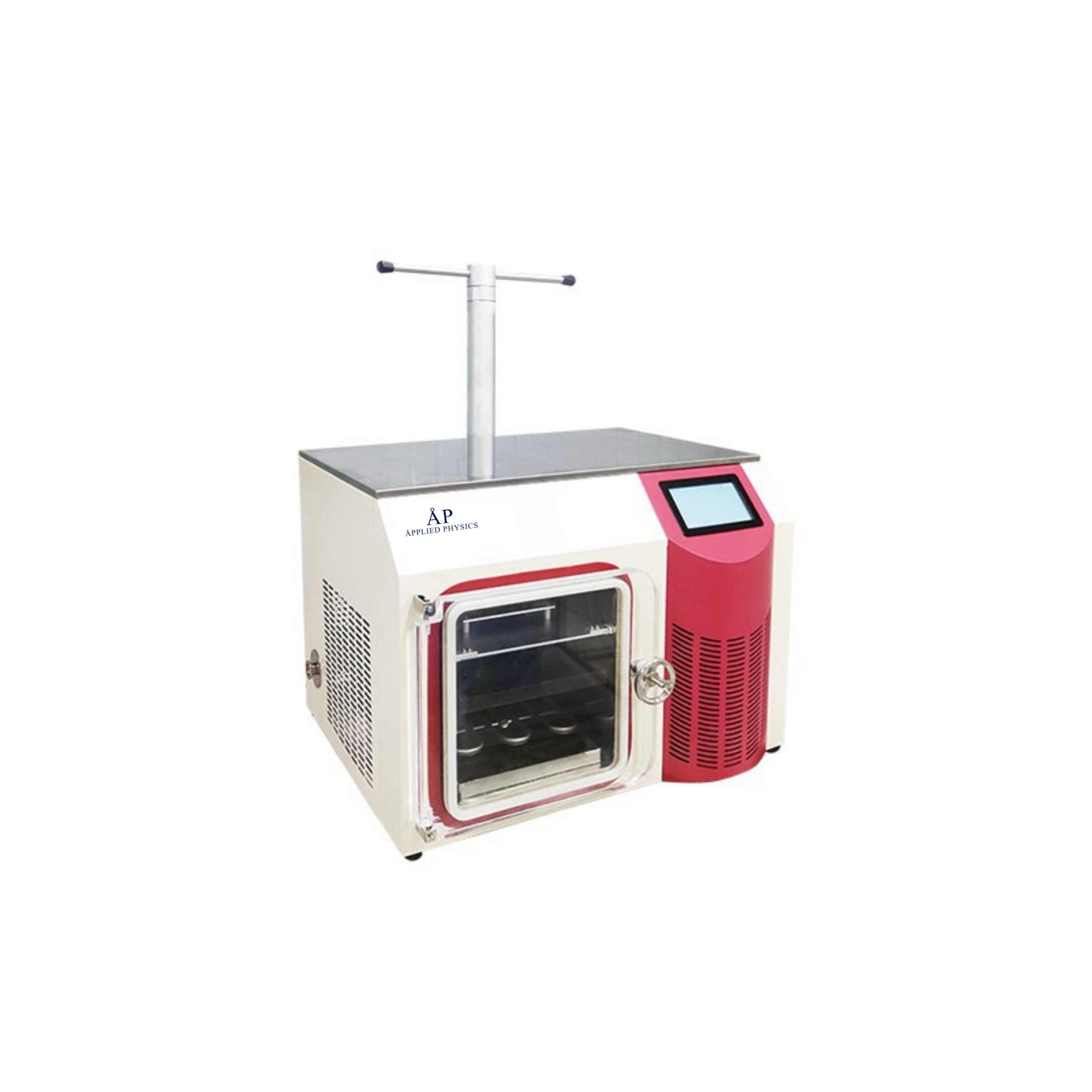

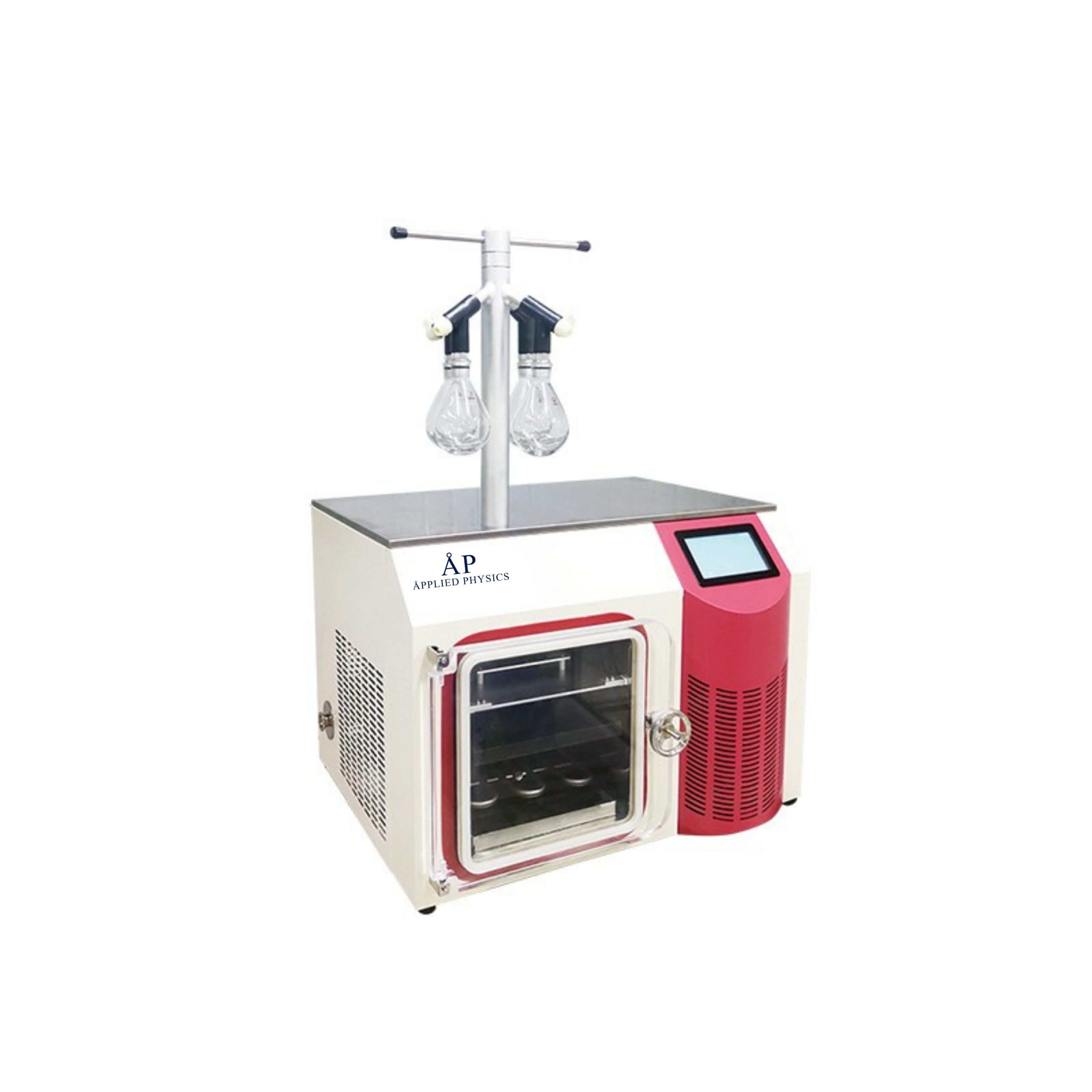

Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT
Technical Parameters:
Model
BK-FD10ES
BK-FD10EP
BK-FD10ET
BK-FD10EPT
Type
Standard chamber
4 port manifold
Stoppering chamber
Stopping chamber with 4 port manifold
Cold Trap Temp.
-88℃
Shelf Temp.
-60~+70℃
Temp. Uniformity
±1℃
Vacuum Degree
≤0.1Pa
Cold Trap Volume
11L
Freezer Drying Area
0.1m2
Condensing Capacity
3kg/h
Qty. Of Shelf
1
Drying Chamber Size
40L
Material Loading Capacity
3000ml
Total Qty. of Vial
Φ22mm
216
Φ16mm
400
Φ12mm
726
Manifold
/
4 pieces
/
4 pieces
USB Interface
Yes
Drying Chamber(Standard)
Transparent Acrylic
Vacuum Pump
Standard
Control System
Microprocessor, touch screen
Power Supply
220/110V, 50/60Hz
Power
2.3kW
Cold Trap Size(Φ*Hmm)
215*190mm
Shelf Size(W*D*H)
270*400*150mm
270*400*120mm
External Size(W*D*H)
820*695*600/995mm
820*695*875/1075mm
Host Package Size(W*D*H)
940*840*990mm
Vacuum Pump Package Size(W*D*H)
600*230*300mm
Gross Weight
180kg
210kg
210kg
220kg
| Model | as well as small batch production, high-performance solution designed for small-scale freeze-drying applications. Ideal for research and development, The Tabletop Pilot Freeze Dryer is a compact, this versatile freeze dryer offers precise control and reliability in a convenient tabletop design. |
|---|
