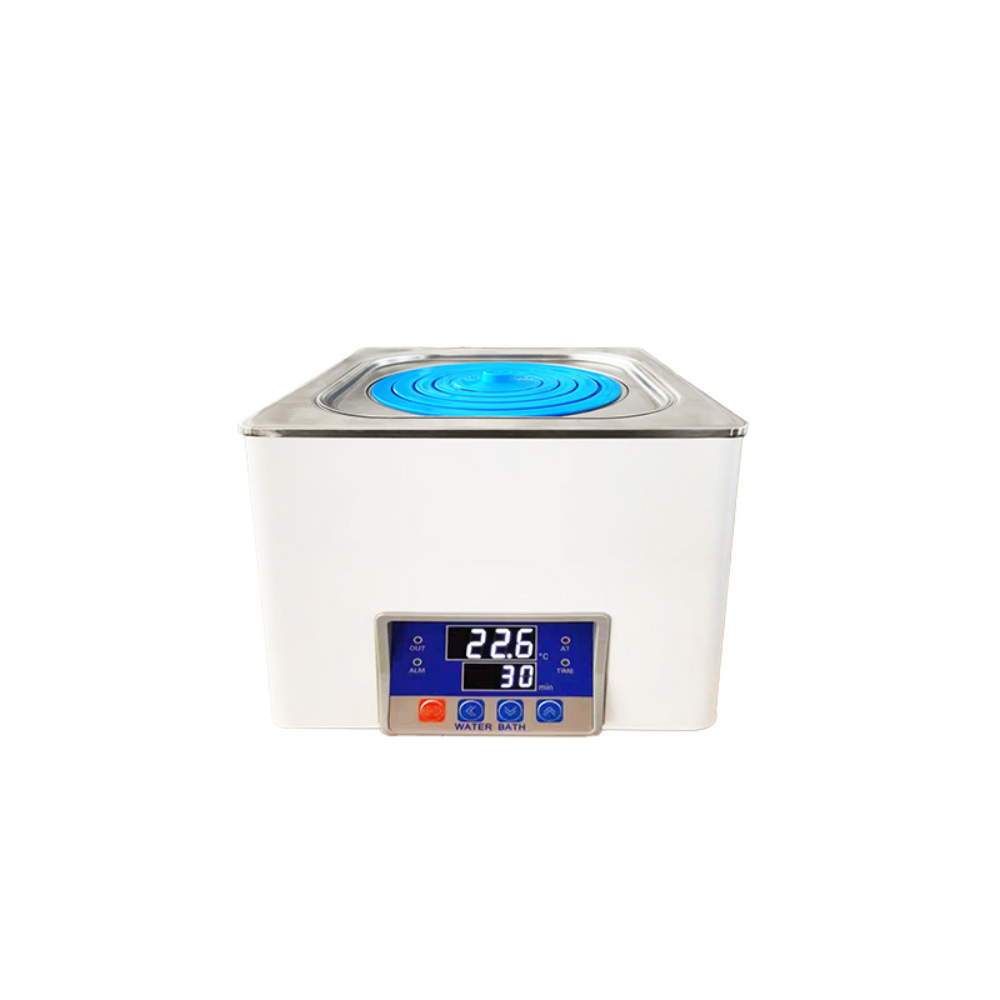

Thermostatic Water Bath BK-WB Series

Description

Thermostatic Water Bath BK-WB Series

Features:

1. The shell adopts cold plate spraying, which improves the anti-corrosion ability of the whole machine.

2. The water tank is made of 304 stainless steel, which is resistant to high temperature, corrosion and rust.

3. Adjustable ring cover to meet the needs of different sizes of experimental instruments.

4. Real-time temperature value display, accurate temperature control, countdown display.

5. Hidden stretch drain, beautiful, convenient and durable.

Technical Parameters:

Model

BK-WB1

BK-WB2

BK-WB4

BK-WB6

BK-WB8

Capacity

3.5L

6.8L

13L

20L

26L

Temp. Range

RT+5~99.9℃

Temp. Precision

0.1℃

Temp. Fluctuation

±0.5℃

Temp. Uniformity

±0.5℃

Timing Range

1~999min

Display

LED Display

Anti-dry Protection

Standard

Consumption

300W

600W

800W

1200W

1800W

Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz

Internal Size(L*W*H)

160*160*140mm

305*160*140mm

305*305*140mm

470*305*140mm

620*305*140mm

External Size(L*W*H)

210*215*195mm

365*215*195mm

365*365*195mm

530*365*195mm

680*365*195mm

Net Weight

2.7kg

3kg

4.3kg

5.4kg

7kg

Packing Size(L*W*H)

210*215*195mm

395*215*240mm

395*395*240mm

560*395*240mm

705*410*265mm

Gross Weight

3.5kg

3.7kg

5.3kg

6.7kg

8.6kg

Optional Tube Rack:

Model

BK-WB1

BK-WB2

BK-WB4

BK-WB6

BK-WB8

Max Number

φ13mm*40

/

1

3

5

6

φ14mm*40

/

1

3

5

5

φ16mm*40

/

1

3

4

5

φ17mm*40

/

1

2

4

5

φ19mm*40

/

1

2

4

5

φ21mm*40

/

1

2

3

5

φ23mm*40

/

1

2

3

4

φ25mm*40

/

/

/

2

2

φ27mm*40

/

/

/

2

2

φ30mm*40

/

/

/

1

1

φ17mm*12

1

4

8

12

15

φ19mm*12

1

3

5

10

12

φ21mm*12

/

2

4

8

10

φ23mm*12

/

2

4

8

10

φ27mm*12

/

2

3

6

6

φ30mm*12

/

1

3

5

6

φ32mm*12

/

1

3

5

5
