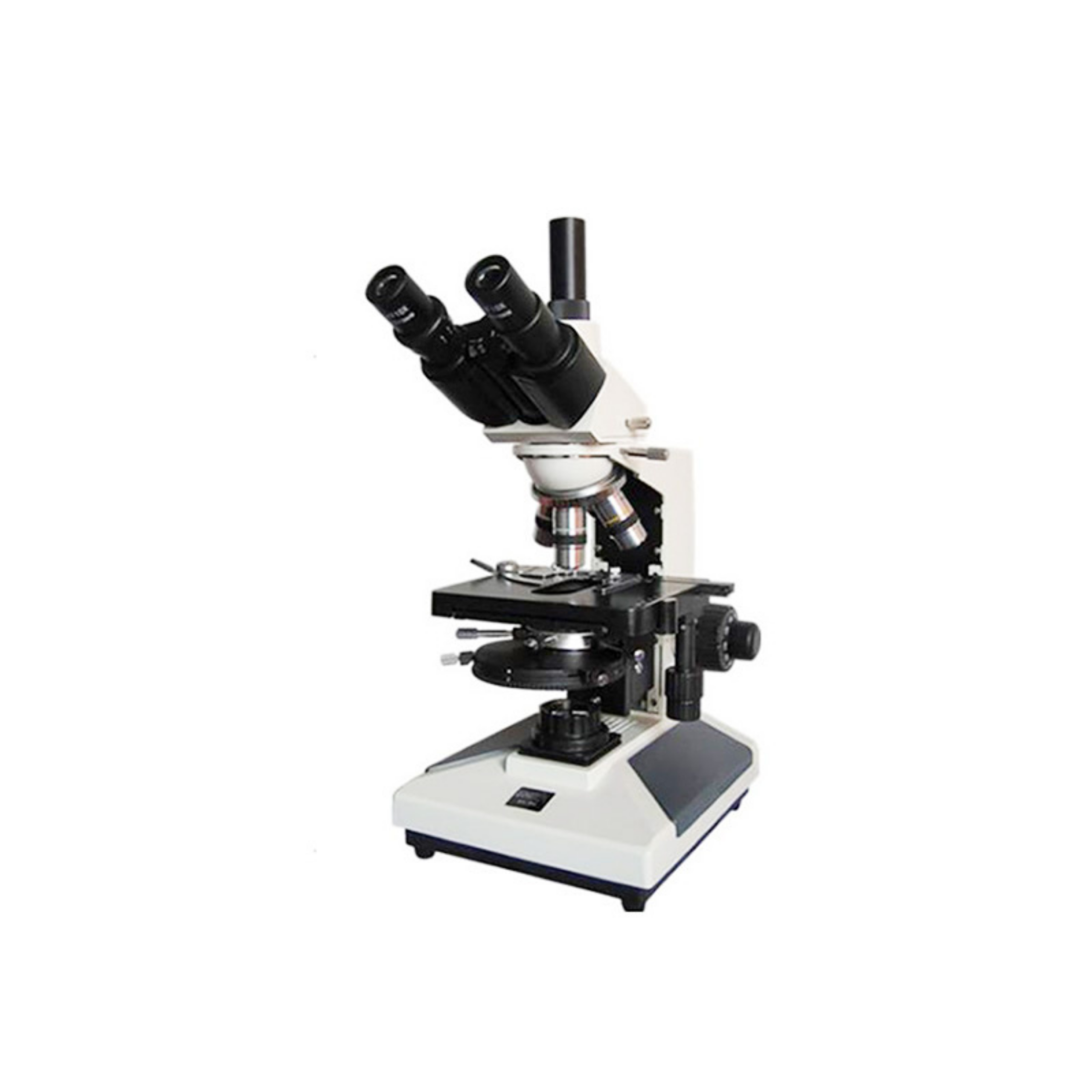

Three eye phase contrast microscope BM-PH
Technical specifications
1.Eyepiece:
Category
Magnification
Field of view diameter
Eyepiece
10X
Φ18mm
16X
Φ11mm
2.Objective:
Category
Magnification rate
Numerical Aperture
work distance
Achromatic objective
4X
0.10
37.5mm
10X
0.25
7.31mm
40X
0.65
0.63mm
100X(Oil)
1.25
0.18mm
3.Objective:
Category
Magnification rate
Numerical Aperture
work distance
Phase contrast objective
10X
0.25
7.31mm
40X
0.65
0.63mm
100X(Oil)
1.25
0.18mm
4.Mechanical cylinder length: 160mm
5 Magnification factor: 40X-1600X
Total magnification of microscope: Total magnification of microscope=objective magnification x
tube coefficient magnification x eyepiece magnification)
6 Stage size: moving platform 160 x 140mm, moving range: 80 x 50mm, cursor: 0.1mm
7 Pupil distance: 55-75 mm
8 Focusing device: 30mm coarse micro motion focusing coaxial mechanism with fine
adjustment grid value of 0.002mm
9 Spotlight mirror: N A. 1.25 adjustable Abbe condenser with variable light bar, phase contrast
condenser with variable light bar
10 Color filter: blue, yellow, green
11 Light source: halogen lamp 6V20W, AC85V-230V, brightness adj
| Model | among others., and aquatic plankton, bacteriology, BM-PH three lens phase contrast microscope uses an electric light source, fresh blood specimens, Purpose, The, unstained live sample specimens in cytology, with continuously adjustable brightness. The hinged barrel is tilted at 30 ° and can rotate freely 360 degrees. |
|---|
