Description
Tissue Grinding Machine can extract and purify original DNA, RNA, and proteins from any source, including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc. It completes the grinding, crushing, mixing, and cell wall disruption of samples in a very short time. Features: 1. In standard mode, both BHY1 and BHY2 can process up to 24 samples in as little as 1 minute. 2. The grinding process is fully enclosed, with samples moving independently to avoid cross-contamination. 3. BHY2 has been upgraded to a dual-slide vertical oscillation mechanism, providing more thorough grinding, better stability, and a longer lifespan. BHY1 features a wear-resistant graphite bush structure. 4. Supports placing centrifuge tubes directly into the adaptor, supports pre-freezing of centrifuge tubes. 5. Adopt for quiet operation to reduce interference with the surrounding environment. Applicable Samples: 1. Animal tissues: brain, heart, lungs, stomach, liver, thymus, kidneys, intestines, lymph nodes, muscles, bones, hair, etc. 2. Volatile samples: coal, oil shale, wax products, etc. 3. Plant tissues: roots, stems, leaves, flowers, fruits, seeds, etc. 4. Microorganisms: yeast, E. coli, etc. 5. Food: various foods, etc. 6. Plastics, polymers: PE, PS, textiles, resins, etc. 7. Environmental samples: soil, sediment, sludge, feces, etc. Adaptor:
Technical Parameters:
| Model | BHY1 | BHY2 |
| Display | 5-inch OLED touch screen | 7-inch OLED touch screen |
| Oscillation Mode | Up and down vertical oscillation | |
| Grinding Speed | 0~2300rpm | |
| Grinding Way | Dry grinding/wet grinding/low temperature grinding | |
| Grinding Time | Each segment 0~120s, can be set in multiple segments | |
| Programming | Multi-stage operation setup is available, automatically records the parameters of the last operation | |
| Safety Lock | Mechanical butterfly safety lock+door-controlled electronic operation limit | |

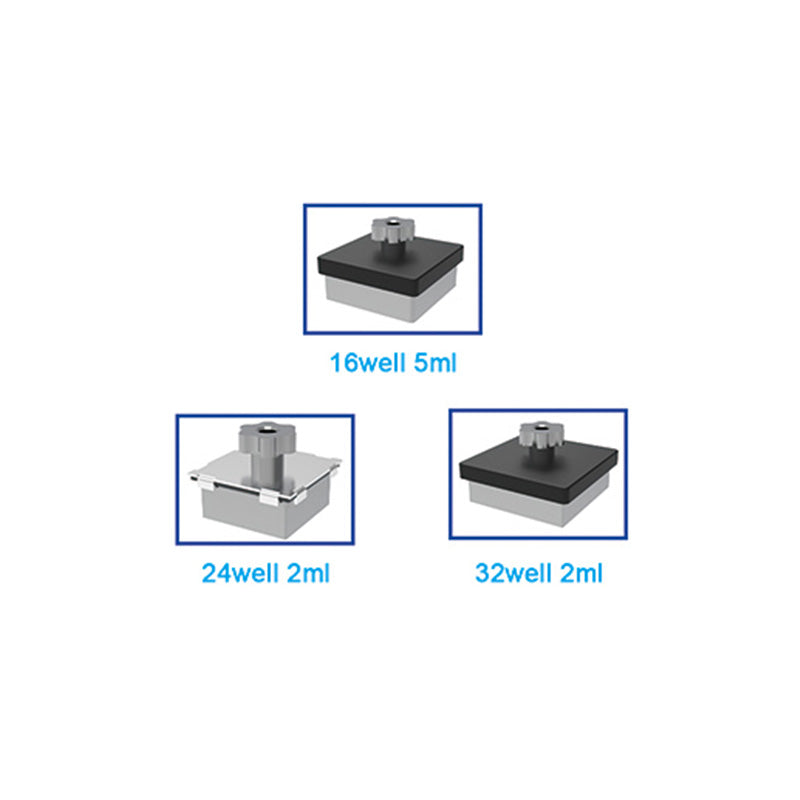

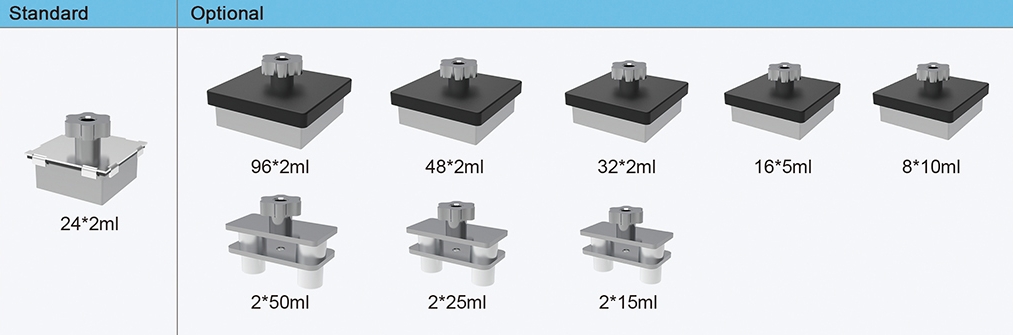

| Adaptor | Aluminum alloy material Standard: 24*2ml Optional(Can customize): 32*2ml/16*5ml | Aluminum alloy material Standard: 24*2ml Optional(Can customize): 96*2ml/48*2ml/32*2ml/16*5ml/8*10ml/2*15ml/2*25ml/2*50ml |
| Grinding Ball | Diameter: 0.1~10mm Standard stainless steel grinding ball: φ3mm*800 and φ5mm*300 | Diameter: 0.1~30mm Standard stainless steel grinding ball: φ3mm*800 and φ5mm*300 |
| Consumption | 120W | 180W |
| Power Supply | AC110~220V, 50/60Hz | |
| External Size(W*D*H) | 265*405*475mm | 265*405*520mm |
| Package Size(W*D*H) | 375*510*640mm | 375*530*640mm |
| Net Weight | 28.5kg | 27kg |
| Gross Weight | 41kg | |
Note: Low temperature grinding means that the aluminum alloy adapter can be placed in a low temperature refrigerator or liquid nitrogen container to take out and then use, rather than the instrument with its own freezing function.
