Description

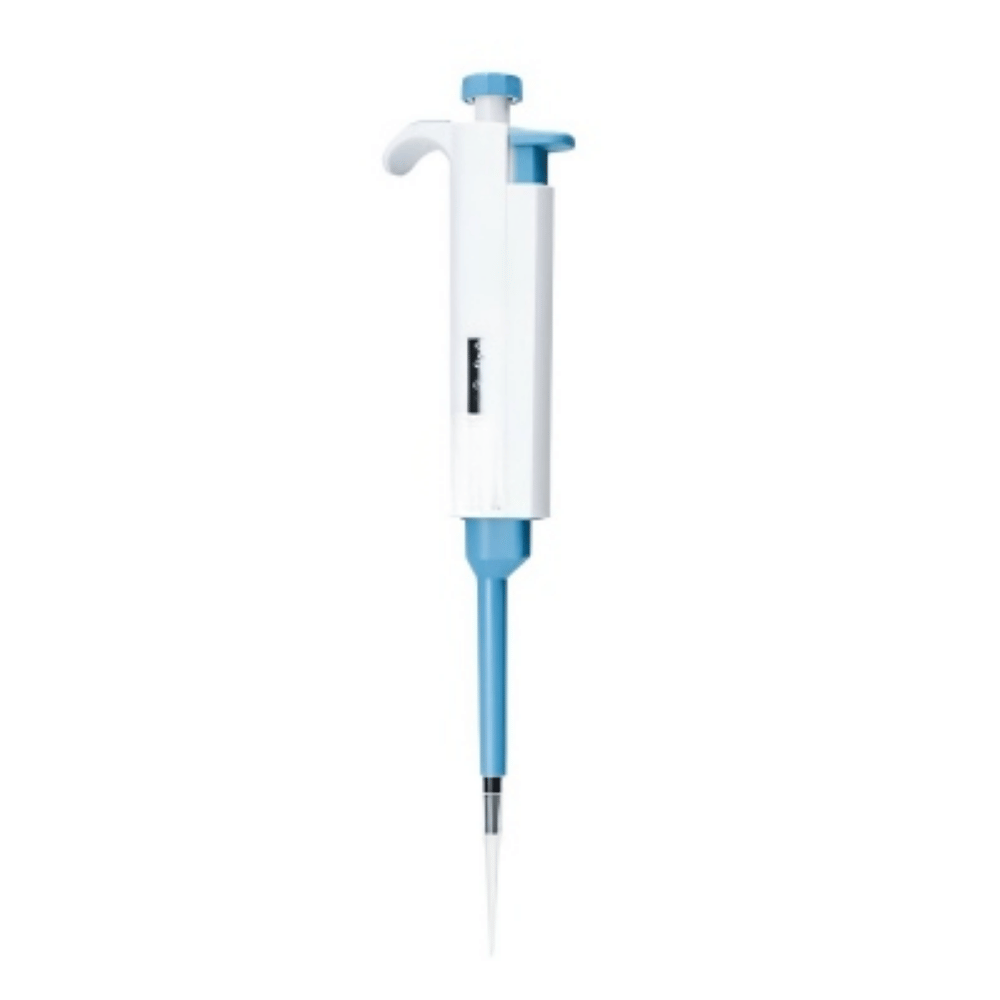

TopPette-Mechanical Pipettes Features for TopPette: 1. Light weight, ergonomic, low force design. 2. Digital display clearly reads volume stting. 3. The pipettes cover volume range of 0.1μl to 10ml. 4. Easy to calibrate and maintain. 5. The lower part is autoclavable. 6. Design helps avoid repetive strain injuries. MicroPette Plus Autoclavable Pipettes Fully Autoclavable: The MicroPette plus pipettes can be fully autoclaved at 121℃, 1 atm for less than 20mins. The pipettes can be autoclaved without special preparations. After autoclaving the pipette must be cooled down and dried over 12 hours. Features: 1. Fully autoclavable. 2. Light weight, ergonomic, low force design. 3. Digital display clearly reads volume setting. 4. The pipettes cover volume range of 0.1μl to 10ml. 5. Easy to calibrate and maintain. 6. Design helps avoid repetitive strain injuries. 7. Manufactured from innovative materials. Note: It is recommended to check the performance of the pipette after each autoclaving. lt is also recommended to grease the piston and seal of the pipette after each 10 autoclaving. Technical Parameters: TopPette Mechanical Pipettes /MicroPette Plus Autoclavable Pipettes(Adjustable and Fixed Volume)
| Fixed Volume Pipettes | ||||||||
| TopPette/Qpette Series Cat.No. | MicroPette Plus Series Cat.No. | Volume Range | Test Volume(μl) | Maximume Permissible Systematic error(Inaccuracy) | Maximume Permissible Random error(Inaccuracy) | |||
| 7010102018/7060102018 | 7030302018 | 5μl | 5μl | 1.3% | 0.065μl | 1.2% | 0.06μl | |
| 7010102019/7060102019 | 7030302019 | 10μl | 10μl | 0.8% | 0.08μl | 0.8% | 0.08μl | |
| 7010102020/7060102020 | 7030302020 | 20μl | 20μl | 0.6% | 0.12μl | 0.5% | 0.1μl | |
| 7010102021 | 7030302021 | 25μl | 25μl | 0.5% | 0.125μl | 0.3% | 0.075μl | |
| 7010102022/7060102022 | 7030302022 | 50μl | 50μl | 0.5% | 0.25μl | 0.3% | 0.15μl | |
| 7010102023/7060102023 | 7030302023 | 100μl | 100μl | 0.5% | 0.5μl | 0.3% | 0.3μl | |
| 7010102024/7060102024 | 7030302024 | 200μl | 200μl | 0.4% | 0.8μl | 0.2% | 0.4μl | |
| 7010102025 | 7030302025 | 250μl | 250μl | 0.4% | 1.0μl | 0.2% | 0.5μl | |
| 7010102026/7060102026 | 7030302026 | 500μl | 500μl | 0.3% | 1.5μl | 0.2% | 1.0μl | |
| 7010102027/7060102027 | 7030302027 | 1000μl | 1000μl | 0.3% | 3.0μl | 0.2% | 2.0μl | |
| 7010102028 | 7030302028 | 2000μl | 2000μl | 0.3% | 6.0μl | 0.15% | 3.0μl | |
| 7010102029 | 7030302029 | 5000μl | 5000μl | 0.3% | 15μl | 0.15% | 7.5μl | |
| Single-channel Adjustable Volume Pipettes | ||||||||
| TopPette/Qpette Series Cat.No. | MicroPette Plus Series Cat.No. | Volume Range | Increment | Test Volume | Maximume Permissible Systematic Error | Maximume Permissible Random Error | ||
| 7010101001/7060101001 | 7010301001 | 0.1-2.5μl | 0.05μl | 2.5μl | 2.50% | 0.0625μl | 2.00% | 0.05μl |
| 1.25μl | 3.00% | 0.0375μl | 3.00% | 0.0375μl | ||||
| 0.25μl | 12.00% | 0.03μl | 6.00% | 0.015μl | ||||
| 7010101004/7060101004 | 7010301004 | 0.5-10μl | 0.1μl | 10μl | 1.00% | 0.1μl | 0.80% | 0.08μl |
| 5μl | 1.50% | 0.075μl | 1.50% | 0.075μl | ||||
| 1μl | 2.50% | 0.025μl | 1.50% | 0.015μl | ||||
| 7010101005/7060101005 | 7010301005 | 2-20μl | 0.5μl | 20μl | 0.90% | 0.18μl | 0.40% | 0.08μl |
| 10μl | 1.20% | 0.12μl | 1.00% | 0.1μl | ||||
| 2μl | 3.00% | 0.06μl | 2.00% | 0.04μl | ||||
| 7010101006/7060101006 | 7010301006 | 5-50μl | 0.5μl | 50μl | 0.60% | 0.3μl | 0.30% | 0.15μl |
| 25μl | 0.90% | 0.225μl | 0.60% | 0.15μl | ||||
| 5μl | 2.00% | 0.1μl | 2.00% | 0.1μl | ||||
| 7010101008/7060101008 | 7010301008 | 10-100μl | 1μl | 100μl | 0.80% | 0.8μl | 0.15% | 0.15μl |
| 50μl | 1.00% | 0.5μl | 0.40% | 0.2μl | ||||
| 10μl | 3.00% | 0.3μl | 1.50% | 0.15μl | ||||
| 7010101009/7060101009 | 7010301009 | 20-200μl | 1μl | 200μl | 0.60% | 1.2μl | 0.15% | 0.3μl |
| 100μl | 0.80% | 0.8μl | 0.30% | 0.3μl | ||||
| 20μl | 3.00% | 0.6μl | 1.00% | 0.2μl | ||||
| 7010101011 | 7010301011 | 50-200μl | 1μl | 200μl | 0.60% | 1.2μl | 0.15% | 0.3μl |
| 100μl | 0.80% | 0.8μl | 0.30% | 0.3μl | ||||
| 50μl | 1.00% | 0.5μl | 0.40% | 0.2μl | ||||
| 7010101014/7060101014 | 7010301014 | 100-1000μl | 5μl | 1000μl | 0.60% | 6μl | 0.20% | 2μl |
| 500μl | 0.70% | 3.5μl | 0.25% | 1.25μl | ||||
| 100μl | 2.00% | 2μl | 0.70% | 0.7μl | ||||
| 7010101016 | 7010301016 | 200-1000μl | 5μl | 1000μl | 0.60% | 6μl | 0.20% | 2μl |
| 500μl | 0.70% | 3.5μl | 0.25% | 1.25μl | ||||
| 200μl | 0.90% | 1.8μl | 0.30% | 0.6μl | ||||
| 7010101045/7060101045 | 7041301245 | 0.5-5ml | 5μl | 5000μl | 0.50% | 25μl | 0.15% | 7.5μl |
| 2500μl | 0.60% | 15μl | 0.30% | 7.5μl | ||||
| 1000μl | 0.70% | 7μl | 0.30% | 3μl | ||||
| 7010101044/7060101044 | 7041301244 | 1-10ml | 0.1ml | 10ml | 0.60% | 60μl | 0.20% | 20μl |
| 5ml | 1.20% | 60μl | 0.30% | 15μl | ||||
| 2ml | 3.00% | 60μl | 0.60% | 12μl | ||||
