Total Organic Carbon(TOC) analyzer is an instrument used for the accurate determination of the total amount of organic carbon in a sample. Its core principle involves converting the organic carbon in the sample into easily detectable carbon dioxide(CO₂), followed by quantitative analysis of CO₂ to infer the TOC content in the sample. Widely applied in various fields such as water quality monitoring, environmental governance, and electronic semiconductors, this instrument is a key device for assessing the degree of organic pollution, purity, and quality control of samples.
$0.00

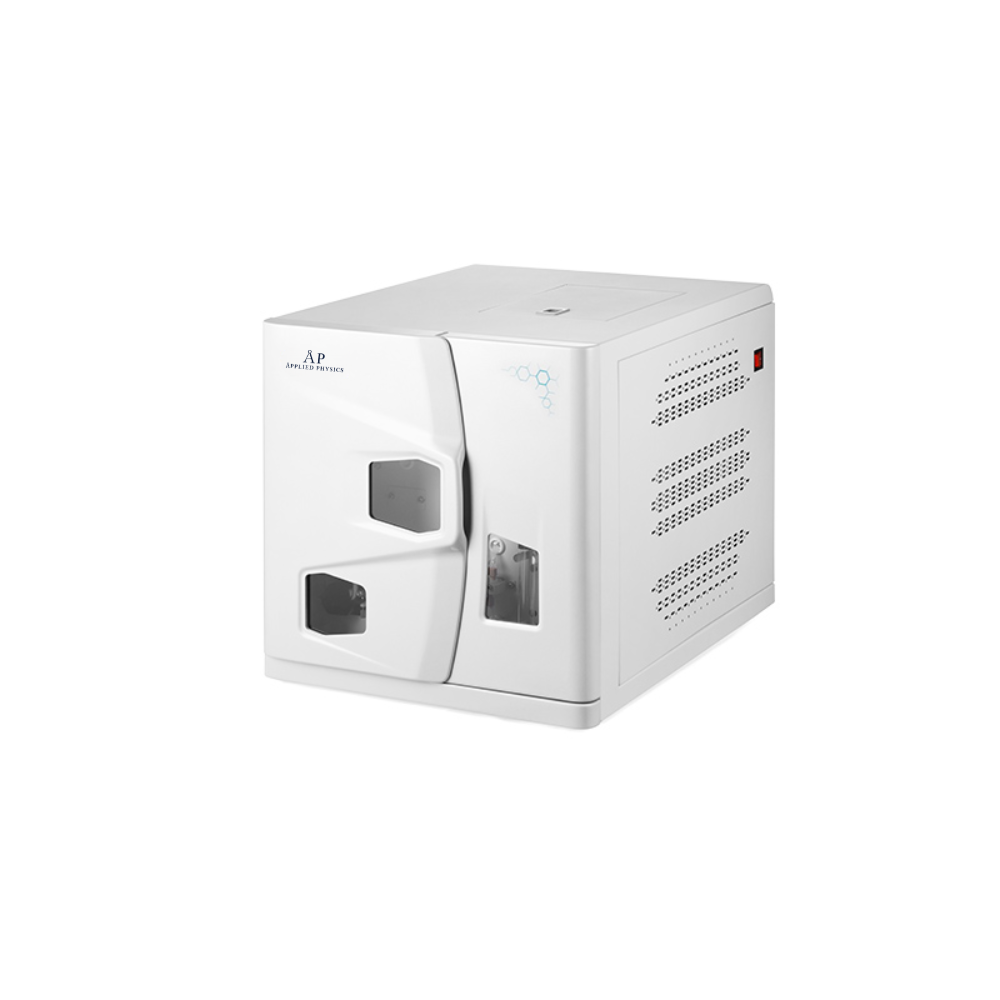

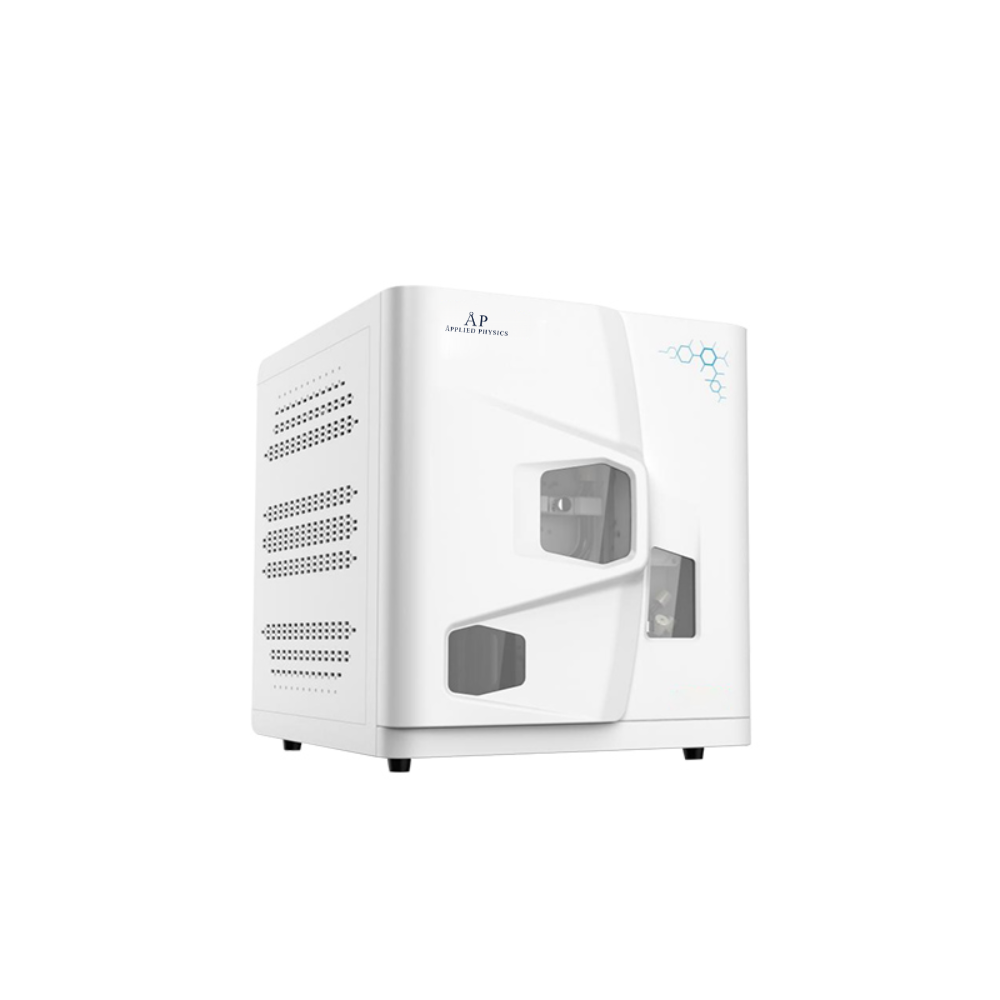

Total Organic Carbon Analyzer BK-TOC5000RN
Features:
1. Auto sample dilution, auto acid-adding and auto gas purging(BK-TOC5000RD).
2. 680℃ catalytic oxidation technology with platinum catalyst, especially for seawater test.
3. NDIR detector, high sensitivity and stability.
4. Optional autosampler.
5. Multi-functional PC software.
6. Precise gas flow control technology improves accuracy.
7. PID temperature controlling technology, ensure higher accuracy.
8. Unique three-stage dehydration technology improves drying efficiency.
9. Personalized standard curve management provides great convenience for users.
10. Consumables management reminds users to replace consumables in time.
11. Modular design, simplifying device operation and maintenance.
12. TOC-LAB software is optional, which complies with FDA-21 CFR Part11 requirements and USP.
Technical Parameters:
Model
BK-TOC5000RN
BK-TOC5000RD
Measurement Method
High temperature catalytic combustion
Detector
NDIR
Analysis Parameter
TC, TIC, TOC, NPOC
Control Mode
PC software controlled
Gas Requirement
Oxygen, purity≥99.995%
Sample Type
Liquid sample(AS-W20 is optional)
Measurement Range
0~1000mg/L, can extend to 0~100,000mg/L(Manually dilution)
0~1000mg/l, can extend to 0~100,000mg/L(Automatically dilution)
Limit of Detection
TC: 50μg/L
IC: 20μg/L
Measuring Time
TC: around 4min
IC: around 3min
Max. Permissible Error
TOC: ±5%
IC: ±4%
Repeatability
≤3%
Injection Volume
TC: 100~500μl
IC: 100~2000μl
Optional Accessories
Autosampler for liquid sample or solid sample
Enhanced halogen removal device
Enhanced halogen removal device-Metal wire mesh
Power Supply
AC220V±10%, 50/60Hz(Standard); 110V±10%, 50/60Hz(Optional)
Consumption
700W
Package Size(W*D*H)
Main Machine: 780*710*610mm
Accessories: 710*230*600mm
Gross Weight
Main Machine: 59kg
Accessories: 7kg
Main Machine: 63kg
Accessories: 8kg
| Model | BK-TOC5000RD, BK-TOC5000RN |
|---|
