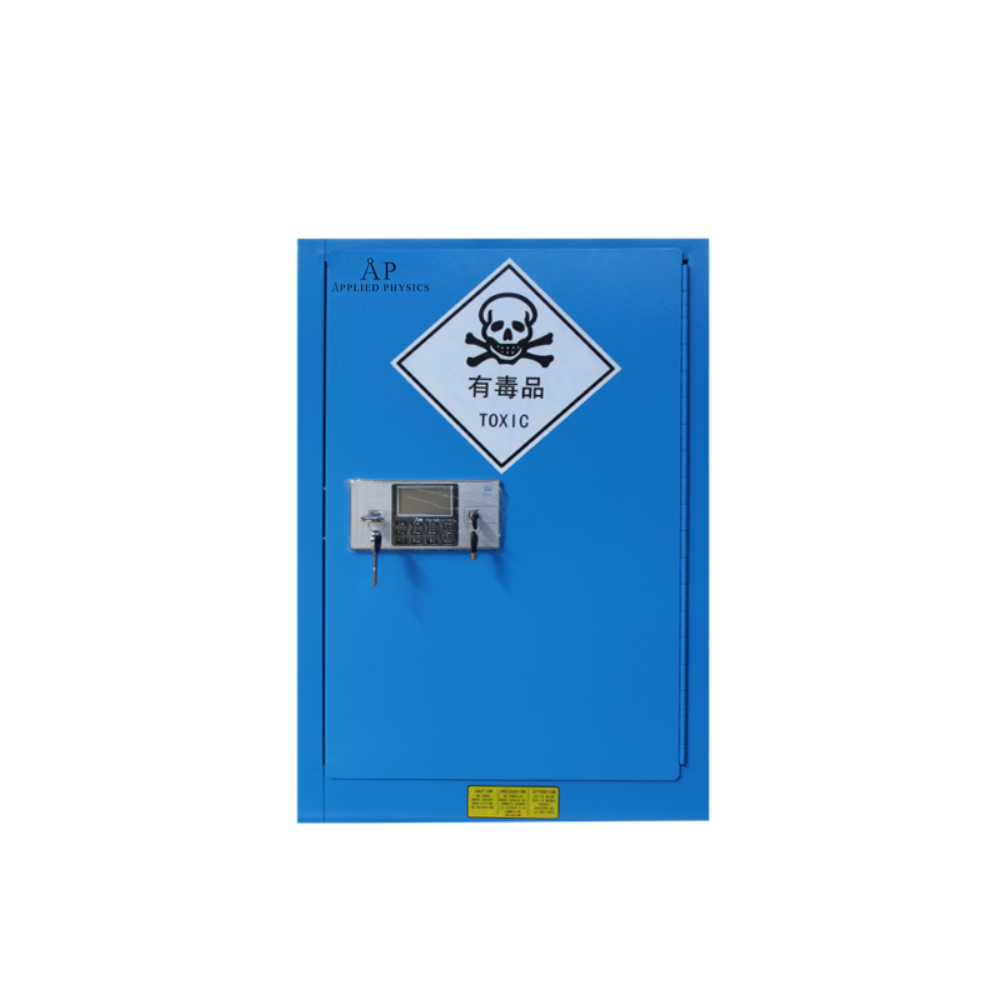

Toxic Chemical Storage Cabinet

Description

Toxic Chemical Storage Cabinet

Features：

1. Two layers of fireproof steel plates with 38mm thermal insulation between the two steel plates.

2. Main body material: 1.0mm steel plate, epoxy resin spraying.

3. Security: Equipped with electronic password lock and mechanical lock.

4. 50mm high leak-proof liquid tank ensures no liquid spillage.

5. Installed with dual air outlets with fire protection.

6. Customizable.

Technical Parameters：

Model

CSC-12D

CSC-22D

CSC-30D

CSC-45D

CSC-60D

CSC-90D

Capacity

12gallon(45L)

22gallon(83L)

30gallon(114L)

45gallon(170L)

60gallon(227L)

90gallon(340L)

Standard Shelf

1pc

3pcs

1pc

2pcs

2pcs

2pcs

External Size(W*D*H)mm

590*460*890

600*460*1650

1090*460*1120

1090*460*1650

860*860*1650

1090*860*1650

Package Size(W*D*H)mm

665*535*915

680*540*1795

1170*540*1260

1170*540*1790

940*940*1790

1170*940*1790

Gross Weight

50kg

93kg

101kg

138kg

170kg

200kg
