Description

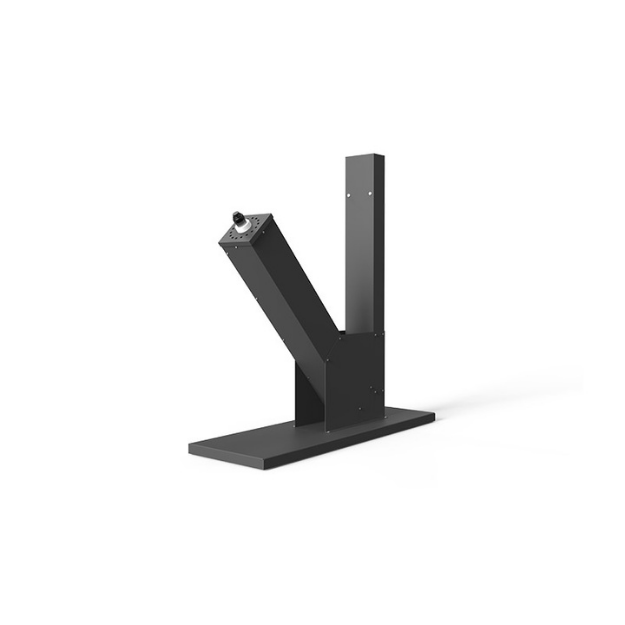

The transparency tester is designed to measure the transparency of gelatin and other translucent materials.
Features:
1. Environmental interference elimination: ensures stable results by minimizing ambient light impact.
2. Standardized glass tube: facilitates easy sample loading and retrieval.
3. Sealed light source system: reduces external environmental effects.
4. User-friendly operation: simplified controls and reliable performance.
5. Safety compliance: powered by a national standard single-phase three-hole AC socket with secure grounding.
Technical Parameters:
| Model | BTM-1 |
| Test Range | 20~500mm |
| Accuracy | ±5mm |
| Glass Tube Capacity | 500mL |
| Operating Temperature | 18~28°C |
| Storage Temperature | -10~50°C |
| Relative Humidity | 20%~80% |
| Consumption | 100W |
| Power Supply | AC220V, 50Hz(Standard);
AC220V/110V, 60Hz(Optional) |
| External Size(W*D*H)mm | 600*200*630 |
| Package Size(W*D*H)mm | 700*250*750 |
| Net Weight(kg) | 6 |
| Gross Weight (kg) | 7 |
