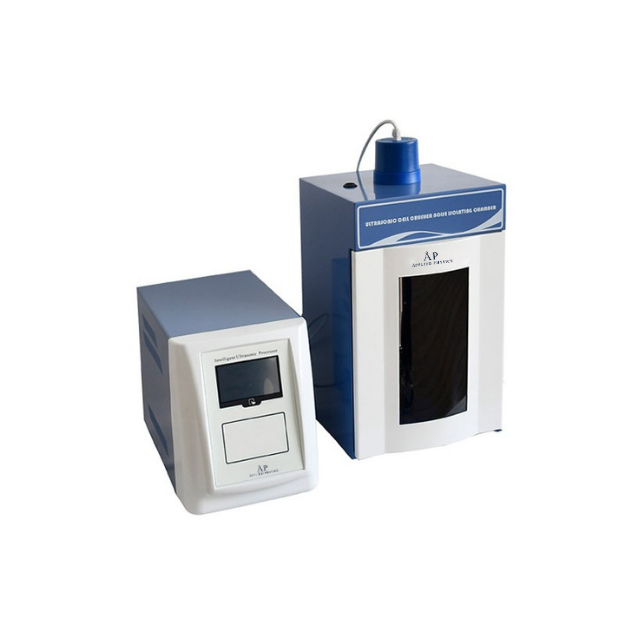

Description
Widely used in the field such as biology, chemistry, microbiology, physics, zoology, agronomy, medical science for teaching, scientific research and production.
Features:
1. LCD touch screen display.
2. Storage capacity: 20 groups of program data.
3. Temp. monitor: over-temperature protection.
4. Other functions: automatic tracking the frequency, fault alarm.
Technical Parameters:
|
Model |
UCD-150 |
UCD-250 |
UCD-500 |
UCD-650 |
UCD-950 |
UCD-1200 |
UCD-1500 |
UCD-1800 |
UCD-2000 |
|
Frequency(KHz) |
20~25 |
20~25 |
20~25 |
20~25 |
20~25 |
19.5~20.5 |
19.5~20.5 |
19.5~20.5 |
19.5~20.5 |
|
Crushing Capacity(ml) |
0.1~150 |
0.1~300 |
0.1~400 |
0.1~500 |
0.1~700 |
1~1000 |
1~1500 |
1~1200 |
50~2000 |
|
Standard Amplitude-change PoleΦ(mm) |
6 |
20 |
22 |
22 |
25 |
||||
|
Optional Amplitude-change Pole Φ(mm) |
2, 3, 6, 8,10 |
2, 3, 6, 8, 10 |
2, 3, 6, 8, 10, 12 |
2, 3, 6, 8, 10, 12 |
2, 3, 6, 8, 10, 12, 15 |
3, 6, 10, 15, 22, 25 |
10, 15, 20, 22, 25 |
10, 15, 20, 22, 25 |
10, 15, 20, 25 |
|
Ultrasonic Power(W) |
1.5~150 |
2.5~250 |
5~500 |
6.5~650 |
10~1000 |
12~1200 |
15~1500 |
18~1800 |
0~2000 |
|
Power Supply |
AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
||||||||
|
Package Size(W*D*H) |
350*350*550mm(Acoustic chamber) 470*305*430mm(Main body) |
||||||||
|
Gross Weight |
26kg |
29kg |
|||||||
Technical Parameter for Amplitude Pole:
|
Size |
Crushing |
Recommended |
Frequency(KHz) |
UCD-150 |
UCD-250 |
UCD-500 |
UCD-650 |
UCD-950 |
UCD-1000 |
UCD-1200 |
UCD-1500 |
UCD-1800 |
UCD-2000 |
|
φ2mm |
0.1~5ml |
1~35% |
20~25 |
√ |
√ |
√ |
√ |
√ |
√ |
x |
x |
x |
x |
|
φ3mm |
3~10ml |
1~45% |
20~25 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
x |
|
φ5mm |
5~100ml |
1~60% |
20~25 |
x |
x |
x |
x |
x |
x |
x |
x |
x |
x |
|
φ6mm |
10~100ml |
1~70% |
20~25 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
φ8mm |
20~200ml |
1~85% |
20~25 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
φ10mm |
30~300ml |
1~90% |
20~25 |
v |
√ |
√ |
√ |
√ |
√ |
x |
x |
x |
x |
|
φ10mm |
30~300ml |
1~60% |
19.5~20.5 |
x |
x |
x |
x |
x |
x |
√ |
√ |
√ |
√ |
|
φ12mm |
50~600ml |
10~90% |
20~25 |
x |
x |
√ |
√ |
√ |
√ |
x |
x |
x |
x |
|
φ15mm |
200~750ml |
10~95% |
20~25 |
x |
x |
x |
x |
√ |
√ |
x |
x |
x |
x |
|
φ15mm |
50~500ml |
5~80% |
19.5~20.5 |
x |
x |
x |
x |
x |
x |
√ |
√ |
√ |
√ |
|
φ20mm |
100~1000ml |
10~90% |
19.5~20.5 |
x |
x |
x |
x |
x |
x |
√ |
√ |
√ |
√ |
|
φ22mm |
200~1200ml |
20~95% |
19.5~20.5 |
x |
x |
x |
x |
x |
x |
√ |
√ |
√ |
√ |
|
φ25mm |
300~1500ml |
30~95% |
19.5~20.5 |
x |
x |
x |
x |
x |
x |
x |
√ |
√ |
√ |
