Description

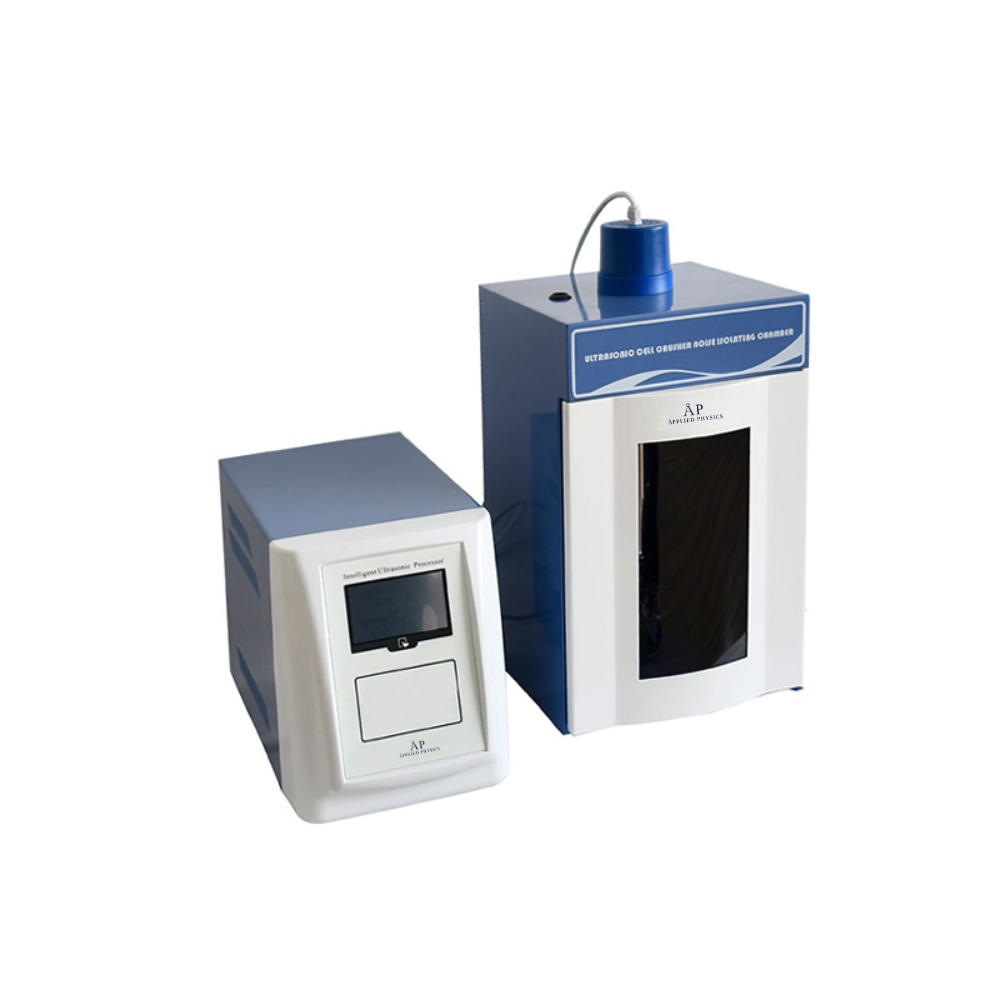

Ultrasonic Cell Disruptor UCD Series UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 Features: 1. LCD touch screen display. 2. Storage capacity: 20 groups of program data. 3. Temp. monitor: over-temperature protection. 4. Other functions: automatic tracking the frequency, fault alarm. Technical Parameters: Model UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1200 UCD-1500 UCD-1800 UCD-2000 Frequency(KHz) 20~25 20~25 20~25 20~25 20~25 19.5~20.5 19.5~20.5 19.5~20.5 19.5~20.5 Crushing Capacity(ml) 0.1~150 0.1~300 0.1~400 0.1~500 0.1~700 1~1000 10~1200 1~1200 50~2000 Standard Amplitude-change PoleΦ(mm) 6 20 22 22 25 Optional Amplitude-change Pole Φ(mm) 2, 3, 6, 8,10 2, 3, 6, 8, 10 2, 3, 6, 8, 10, 12 2, 3, 6, 8, 10, 12 2, 3, 6, 8, 10, 12, 15 3, 6, 8，10, 15, 22, 25 3, 6, 8， 10, 15, 20, 22, 25 3, 6, 8， 10, 15, 20, 22, 25 6, 8, 10, 15, 20, 22 , 25 Ultrasonic Power(W1-100%) 1.5~150 2.5~250 5~500 6.5~650 10~1000 12~1200 15~1500 18~1800 20~2000 Power Supply AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) Package Size(W*D*H) 350*350*550mm(Acoustic chamber) 470*305*450mm(Main body) Gross Weight 26kg 29kg Technical Parameter for Amplitude Pole: Size Crushing Capacity Recommended Power Ratio Frequency(KHz) UCD-150 UCD-250 UCD-500 UCD-650 UCD-950 UCD-1000 UCD-1200 UCD-1500 UCD-1800 UCD-2000 φ2mm 0.1~5ml 1~35% 20~25 √ √ √ √ √ √ x x x x φ3mm 3~10ml 1~45% 20~25 √ √ √ √ √ √ √ √ √ x φ5mm 5~100ml 1~60% 20~25 x x x x x x x x x x φ6mm 10~100ml 1~70% 20~25 √ √ √ √ √ √ √ √ √ √ φ8mm 20~200ml 1~85% 20~25 √ √ √ √ √ √ √ √ √ √ φ10mm 30~300ml 1~90% 20~25 v √ √ √ √ √ x x x x φ10mm 30~300ml 1~60% 19.5~20.5 x x x x x x √ √ √ √ φ12mm 50~600ml 10~90% 20~25 x x √ √ √ √ x x x x φ15mm 200~750ml 10~95% 20~25 x x x x √ √ x x x x φ15mm 50~500ml 5~80% 19.5~20.5 x x x x x x √ √ √ √ φ20mm 100~1000ml 10~90% 19.5~20.5 x x x x x x √ √ √ √ φ22mm 200~1200ml 20~95% 19.5~20.5 x x x x x x √ √ √ √ φ25mm 300~1500ml 30~95% 19.5~20.5 x x x x x x √ √ √ √
