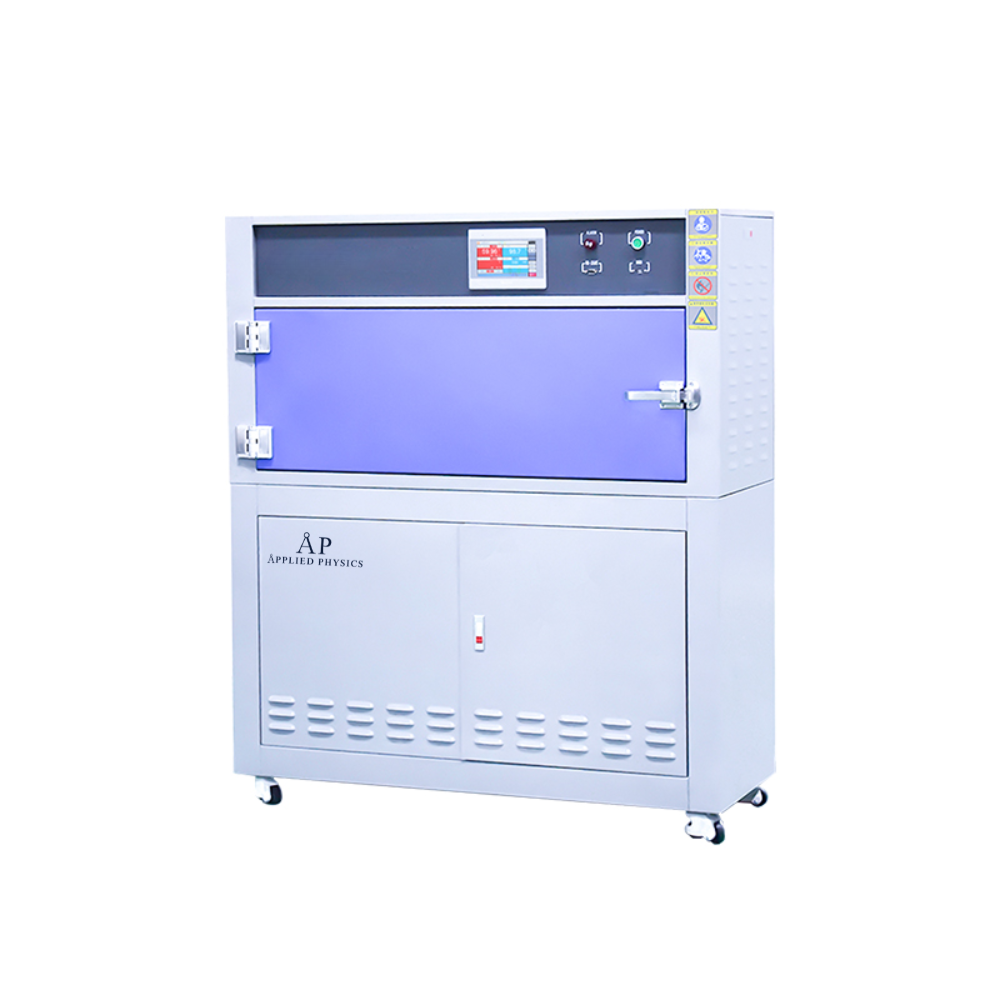

UV Aging Test Chamber

UV Aging Test Chamber Features: 1. Select imported brand of UVA and UVB lamps. 2. Good lighting, faster testing, long lifetime, good durable usage. 3. Equipped with a irradiatometer made in Beijing Normal University, with feedback signal and collect testing information from inner chamber. 4. Ensure simulation condition meet test condition in chamber by controller. 5. Prevent the lamp tube in the chamber from falling to reach the test conditions, resulting in no effect of the test. Technical Parameters: Model BJPX-UATC1 BJPX-UATC2 BJPX-UATC3 Function Lighting Lighting+condensation Lighting+condensation+raining Lighting Temp. Range 50~70℃(Temp. deviation: ±3℃) Condensation 40~60℃(Temp. deviation: ±3℃) Blackboard Temp. Range 30~80℃(Temp. deviation: ±1℃) Center Distance of Light 70mm Distance 50mm(The closest parallel distance between the specimen and the lamp surface) Wavelength Range UVA-340: 315~400nm UVB-313: 280~320nm Max. Radiation Intensity Within 1.2W/m2/340nm adjustable Indication Resolution 0.1℃ Tank Water depth ≤25mm, with automatically feed water controller Lamp Life About 1800~2500h(Depends on actual usage time) Power Supply AC380V, 50/60Hz; 220V, 50/60Hz; 110V, 50/60Hz(Standard) Inner Size(W*D*H) 1130*500*400mm External Size(W*D*H) 1300*700*1700mm Package Size(W*D*H) 1600*1000*2000mm Net Weight 150kg Gross Weight 170kg
