Description

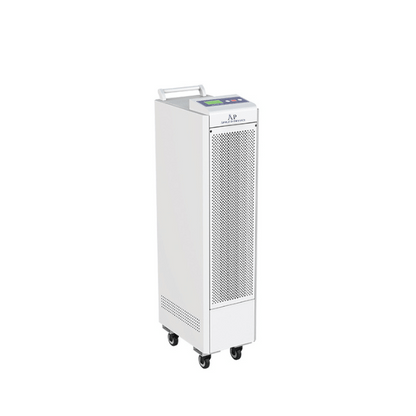

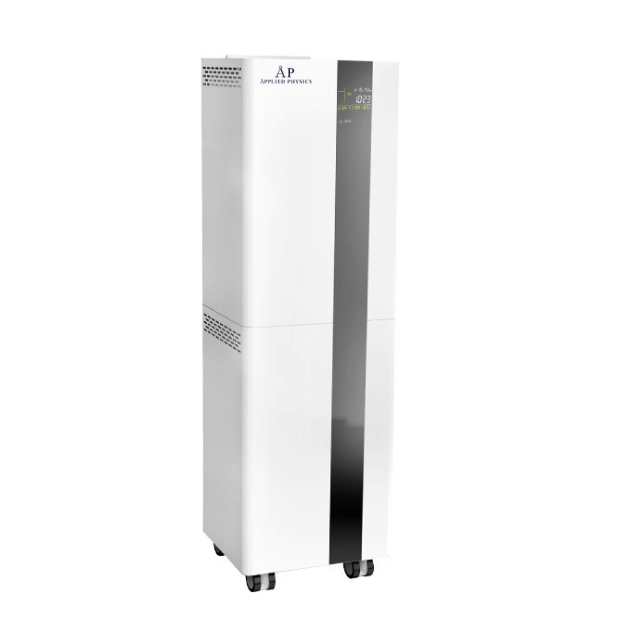

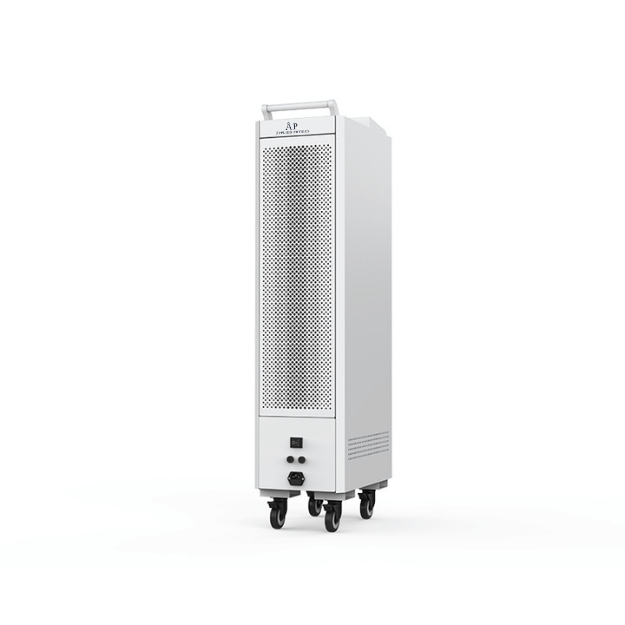

The Applied Physics Floor-Standing UV Air Sterilizer delivers powerful air purification and sterilization for clinical, laboratory, and public environments. Utilizing advanced ultraviolet (UV) technology, this system rapidly eliminates airborne bacteria, viruses, and contaminants, providing a cleaner, safer workspace. Designed for continuous operation in either occupied or unoccupied environments, it ensures dependable performance and robust user protection.
Key Features
BK-G-1600
- Suitable for spaces up to 160 m³
- Human and machine coexistence: safe sterilization in both manned and unmanned settings
- Durable metal housing with advanced moisture- and rust-proof finish; elegant design with black acrylic panels
- Microcomputer control core featuring LCD display of real-time indoor temperature and humidity
- 9 programmable power on/off periods within 24h; three-tier adjustable wind speed
- Four operation modes: manual, scheduled, automatic, and temporary for customized use
- Automatic working hour accumulation; alerts for UV lamp, fan, negative ion module, plasma module faults, and filter/UV lamp maintenance
Technical Specifications
| Parameter | BK-G-1600 | ZY-Y-800 |
|---|---|---|
| Applicable Space | ≤160 m³ | 20 m³ (simulated bacteria) |
| 30 m³ (natural bacteria) | ||
| Air Circulation | ≥1600 m³/h | 800 m³/h |
| Shell Material | Cold rolled steel | Cold rolled steel |
| Filter | Captures >5 μm particulates | Captures >5 μm particulates |
| UV Lamp Life | ≥5000 hours | ≥5000 hours |
| UV Leakage | ≤1 μW/cm² | ≤1 μW/cm² |
| Ozone Leakage | ≤0.0125 mg/m³ | ≤0.003 mg/m³ |
| Negative Ion Generation | ≥5×10⁶ pcs/cm³ | ≥3×10⁶ pcs/cm³ |
| Bacterial Elimination Rate | ≥90% (natural bacteria) | — |
| Staphylococcus Aureus Rate | ≥99.9% | ≥99.9% |
| Noise | ≤55 dB(A) | ≤48 dB(A) |
| Power Consumption | ≤270 W | 230 W |
| Power Supply | AC220V, 50/60Hz (Std); | AC220V, 50/60Hz (Std); |
| AC110V, 50/60Hz (Opt) | AC110V, 50/60Hz (Opt) | |
| External Dimensions (W×D×H) | 370×360×1340 mm | 230×400×1040 mm |
| Net Weight | 39.8 kg | 28 kg |
| Package Size (W×D×H) | 440×430×1420 mm | 295×440×1082 mm |
| Gross Weight | 45.7 kg | 30 kg |
