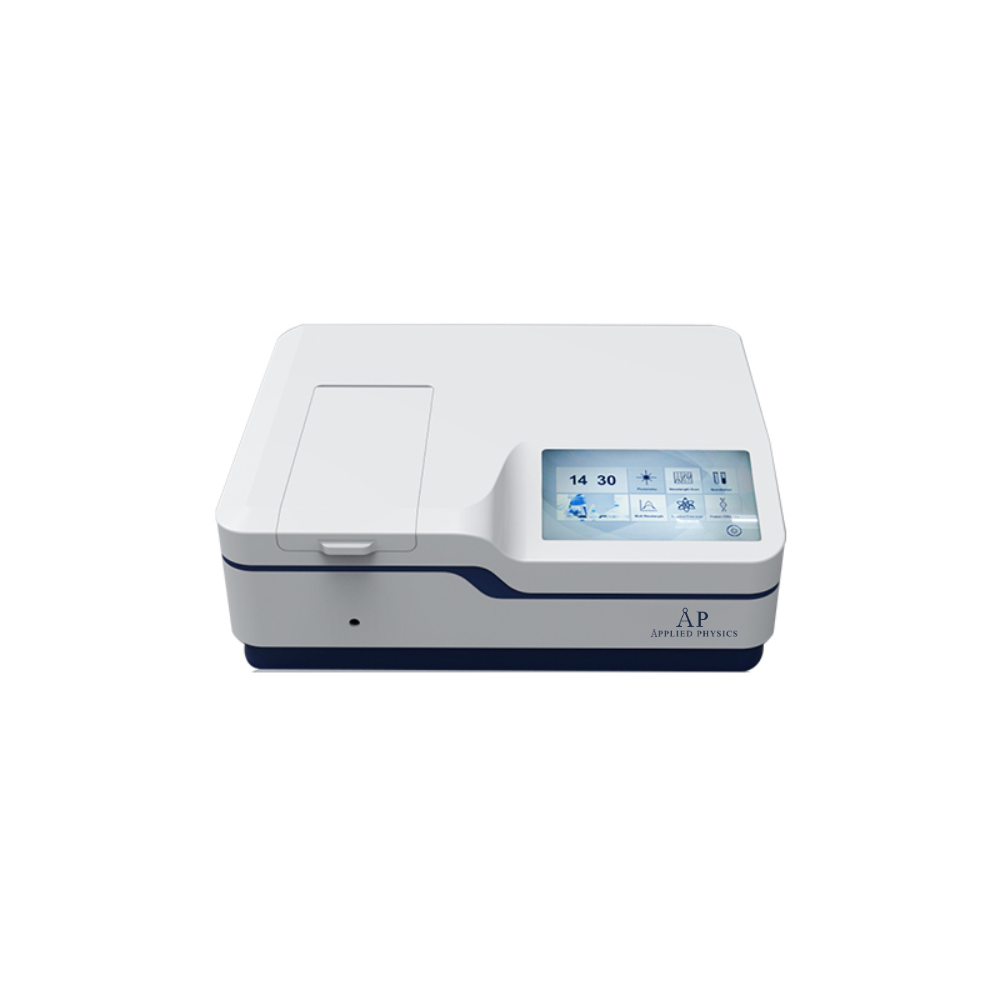

This instrument employs a pulsed xenon lamp as the light source. It can be utilized normally for at least 7 years without the need for light source replacement. We implement unique designs in optics, circuits, structure, advanced process specifications, and a rigorous quality management system. The microcomputer governs and processes data. A large color screen is utilized for display, along with graphical interface operation and user-friendly menu prompts.
$0.00
Features:
1. The instrument employs a pulsed xenon lamp as the light source. The lamp with 1 billion flashes can last for 7 years.
2. A 10.1-inch color touchscreen display directly shows various scanning curves and spectrograms.
3. U disk storage is supported. Excel, TXT, and image formats (four formats: *.csv, *.qua. *.tet, *.bmp) can be exported.
4. Data output: RS-232C serial port (for printing), USB drive (for online connection), USB HOST (for U disk), with 32GB memory as standard.
5. It uses an advanced 32-bit Cortex_M3 processor with a main frequency of 120M and can store 5, 000 test data or 500 working curves.
6. The suspension optical system and the strengthened thickened aluminum base plate are designed to eliminate the impact of vibration or deformation on the optical system.
7. Double-layer design separates the optical path and circuit parts completely.
Technical Parameters:
| Model | BK-D9X |
| Optical System | Double beam, 1200 lines/mm holographic grating |
| Spectral Bandwidth | 1.0/2.0nm |
| Wavelength Range | 190~1100nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | 0.1nm |
| Wavelength Resolution | 0.1nm |
| Data Display | 10-inch LCD color touchscreen |
| Stray Light | ≤0.05%TT at 220nm, 360nm |
| Photometric Range | 0~200%T, -0.3~3.0A, 0~9999C (0~9999F) |
| Maximum Allowable Error of Transmittance | ±0.3%T |
| Transmittance Repeatability | ≤0.1%T |
| Baseline Flatness | ±0.001Abs |
| Drift | ≤0.1%T |
| Noise | 0%≤0.05%T, 100%≤0.1%T |
| Light Source | Xenon Lamp |
| Power Supply Voltage Adaptability | ±0.1% |
| Data Output | RS-232C serial port (printing), USB drive (online connection), USB HOST (U disk) |
| Processor | Cotex_M3, main frequency 120 MHz |
| Supply Power | 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) |
| External Size（W*D*H）mm | 580*450*215 |
| Standard Accessories | 4*glass cuvette, 2*quartz cuvette, PC Software |
| Package Size（W*D*H）mm | 800*645*265 |
| Net Weight(kg) | 21 |
| Gross Weight（kg） | 26 |
