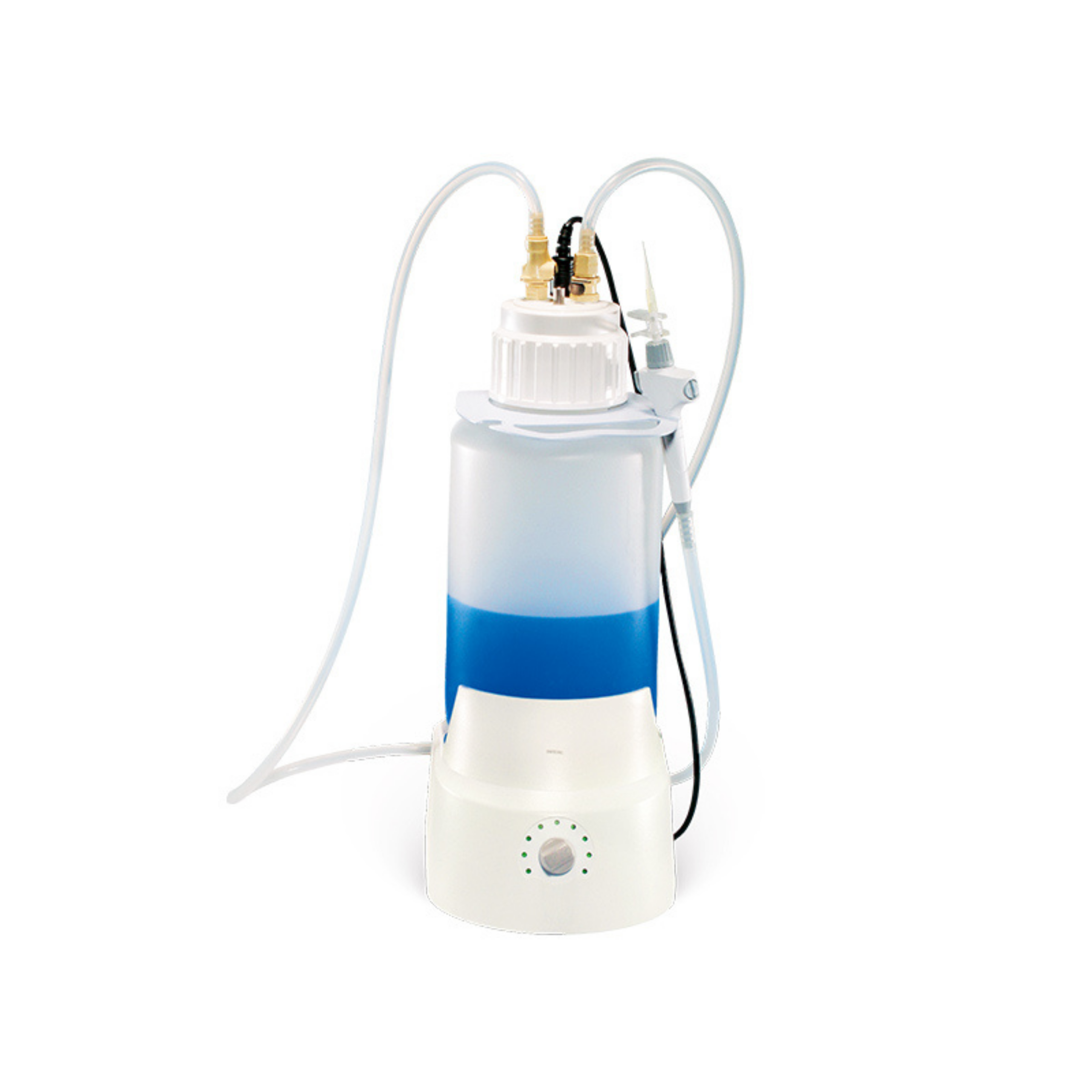

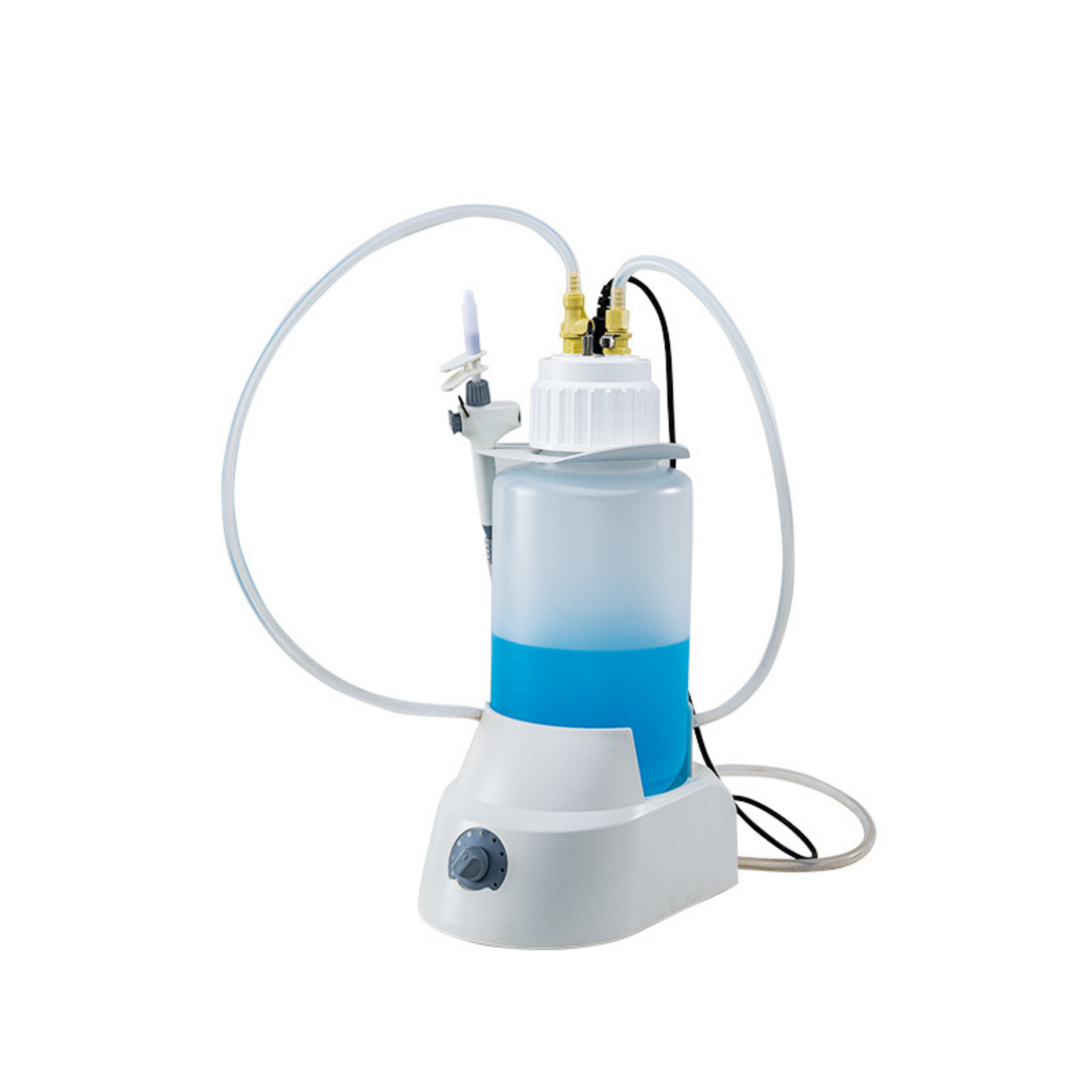

Vacuum Aspiration Systems

Description

Vacuum Aspiration Systems

Features：

1. Vacuum power with adjustable aspiration rate to achieve up to 15mL/S

2. Sensitive level sensor to detect when the bottle is full preventing liquid overflow

3. Fully autoclavable all system components that contact liquid

4. Easy to disassemble and clean

5. Wide range of adapters fit on the hand operator for aspirating liquids from tubes, dishes, microplates, bottles, from single channel to 8-channel tip

6. Hydrophobic filter for avoiding air contamination or liquid overflow(this feature is in the catalogue but it is not on website)

Technical Parameters:

Model

SAFEVAC

Cat No.

7035100000

Bottle Volume

4L

Vacuum Range

0~600mbar

Max. Flow

15L/min(air)

Max. Aspiration Speed

17mL/s(Liquid )

Autoclave Component

Tube, waste bottle, operation handle

Noise Level

≤55dB

Power Supply

100~240VAC, 50/60Hz

Dimension(W*D*H)

180*240*450mm

Package Size(W*D*H)

570*420*220mm

Weight

3kg

Gross Weight

4.12kg

Wide range of adapters fit well with tube, microplate and disk plate for various of tasks, all of which can be fully autoclaved(At 121℃ 1 bar for 20 minutes. After autoclaving the equipment must be cooled down before use ).

Adapter:

A

8-channel tip detrusion adapter 200μl tip

B

8-channel needleφ1.5mm

C

Single needleφ2.5mm, 40mm

D

Single needleφ2.5mm, 120mm

E

Single needleφ1.5mm, 40mm

F

Single needleφ1.5mm, 120mm

G

Tip detrusion adapter 200μl tip

H

Tip detrusion adapter 1ml tip

I

SAFEVAC Handle bracket

J

Handle hoop(vacuum aspirator)
