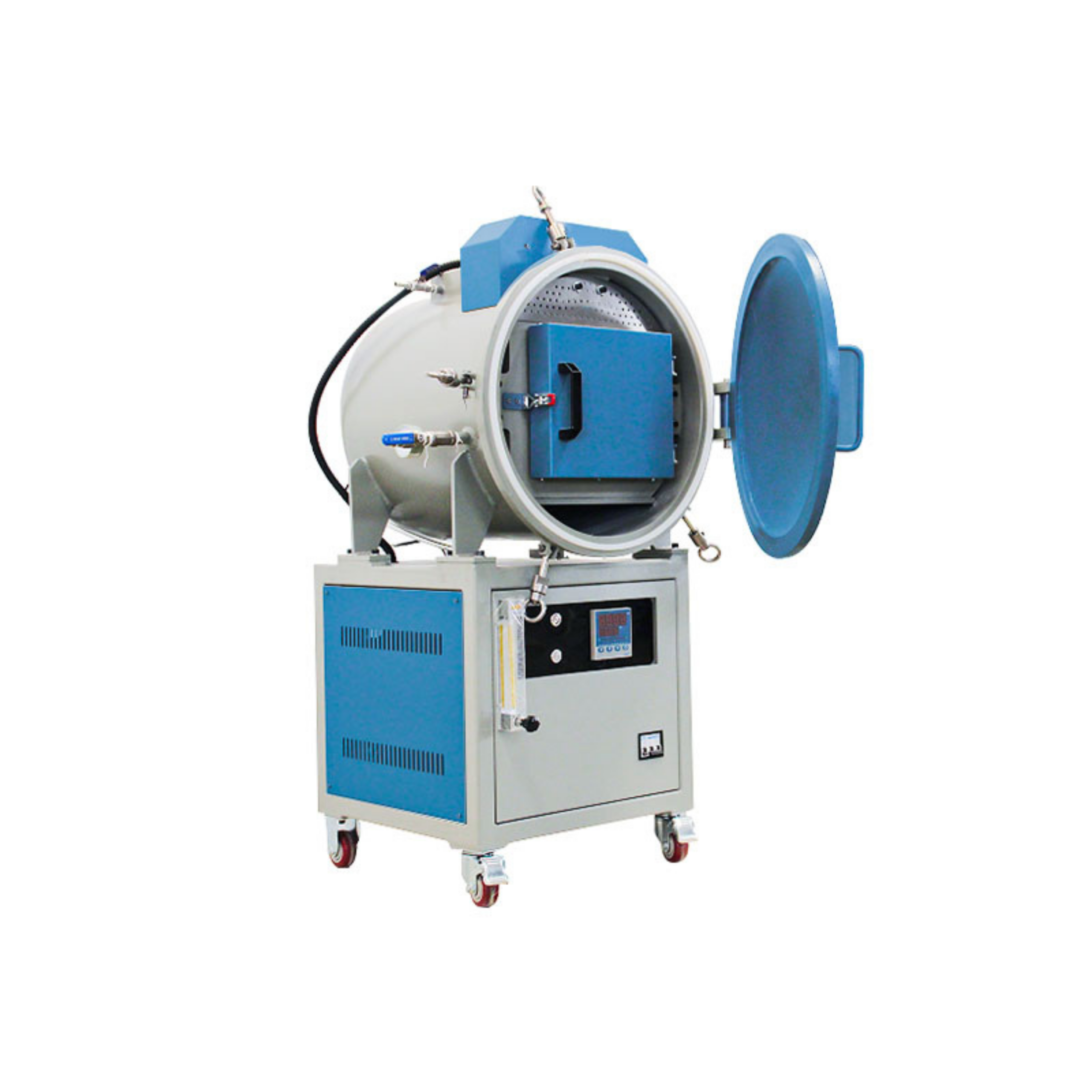

Vacuum Atmosphere Furnace MXV6-10TP
Features：
1. The quick-install flange is easy to use, equipped with standard vacuum spare parts and atmosphere spare parts
2. Double furnace door design structure, flange sealing, PTFE sealing ring, can ensure sealing
3. The top cover and furnace door are both squeezed and sealed with silicone O-rings, which are easy to remove, can be removed repeatedly, and have good air tightness.
4. The air inlet and air outlet are designed on one side of the furnace body, and inert protective gas can be introduced
5. Energy-saving performance, light weight, fast heating, saving time and effort
6. Modular structure of the control system, long-life design of key components of the equipment, simple and reliable process, good stability and high precision
Technical Parameters：
Model
MXV6-10TP
Short-term Maximum Temperature
1000℃
Long-term Maximum Temperature
950℃
Capacity
6L
Temperature stability
±1℃
Display Accuracy
±1℃
Heating Speed
1-20℃/min can be freely set
Furnace Material
Using polycrystalline alumina ceramic fiber material
Power Supply
Standard: 220V 50/60Hz, optional: 110V 50/60Hz
Packing Size
1250*1100*1400mm
Gross Weight
250kg
| Model | equipped with standard vacuum spare parts and atmosphere spare parts, The quick-install flange is easy to use |
|---|
