Description

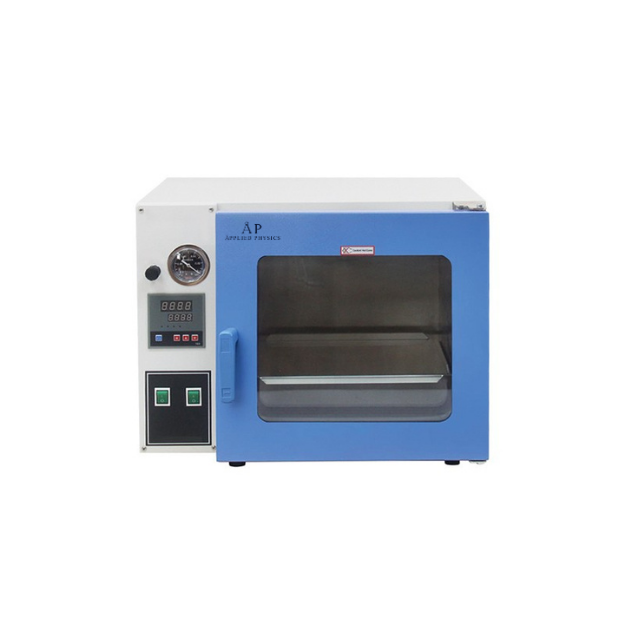

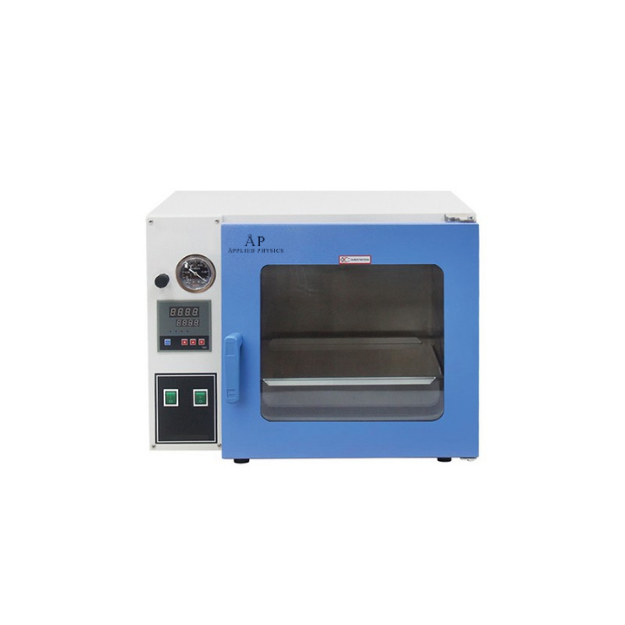

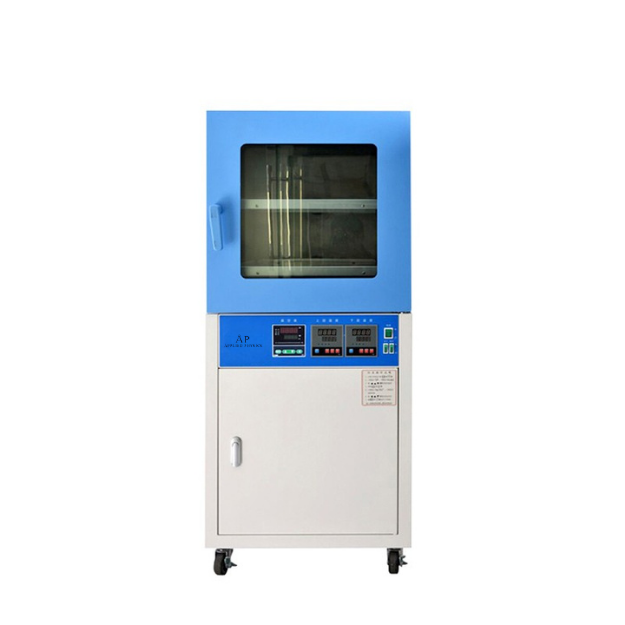

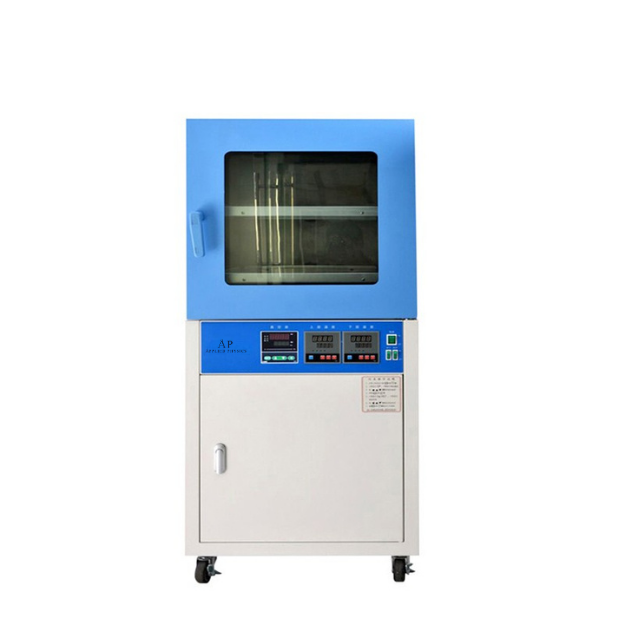

Vacuum drying oven is a kind of laboratory equipment for drying and heating treatment under vacuum environment, specially designed for drying heat-sensitive, easy to decompose and easy to oxidize substances, when working, it can keep a certain degree of vacuum in the working chamber, especially some items with complex composition can also be dried quickly. Features: 1. Outer material : cold rolled steel plate with spraying surface; inner material : SUS stainless steel plate. 2. PID microprocessor temperature control with LED display. 3. Integral molded silicone rubber door seal ring for good air tightness. 4. Toughened bulletproof double glazed doors. 5. With parameter memory function, automatically resume operation when power restoration. 6. The heater is located in the chamber on the shelf, and separate temperature control, with a short heating time, the same level of temperature uniformity is good.(Except BOV-30L/50L) Technical Parameters:
| Model | BOV-30V | BOV-50V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL | |
| Capacity | 23L | 53L | 91L | 213L | 91L | 213L | |
| Temp. Range | RT+10~200℃ | RT+10~250℃ | RT+10~200℃ | ||||
| Temp. Fluctuation | ±1℃ | ||||||
| Vacuum Degree | ＜133Pa | ||||||
| Vacuum Display | Pointer-type vacuum pressure gauge | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | LED digital display, push button input of the vacuum value | ||||
| Vacuum Control | Manual control | Automatic differential pressure control | Pressure sensor+deviation control | ||||
| Timing Range | 0~9999min | ||||||
| Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz(External transformer) | ||||||
| Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W | |
| Shelf | Aluminum shelf*1 | Aluminum shelf*2 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | |
| Standard Accessories | Shelves | ||||||
| Optional Accessories | Over temperature protection function, vacuum pump: 2FY-2C-N(AC220V, 50Hz) or 2XZ-2(AC220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube | Oil-free vacuum pump | |||||
| Internal Size(W*D*H)mm | 296*300*270 | 416*370*346 | 450*450*450 | 556*600*640 | 450*450*450 | 556*600*640 | |
| External Size(W*D*H)mm | 590*492*468 | 710*562*544 | 611*641*1398 | 721*794*1638 | 611*641*1398 | 721*794*1638 | |
| Package Size(W*D*H)mm | 670*610*600 | 790*660*670 | 710*710*1550 | 940*810*1800 | 710*710*1550 | 940*810*1800 | |
| 2FY-2C-N: 470*295*210 2XZ-2: 580*215*367 | |||||||
| Net Weight(kg) | 55 | 67 | 145 | 208 | 143 | 207 | |
| Gross Weight(kg) | 65 | 79 | 171 | 245 | 168 | 244 | |
