Applied Physics Corporation

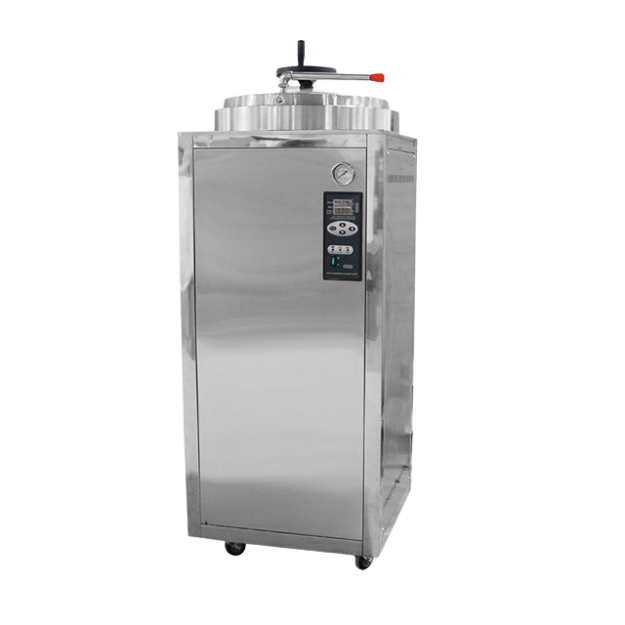

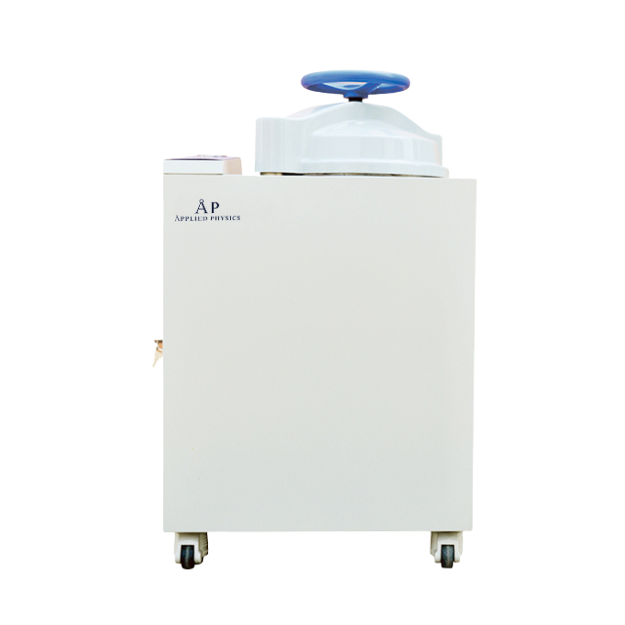

Vertical Autoclave BKQ-B120(II)

Vertical Autoclave BKQ-B120(II)

Voltage
Regular price $8,239.00 USD
Regular price Sale price $8,239.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Description

It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.

Features:

1. The hand wheel slides to open the door, which is fast and labor-saving.

2. Casters facilitate the movement of the equipment.

3. It has a fast maintenance window, and the electrical part does not need to remove the cover for maintenance.

4. Steam generation method: heating inside the main body, no external steam source is required.

5. Self-expanding silicone sealing ring has good sealing effect and long service life.  It is molded with transparent medical silicone.

6. Real-time detection and display of the temperature in the sterilization chamber, with a display accuracy of 0.1℃.

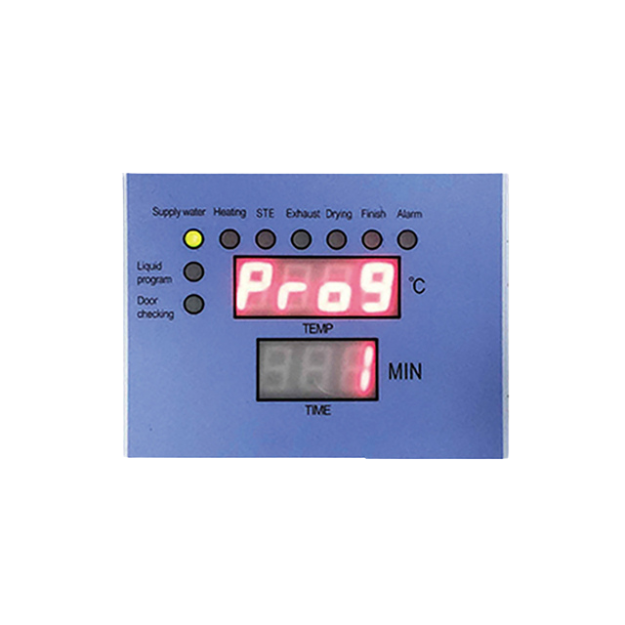

7. The LED digital tube displays temperature, time, alarm code and the indicator light shows the current operating status.

8. Using gravity displacement and positive pressure pulsating exhaust method to discharge the cold air in the load and sterilization room.

9. Optional printer to record the temperature during sterilization.

10. Inner water tank.

11. A variety of programs

There are exposed program, packaging program, rubber program, dressing program, liquid program, liquid customization, solid customization.

Technical Parameters:

Model BKQ-B120(II)
Capacity 120L
Designed Pressure 0.3 MPa
Working Pressure 0.217 MPa
Designed Temperature 137℃
Working Temperature 50~134℃
Temperature Precision 0.1℃
Chamber Material S30408
Chamber Size φ386*1055mm

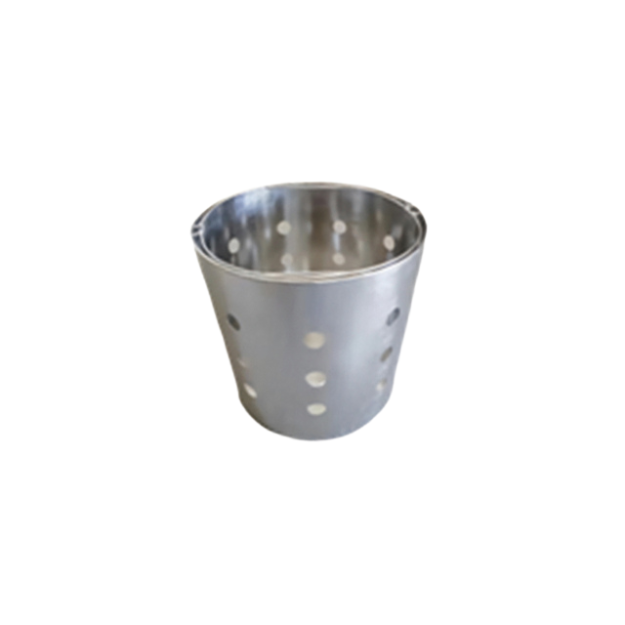

Basket φ365*360mm, 1 pc
Noise ≤65 dB
Altitude ≤2700 m
Standard Accessories Basket
Optional Accessories Printer
Consumption 5.2 KW
Power Supply AC380V, 50/60Hz (Standard); AC220V, 50/60Hz (Optional)
External Size (WDH) 6405501380 mm
Net Weight 120 kg
Package Size (WDH) 7507451540 mm
Gross Weight 140 kg
