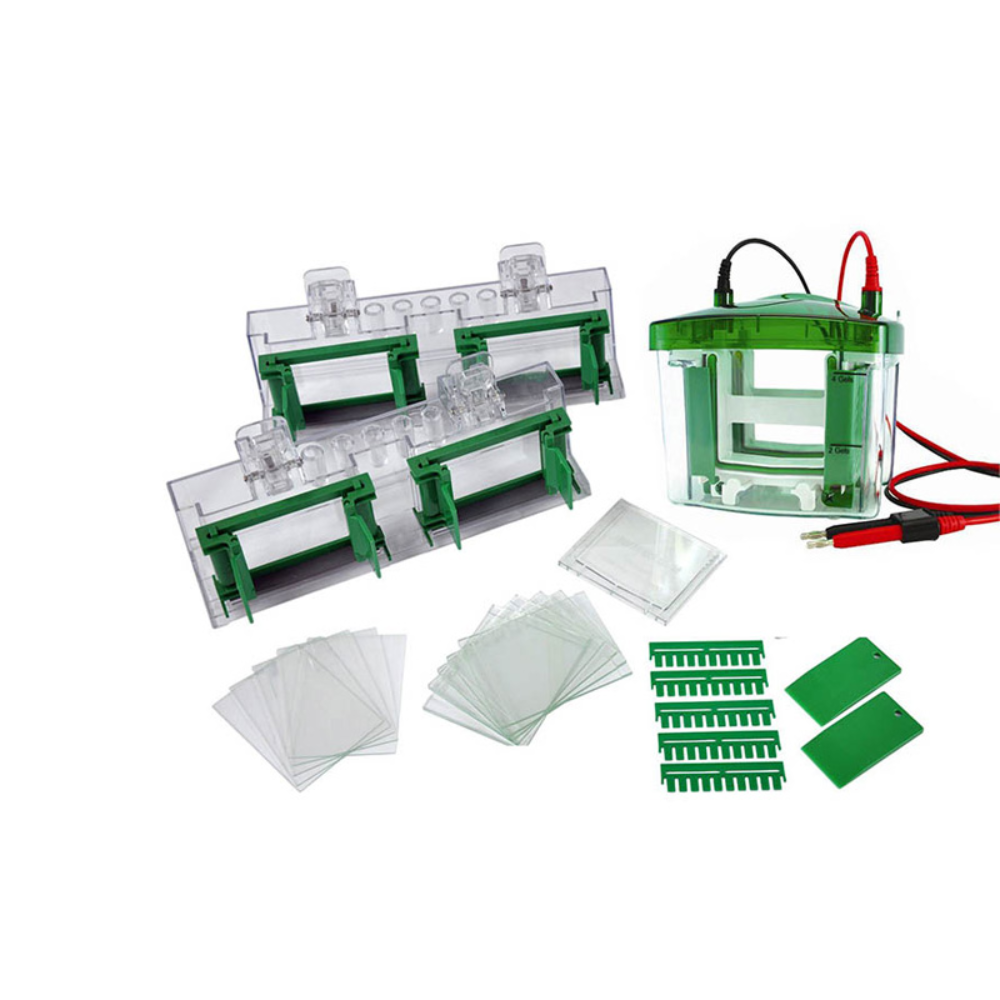

Vertical Electrophoresis Tank BK-VET02

Vertical Electrophoresis Tank BK-VET02 Features: 1. High-transparency polycarbonate injection molding, durable and easy to observe. 2. The integrated design of the glass cushion strip ensures that there is no leakage of glue. 3. The special glue making rack makes the glue making operation simple and reliable. 4. Open the cover and cut off the power to ensure the safety of the experiment. 5. The upper cover limit function ensures that the polarity of the electrode will not be connected incorrectly. 6. The power-off function of opening the lid ensures the safety of the experiment. 7. It can make double-board glue at the same time, with clear strips. 8. 99.99% high-purity platinum electrode, the best conductivity, strong corrosion resistance. 9. Recommended power supply: BEP-3001, BEP-6001, BEP-600D. Technical Parameters: Model BK-VET02 Glass Tray(W*L) Thick type: 101*83mm, thin type: 101*73mm Gel Trays(W*L) Hand glue: 83*73mm, precast glue: 86*68mm Comb Thickness Standard 1.0mm, optional 1.5mm Comb Throughput 10 samples Amount of Gel 1~4pcs No. of Samples 10~40pcs Buffer Volume 1000ml Standard Accessories Body tank *1, Cap*1, Electrode core*1 set, Gel casting base*2, Gel frame*4, Single glue baffle*1, Gel shovel*1, Glass plates*5 pairs, 1.0mm thickness10 wells comb*5 External Size(L*W*H) 180*130*130mm Package Size(L*W*H) 400*350*300mm Gross Weight 3.9kg
