Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in food, chemical, biological products and other fields.
$0.00
Technical Parameters:
| Model | BK-FD12S | BK-FD12P | BK-FD12T | BK-FD12PT | ||

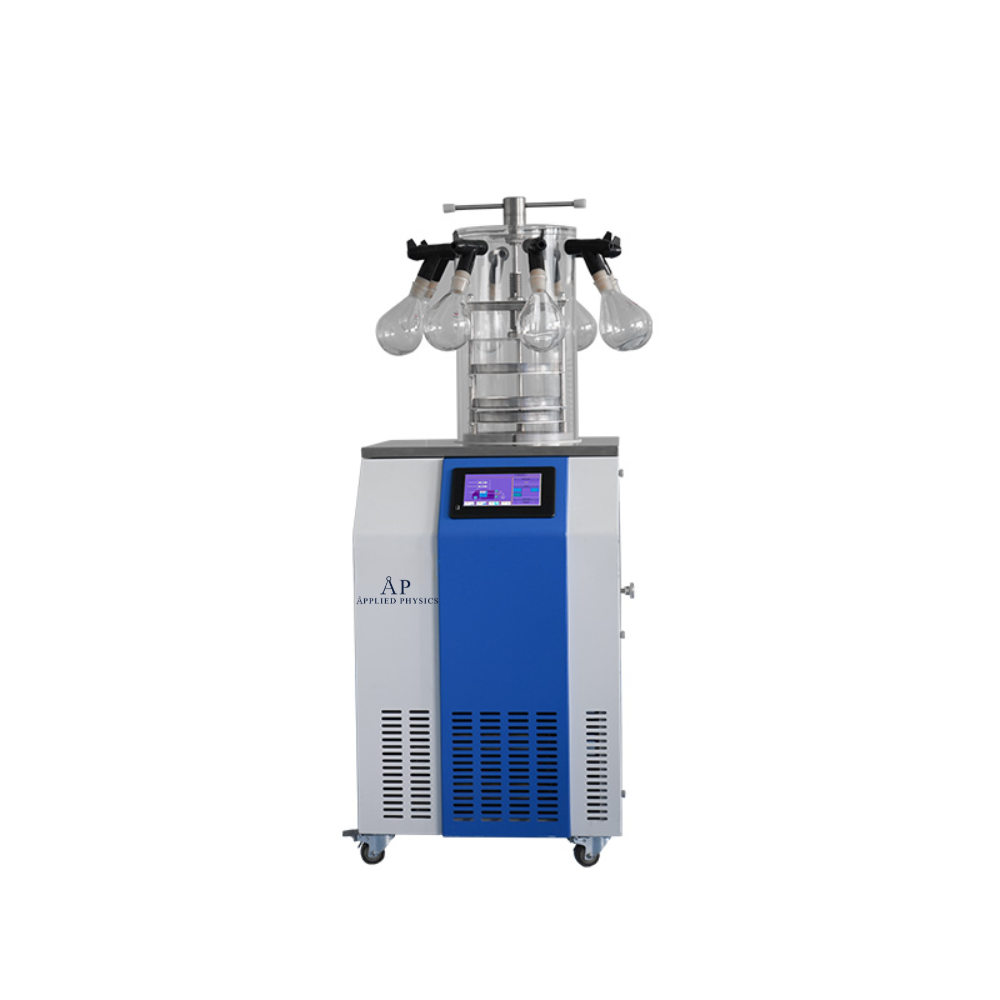

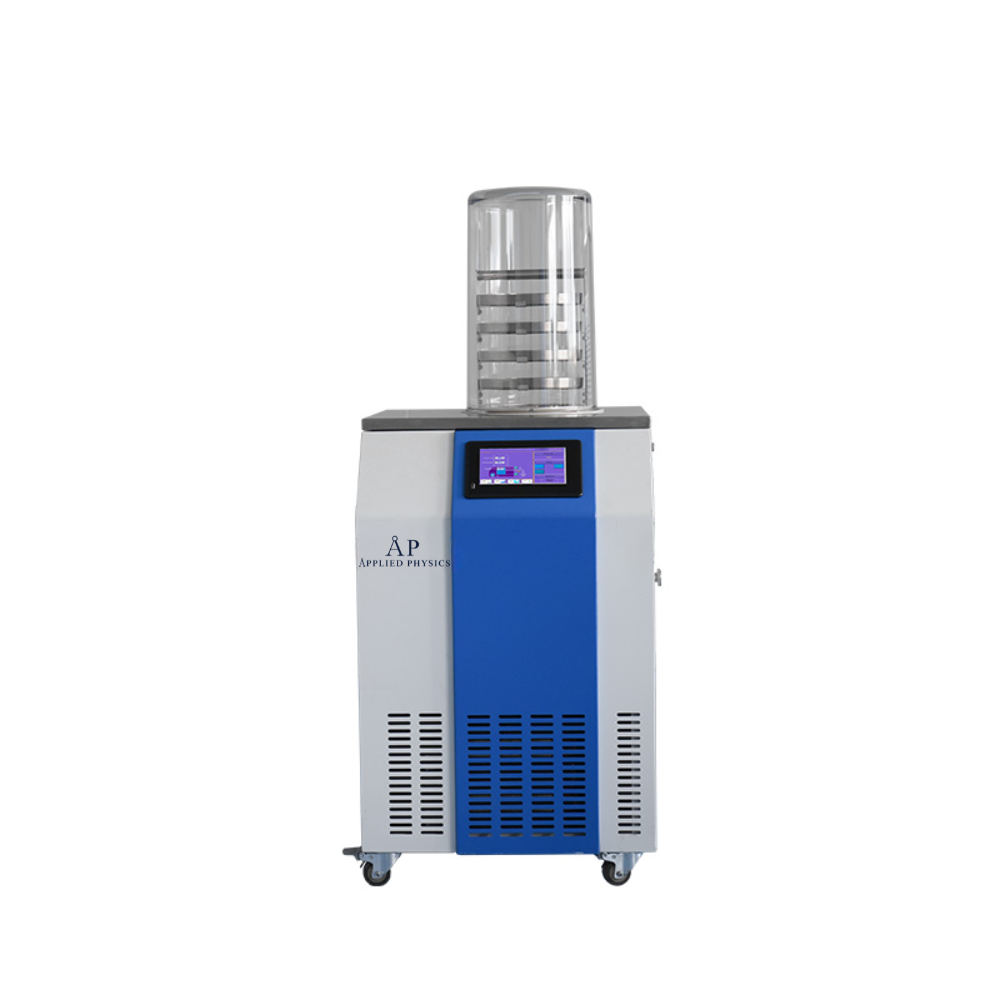

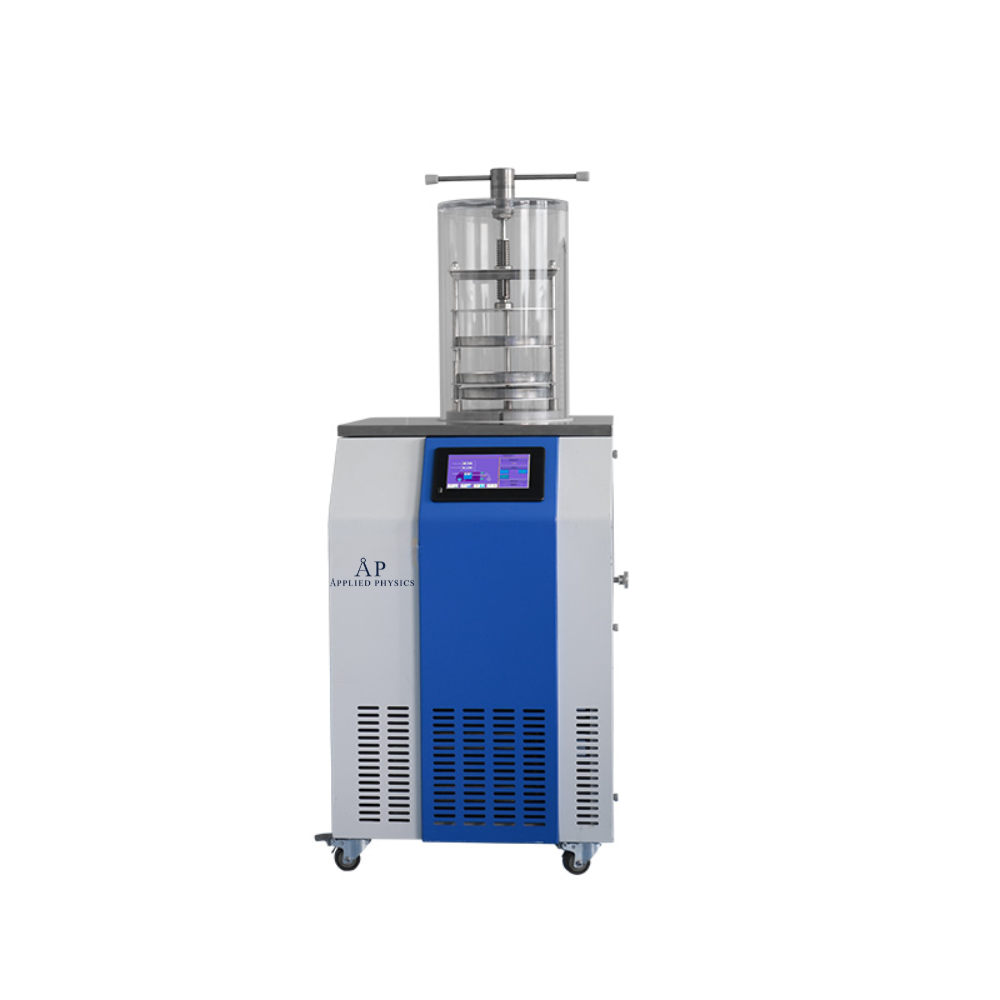

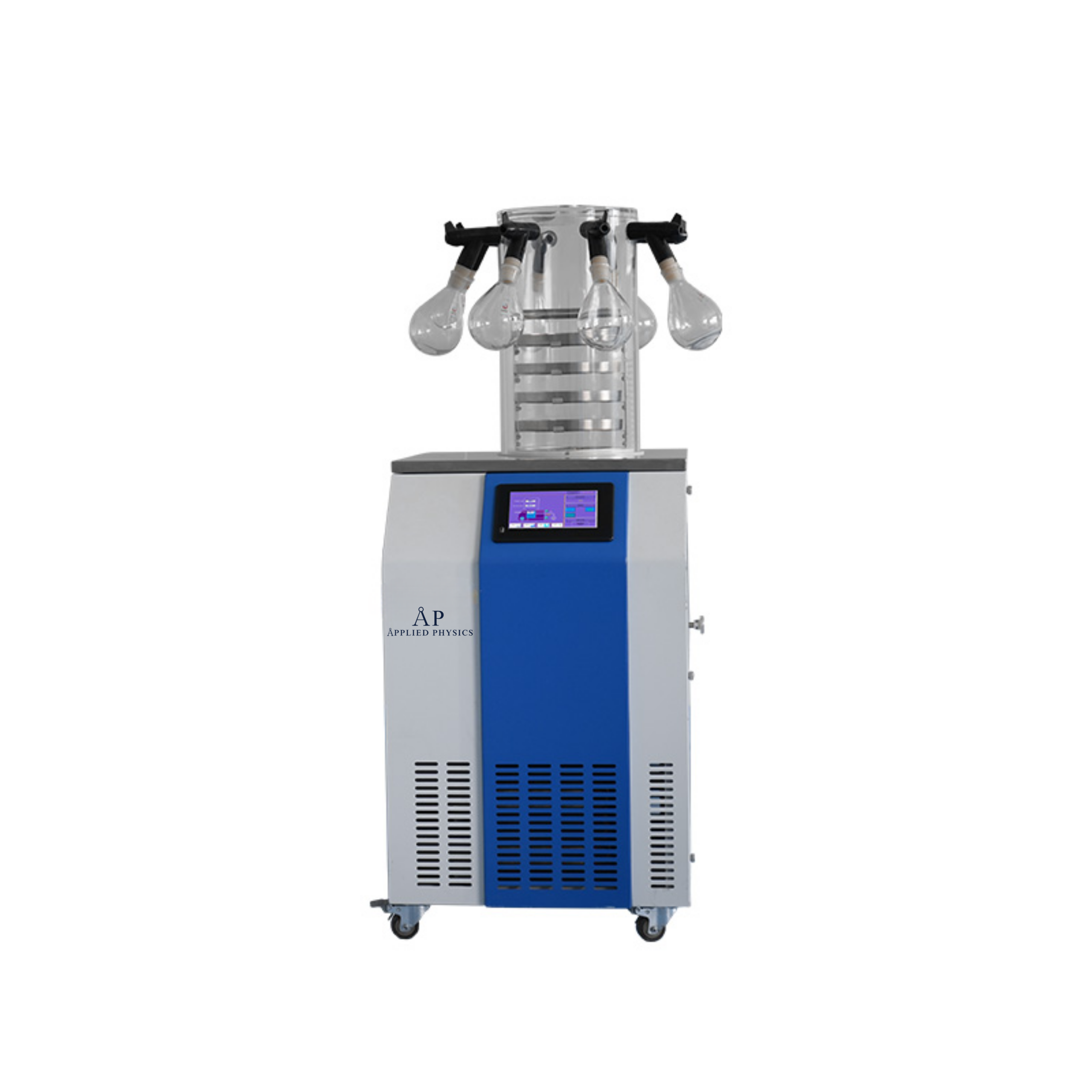

| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering
chamber with8 port manifold |
||
| Freeze Drying Area | 0.12㎡(Standard)
0.18㎡(Optional) |
0.08㎡ | ||||
| Tray | 4pcs(Standard)
6pcs(Optional) |
3pcs | ||||
| Height Between Trays | 50mm | / | ||||
| Cold Trap Temperature | ≤-60℃(No load)(-80℃ optional) | |||||
| Cold Trap Capacity | 9L | |||||
| Cold Trap Size(Diameter*H) | Φ219*240mm | |||||
| Vacuum Degree | ≤5Pa | |||||
| Water Capture Capacity | 3~4L/24h | |||||
| Tray Size(D*H) | Φ200*20mm | Φ180*20mm | ||||
| Freeze Drying Time | 24~36h | |||||
| Suggested Loading
Capacity (Liquid) |
1.2L(Standard)
1.8L(Optional) |
0.8L | ||||
| Total Loading Capacity(Liquid) | 2.4L(Standard)
3.6L(Optional) |
1.6L | ||||
| Drying Chamber Size(Diameter*H) | Φ260*420mm | Φ260*465mm | ||||
| Total Qty. of Vial Φ22 | 196(Standard)
294(Optional) |
147 | ||||
| Total Qty. of Vial Φ16 | 396(Standard)
594(Optional) |
297 | ||||
| Total Qty. of Vial Φ12 | 656(Standard)
984(Optional) |
492 | ||||
| Refrigerant | -60℃: R600a, R23
-80℃: R404a, R23 |
|||||
| Cooling System | Standard: Air cooling
Optional: Water cooling |
|||||
| Power Supply | Standard: 220V, 50Hz
Optional: 220V, 60Hz, 110V, 60Hz |
|||||
| Power Consumption | 1400W | |||||
| Standard Accessory | Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models)
Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8pcs(only for model BK-FD12P/PT), USB port |
|||||
| Optional Function & Accessory | Vacuum pump of other specifications, oil mist filter, automatic air intake function, automatic water drainage function, and other customization(for all models)
600ml/1200ml wide-mouth flask(for BK-FD12P/PT) Tray*2(for BK-FD10S/P) |
|||||
| External Size(W*D*H) | 520*625*865mm | |||||
| Package Size(W*D*H) | Main Body | 665*765*1140mm | ||||
| Accessory | 720*605*560mm | |||||
| Gross Weight | -60℃: 95kg
-80℃: 114kg |
|||||
| 45kg | 49kg | 54kg | 56kg | |||
| Model | BK-FD12S, BK-FD12P, BK-FD12T, BK-FD12PT |
|---|
