Vertical Freeze Dryer

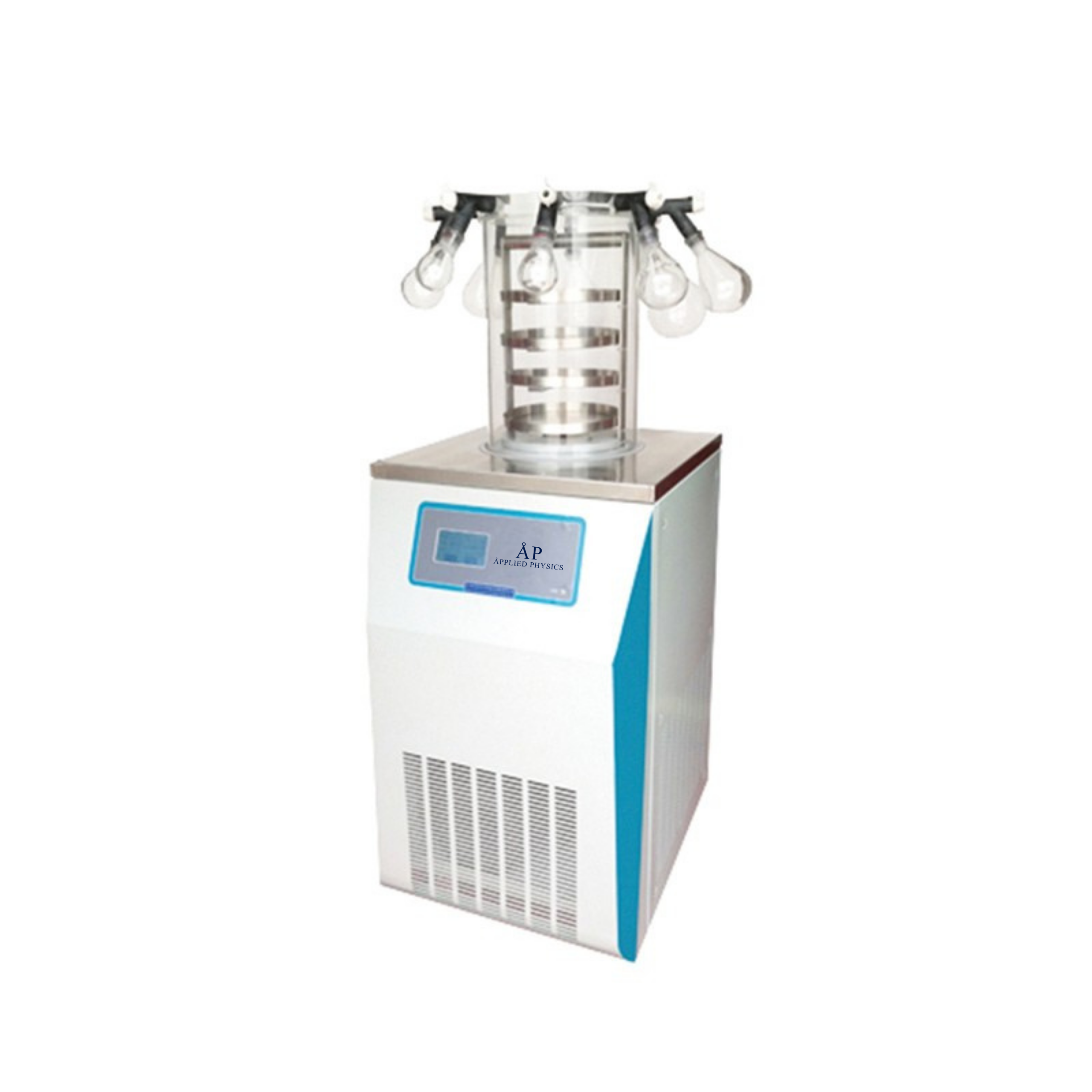

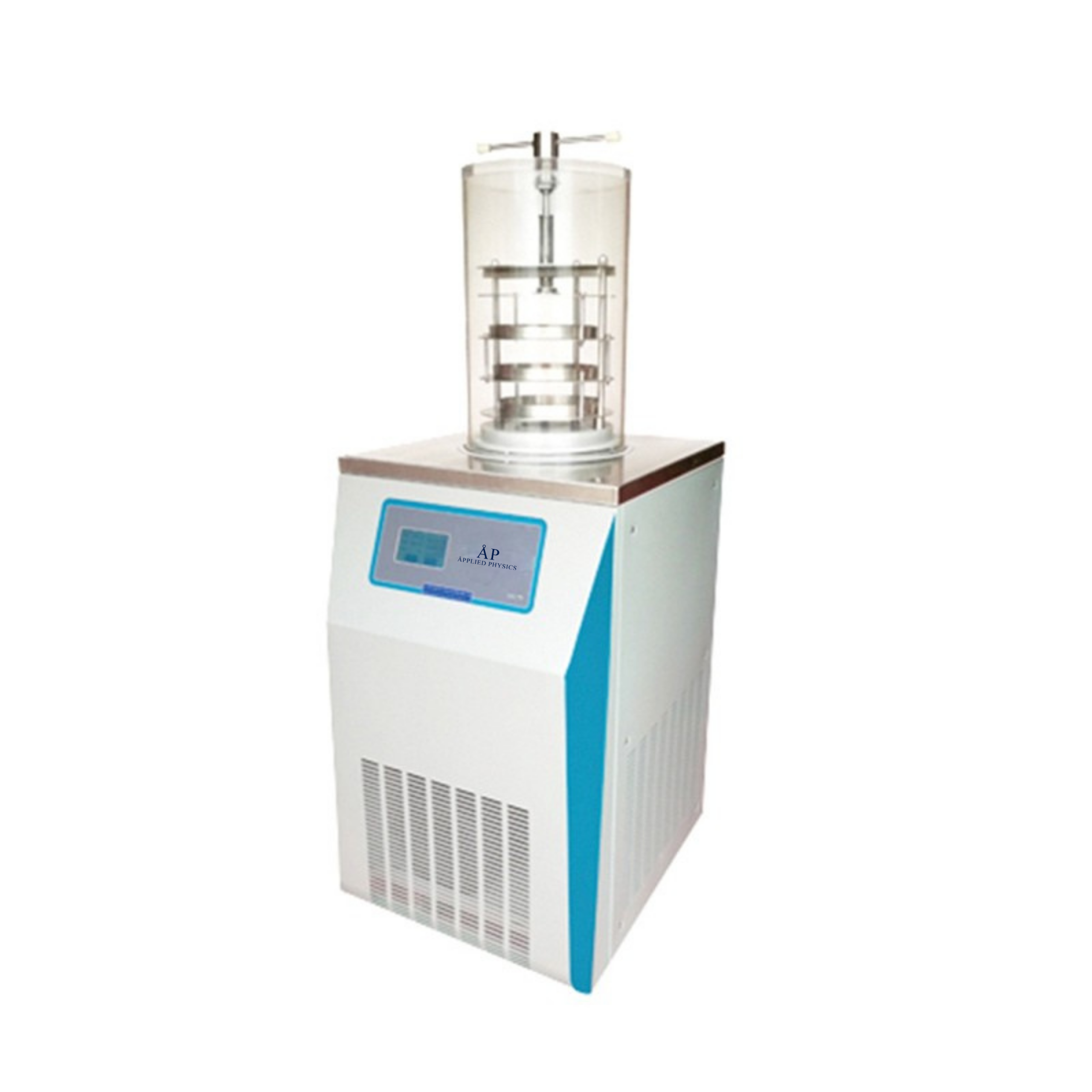

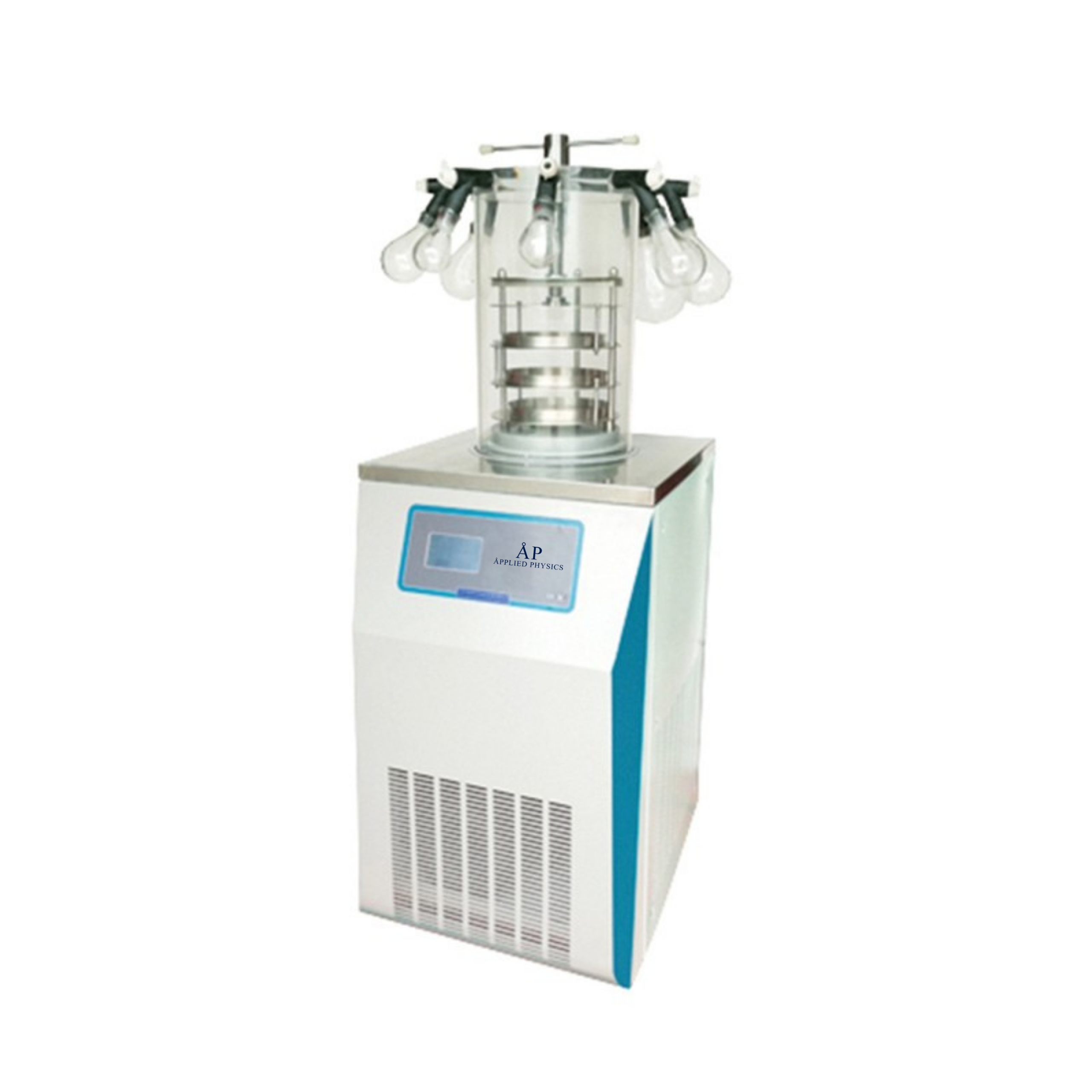

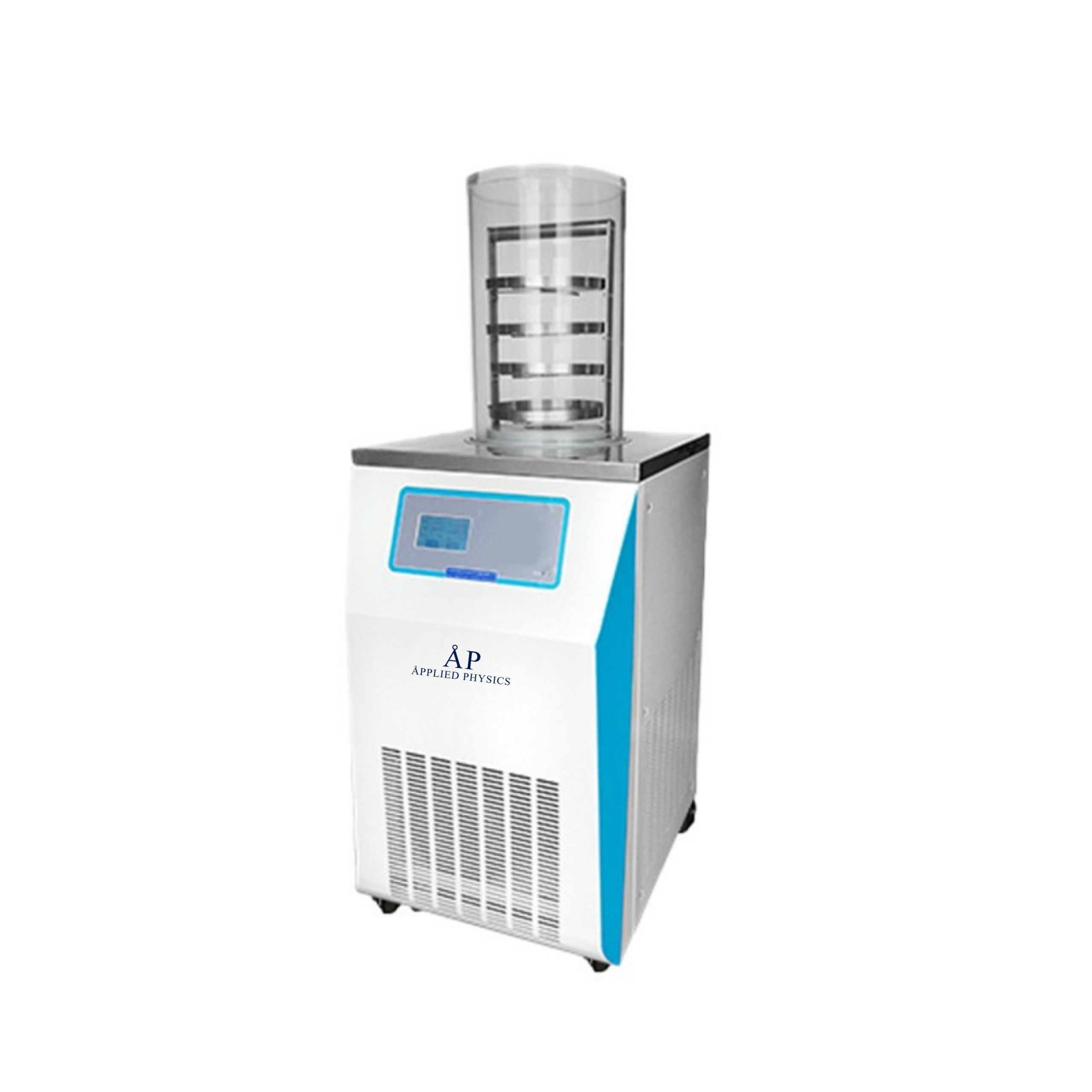

Vertical Freeze Dryer Models: Model BK-FD18S(-56/-80) BK-FD18P(-56/-80) BK-FD18T(-56/-80) BK-FD18PT(-56/-80) Type Standard chamber Standard chamber with 8 port manifold Stoppering chamber Stoppering chamber with 8 port manifold Freeze Drying Area 0.18m² 0.09m² Tray 4pcs 3pcs Height Between Trays 70mm Cold Trap Temperature ≤-56℃/-80℃(Optional) Cold Trap Capacity 23L Cold Trap Size (Dr*H) Φ270*400mm Vacuum Degree <5Pa Water Capture Capacity 6kg/24h Tray Size (D*H) Φ240*18mm Φ200*18mm Freeze Drying Time 18-36h Loading Capacity/Shelf (Liquid) 0.45L 0.3L Total Loading Capacity (Liquid) 1.8L 0.9L Drying Chamber Size (D*H) Φ300*445mm Φ300*465mm Φ300*540mm Φ300*570mm Can Load Vials Qty Φ22mm / 270 Φ16mm / 555 Φ12mm / 990 Refrigerant R404+R23 Cooling System Air cooling Consumption -56℃: 1.4KW; -80℃: 2.1KW. -56℃: 1.4KW; -80℃: 2.1KW. Power Supply AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) Standard Accessory -56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) Optional Function & Accessory -80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) External Size (W*D*H) 630*580*970/1415mm 630*580*970/1435mm 630*580*970/1510mm 630*580*970/1810mm Package Size(W*D*H)mm / Gross Weight Main Body 790*690*1200(148kg) Drying Chamber 420*420*560(14kg) 430*430*660 (26kg) Vacuum Pump 620*370*450 (32kg)
