Description
Features:
1. Vertical laminar flow, double-sided operation.
2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet.
3. Equipped with pre-filter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter.
4. Work zone is made of SUS304 material, beautiful and corrosion resistance.
5. The front and side Windows are made of 5mm thick tempered glass.
6. Footmaster casters design, convenient cabinet movement and fixation.

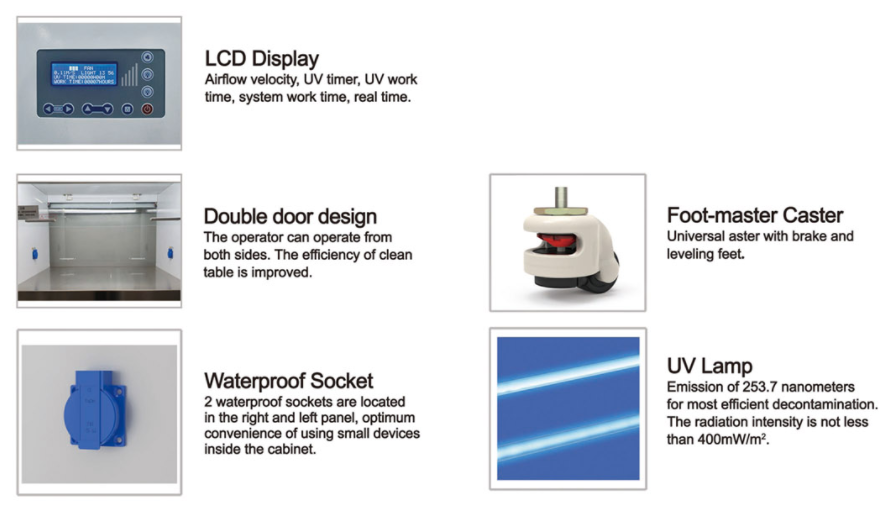

7. LCD screen, real-time display of running status (air velocity, timer, UV lamp time, HEPA filter running time).
8. With ultraviolet lamp, fan appointment timing function.
9. Unit conversion function, which switches units between PA and m/s.
10. The UV lamp is turned on after 5S to protect the safety of the operators.
11. Perfect alarm system:
(1) Ultra-high filter pressure alarm
(2) Filter failure replacement alarm
(3) Front window opening safe height alarm
(4) Low wind speed alarm
12. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.
Technical Parameters:
| Model | BBS-DSC-M | BBS-SSC-M |
| External Size(W*D*H) | 1100*760*1850mm | 1500*760*1850mm |
| Internal Size(W*D*H) | 940*650*615mm | 1340*650*615mm |
| Work Surface Height | 750mm | |
| Safety Height | 200~350mm | |
| Max Opening | 400mm | |
| Display | LCD display | |
| Airflow Velocity | 0.30~0.45m/s | |
| Material | Working Area: 304 stainless steel
Main Body: 1.0mm cold-rolled steel with anti-bacteria powder coating Front Window: 5mm toughened glass, anti-UV |
|
| Pre-filter | Polyester fiber | |
| HEPA Filter | One, 99.995% efficiency at 0.3μm | |
| Front Window | Manual | |
| Noise | ≤65dB(A) | |
| Illumination | ≥300lx | |
| Vibration | ≤5μm(rms) | |
| Safety | Colonies Number≤0.5CFU/30min | |
| Clean Level | ISO level 5(Class 100) | |
| Waterproof Sockets | Two sockets, Max. Power: 1000W | |
| Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz(Optional) | |
| Consumption | 1150W | 1250W |
| LED Lamp | 12W*1 | 16W*1 |
| UV Lamp | 20W*1 | 40W*1 |
| Standard Accessories | Base stand, LED lamp, UV lamp, Waterproof socket*2 | |
| Package Size(W*D*H) | 1240*1030*1350mm | 1640*1030*1350mm |
| Gross Weight | 195kg | 231kg |
