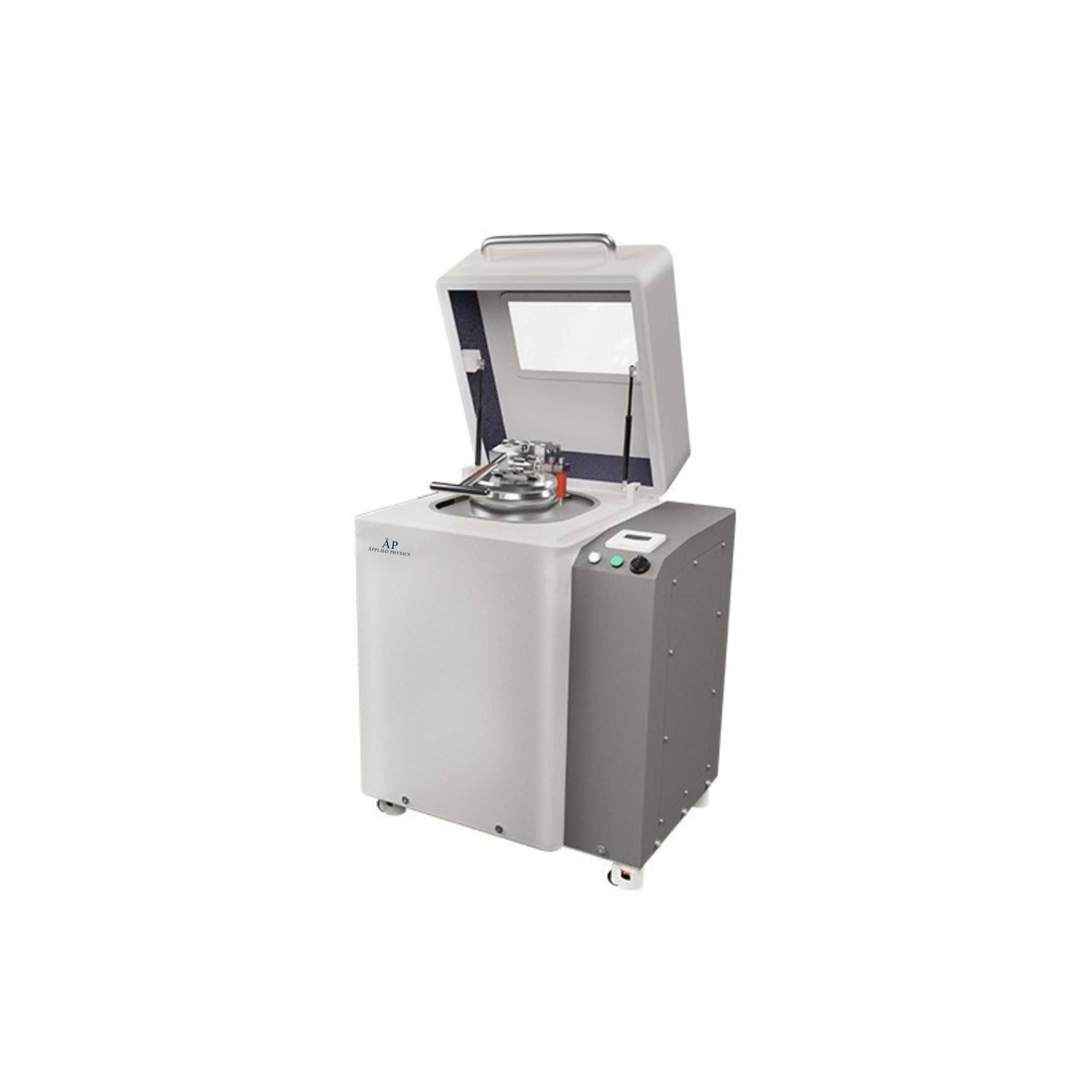

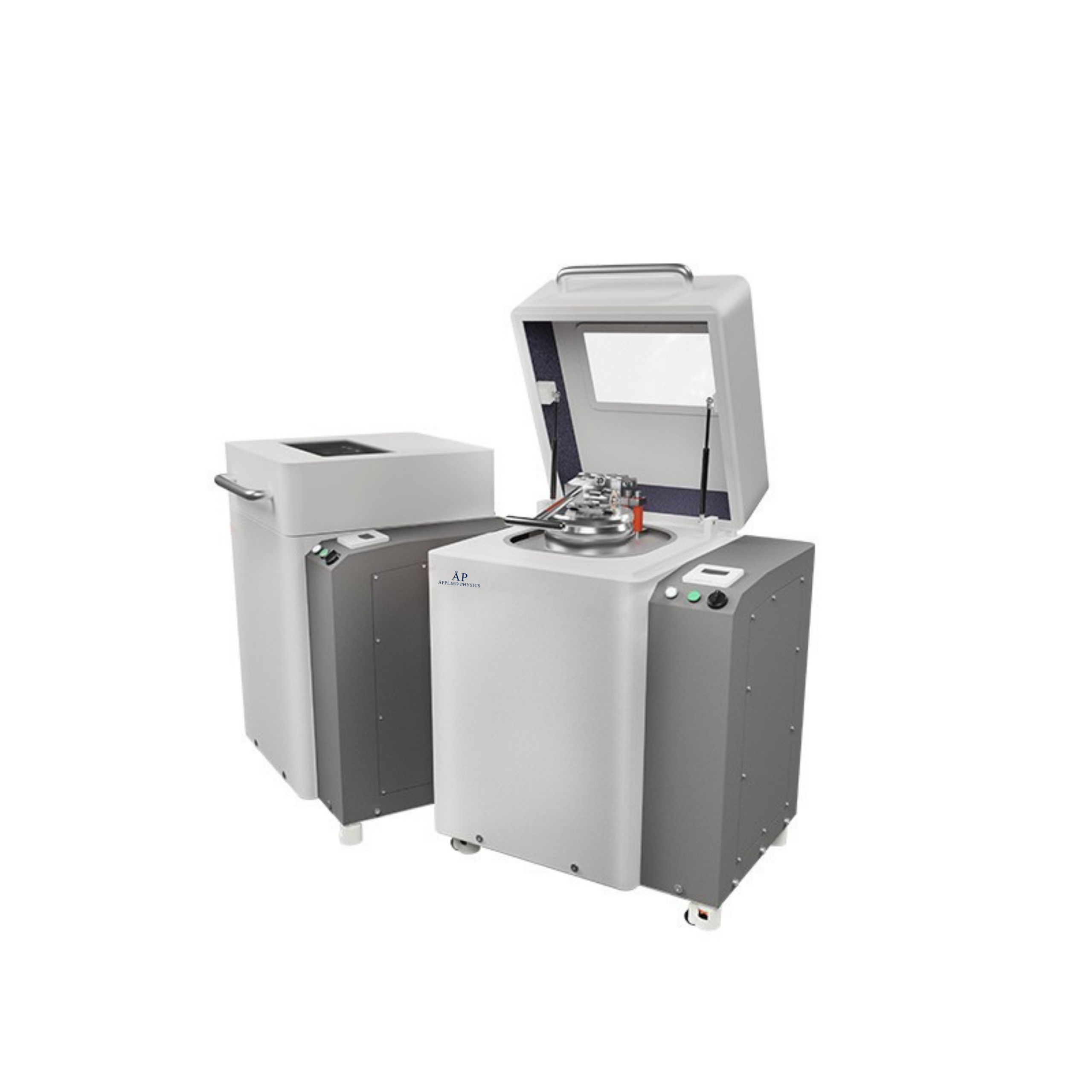

Vibration Mill BK-VBM01
Features
1. It has good horizontal grinding force, high grinding efficiency, comfortable control button feel, simple operation, and a clamping device that achieves fast pressing, sturdy and durable.
2. The appearance and posture are generous, and the feet are equipped with pulleys, making it easy to move.
Technical Parameters
Model
BK-VBM01
Grinding Disc Speed
1480r/min
Control Device
Master switch/button switch/digital time controller
Motor Phase Loss/Overcurrent Protection
Have
Cover opening and shutdown
Have
Grinding Disc Seat
Single
Clamping Device
Quick clamping
Grinding Disc Material
Tungsten carbide
Outsourced steel sleeve
Grinding Disc Specifications
100ml（1-50g）
Optional Grinding Disc Material
High chromium steel, agate, zirconia, corundum, and high manganese steel
One Grinding Time
60-180S
Feed Particle Size
≤8mm
Grinding Particle Size
≤0.074mm
Equipment support feet
4 fixed and sliding feet
Power Supply
AC 380V±5%, 50Hz, three-phase, external air switch, no plug
External Dimensions (mm）
680*620*915
Net Weight(kg)
160
Packing Size(mm)
840*740*1090
Gross Weight(kg)
185
Remarks: There are two power options, 1.1KW and 1.5KW. 1.1KW corresponds to 960 rpm, 1.5KW corresponds to 1480 rpm, and the prices of both are the same.
| Model | and a clamping device that achieves fast pressing, comfortable control button feel, high grinding efficiency, It has good horizontal grinding force, simple operation, sturdy and durable. |
|---|
