Introduction:
It is the new technical instrument in air condition workshop and clean workshop. And it is widely applicable in electron, chemicals, mechanism, university and lab. Fume hood can be used in operation of potential risk or unknown infected factors, and the experiment of flammability, explosive volatilization and narcotics. It can protect operator and samples.

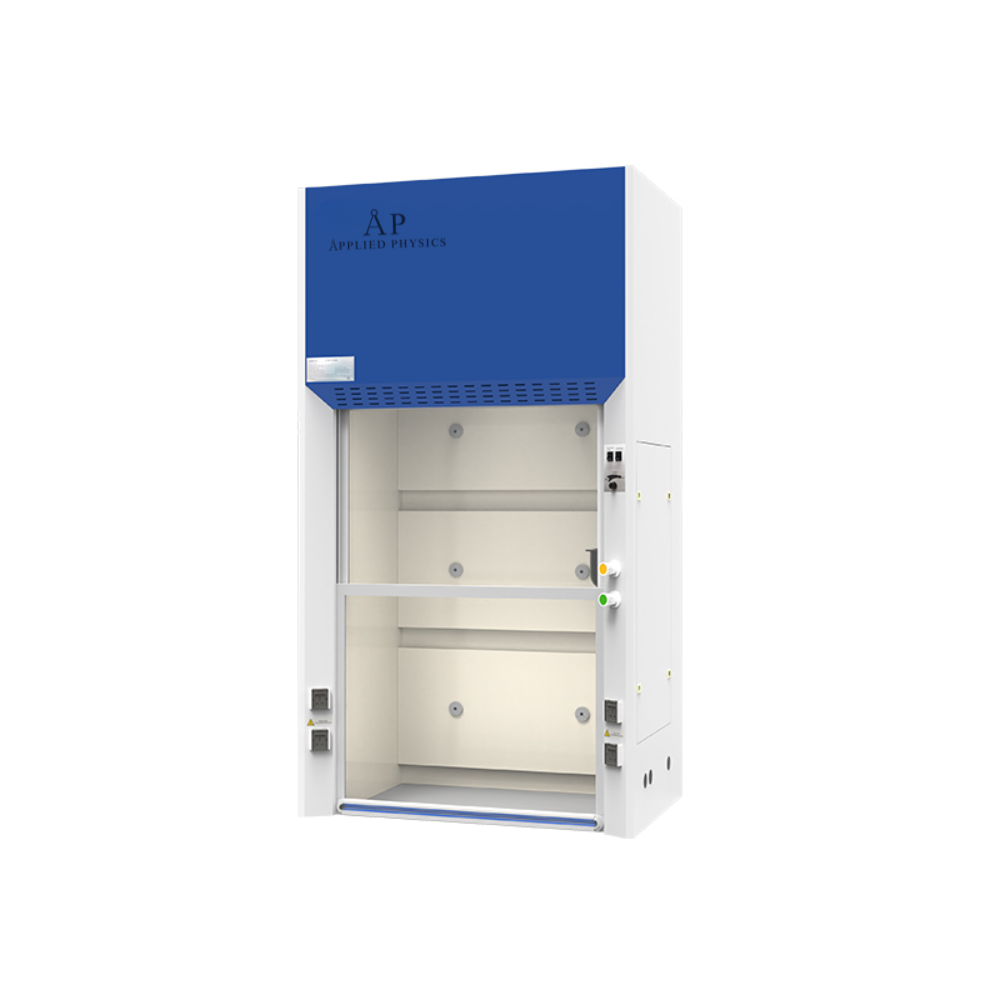

Walk-in Fume Hood FH(W) Series
Features:
1. With memory function in case of power-failure.
2. Operators are available to walk into the fume hood to operate if need.
3. Large room exhaust system, suitable for large laboratory instruments and equipment.
Technical Parameters:
Model
FH1200(W)
FH1500(W)
FH1800(W)
External Size(W*D*H)
1200*800*2250mm
1500*800*2250mm
1800*800*2250mm
Internal Size(W*D*H)
980*550*1670mm
1280*550*1670mm
1580*550*1670mm
Max Opening
1300mm
Exhaust Airflow Volume
1150m³/h
1500m³/h
1850m³/h
Inflow Air Velocity
0.3~0.8m/s
Noise
≤62dB
Vibration
Amplitude≤5μm
Illumination
≥800Lux
Fluorescent Lamp
12W*2
16W*2
16W*2
Power Supply
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption
400W
500W
800W
Front Window
Manual, 5mm toughened glass, height adjustable
Material
Exterior
1.0mm cold-rolled steel with bacteria powder coating
Interior
Compact laminate board with good acid and alkali resistance function
Standard Accessory
External blower, LED lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets*4, 5 meters φ300mm PVC exhaust duct
Sockets
Total load of 4 waterproof sockets: ≤500W
Package Size(W*D*H)
Main body
1400*1050*2450mm
1710*1050*2450mm
2010*1050*2450mm
Exhaust Blower
970*810*720mm
1040*890*710mm
1040*890*710mm
Gross Weight
300kg
340kg
390kg
| Model | FH1200(W) FH1500(W) FH1800(W) |
|---|
