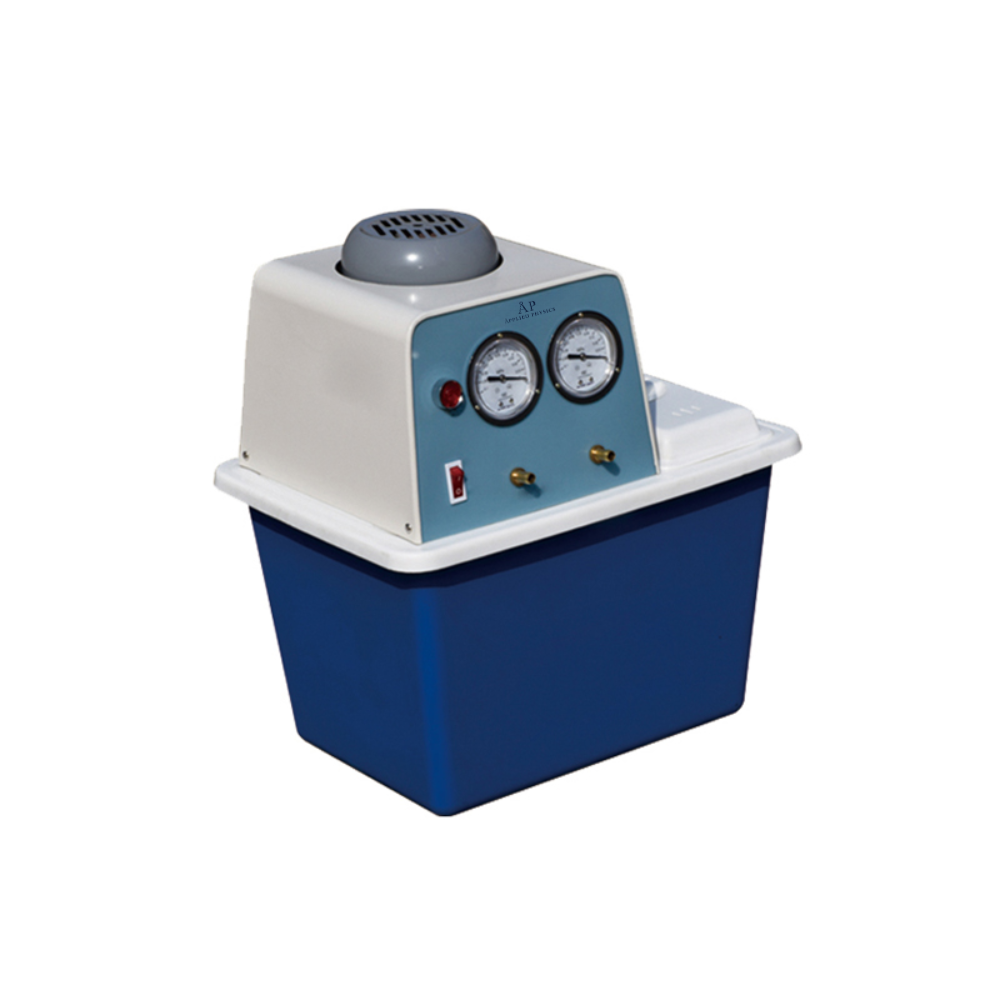

Water Circulating Vacuum Pump SHZ-DIII SHZ-95B

Water Circulating Vacuum Pump SHZ-DIII SHZ-95B

$0.00

The Water Circulating Vacuum Pump is an efficient and environmentally friendly vacuum generation system widely used in laboratories and industrial applications.

SKU: AP-Water-Circulating-Vacuum-Pump-SHZ-DIII-S Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Water Circulating Vacuum Pump SHZ-DIII SHZ-95B

Technical Parameters:

Model

SHZ-DIII(Four gauge four pumping)

SHZ-95B

Pump Head

4

5

Speed of Evacuation

10L/Min

Vacuum

-0.098Mpa

Circulating Pump Flow

40L/min

80L/min

Pump Lift

12m

Material

Anti-corrosion

Anti-corrosion or stainless steel

Consumption

370W

370W

Capacity

15L

50L

Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz

Package Size(W*D*H)

460*370*570mm

520*430*900mm

Gross Weight

17kg

30kg

Applicable Rotary

Evaporator Model

BK-RE-1A, RE-2010, RE 100-Pro, RE-2000A, RE-2000B, RE-2000E, RE-52A, RE-52C, RE-5299, RE-201D, RE-301, RE-501

ExRE-1002, ExRE-2002, ExRE-5003, RE-1002, RE-2002,

RE-5003

Note: Vacuum pump does not have the function of adjusting vacuum degree, if you need this function, you should match the vacuum control instrument.

Additional information

Model

HZ-DIII, SHZ-95B
