Description

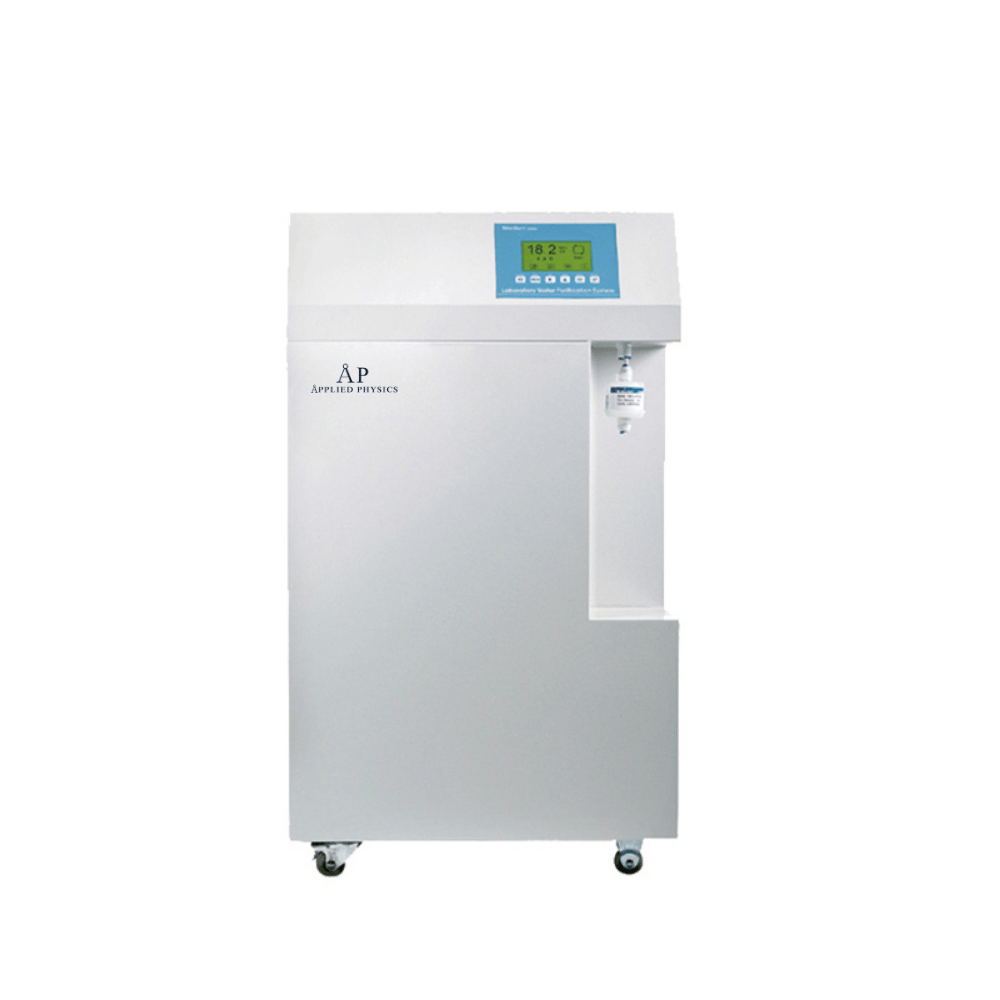

Features: 1. UV type with UV lamp, double wavelength(185&254nm), sterilizer and reduce TOC, expand the usage range. 2. UF type with UF filter, eliminate the endotoxin efficiently. 3. Other features same as automatic RO/Dl water purifier. Technical Parameters:
| Model | SCSJ-VI | SCSJ-VII | SCSJ-VIII | SCSJ-IX | |
| Basic | Eliminating Endotoxin UF | Low TOC UV | Synthesizing UVF | ||
| Water Output Type | RO and ultra-pure water | ||||
| Water Output Speed | 45/63/94/125L/H | ||||
| Purifying Procedure | PF+AC+RO +AC+DI | PF+AC+RO+AC +DI+UF | PF+AC+RO+AC +UV+DI | PF+AC+RO+AC +UV+DI+UF | |
| Water Supply Requirement | Tap Water: TDS<200ppm, 5~45°C, 1.0~4.0Kgf/cm² (if TDS>200ppm, extra pretreatment filter is recommended) | ||||
| Purification System | Pretreatment Unit | 20" PP filter*1, 20" granular active carbon filter*1, 20" active carbon block filter*1 | |||
| RO Unit | 300 GPD RO membrane*1(for 45L) 400 GPD RO membrane*1(for 63L)600 GPD RO membrane*1(for 94L) 400 GPD RO membrane*2(for 125L) | ||||
| Subsequent Unit | Organic matter purification column*1 12L ultra-purified column(imported resin)*1 0.2μm imported PES terminal filter*1 Ultra purification column*2 MWC05000D UF ultrafiltration module( SCSJ-VII and SCSJ-IX) Dual wavelength(185nm&254nm) UV lamp( SCSJ-VIII, SCSJ-IX ) | ||||
| Ultrapure Water Quality | Resistivity(25°C) | 18.2MΩ.cm | |||
| Heavy Metal Ion | <0.01ppb | ||||
| TOC | <10ppb | <3ppb | |||
| Bacteria | <0.01cfu/ml | ||||
| Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml | |
| Particle(>0.2μm) | <1/ml | ||||
| RNases | N/A | <1pg/ml | N/A | <1pg/ml | |
| DNases | N/A | <5pg/pl | N/A | <5pg/pl | |
| RO Water Quality | Ion Rejection Rate | 97%~99%(New RO membrane) | |||
| Organic Rejection Rate | >99%, when MW>200 Dalton | ||||
| Particles and Bacteria Rejection Rate | >99% | ||||
| Flow Rate | 3.0L/min(when there is water in the water tank) | ||||
| Power Supply | AC220V, 50/60Hz; AC110V, 50/60Hz | ||||
| Consumption | (45/63L/H): 120W; (94/125L/H): 240W | ||||
| Standard Configuration | Main body(Include 1 set of purification column), 2 built-in 15L tank, accessory pack | ||||
| External Size(W*D*H) | 640*540*1110mm | ||||
| Package Size(W*D*H) | 650*750*1280mm | ||||
| Gross Weight | 90kg | ||||
