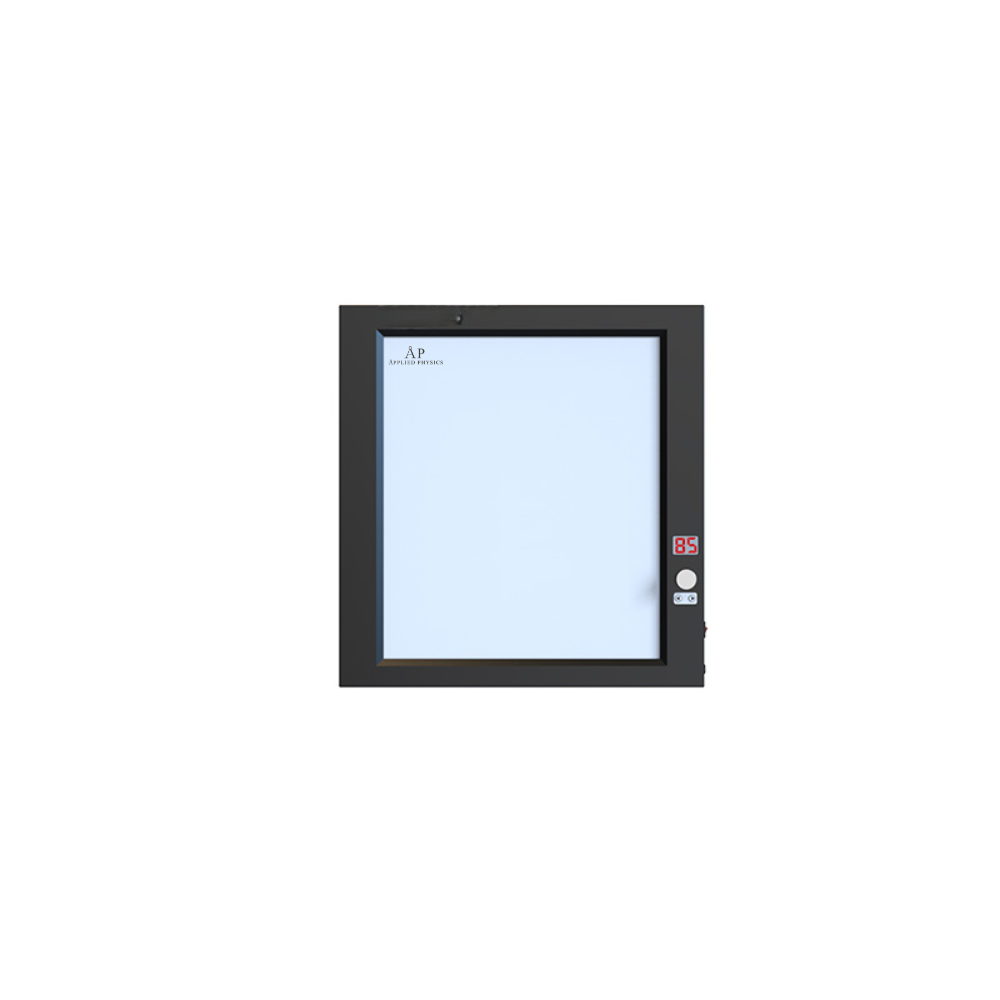

X-ray Film Viewing Lamp

Description

X-ray Film Viewing Lamp

Features:

1. It has automatic sensing function. When the film viewing lamp is inserted into the film, the film insertion area will light up automatically.

2. The LED color temperature is above 10000K, which makes your eyes less likely to get tired after long-term viewing.

3. The brightness of the light source can be randomly adjusted from 1% to 100%, and supports brightness memory.

4. Imported mitsubishi observation screen is used, which is durable, does not deform or discolor.

5. Aluminum alloy frame, rapid heat dissipation, reducing LED light and color decay, strong and durable.

6. The light source adopts ultra-bright LED cold light source, and the maximum brightness of the observation screen reaches more than 4500cd/m2.

Technical Parameters:

Model

BH-GPD01

BH-GPD02

BH-GPD03

BH-GPD04

Type

1 Ray Light Panel

2 Ray Light Panels

3 Ray Light Panels

4 Ray Light Panels

Light Color Temp.

＞1000K

Luminance Uniformity

≥0.8

Max Luminance

＞4500cd/m²

Installation Method

Standard: Hanging typ; Optional: Bracket type

Auto-induction

Insert automatically lights up, take off automatically, brightness memory

Light Source

LED cold light

Clamping device

Soft silicone

External Size(mm)

475*498*25

835*498*25

1195*498*25

1555*498*25

Viewing Area(mm)

360*420

720*420

1080*420

1440*420

Power Supply

AC100~240V, 50/60Hz

Packing Size(mm)

620*115*680

980*130*680

1350*130*680

1700*130*680

Gross Weight(kg)

4.7

9

10.3

12.2
