In the high-precision worlds of semiconductor fabrication and pharmaceutical manufacturing, cleanrooms are operational necessities.
However, they are also notorious energy consumers, often requiring 10 to 100 times more energy per square foot than a standard office building.
As global industries pivot toward Green Manufacturing, the focus has shifted to the Sustainable Cleanroom.
By strategically optimizing HVAC cycles and using precision airflow visualization, facilities can achieve significant energy savings while maintaining rigorous contamination control.
The primary driver of energy consumption in a cleanroom is the HVAC system, specifically the fans required to maintain high Air Change Rates (ACR).

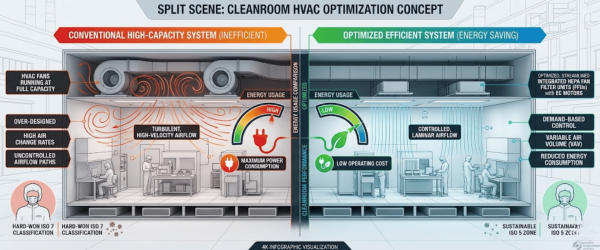

Traditionally, engineers have relied on over-designing systems, running fans at maximum capacity to ensure compliance. While safe, this approach is incredibly wasteful.
Sustainability in cleanrooms is not about reducing safety; it is about precision. By understanding exactly how air moves within the space, you can eliminate the energy wasted on unnecessary filtration cycles.
Airflow visualization, often called smoke studies, is usually viewed as a regulatory hurdle for ISO 14644-3 compliance. However, it is actually one of the most powerful tools for energy optimization.

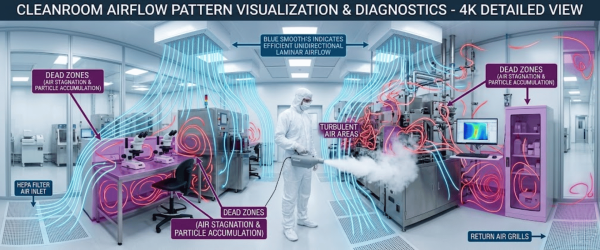

Using high-purity foggers to visualize air patterns allows technicians to identify dead zones where air stagnates and turbulent zones where air swirls inefficiently.
A sustainable cleanroom must be able to recover from a contamination event quickly. Visualization helps determine the minimum airflow required to purge particles effectively.
Instead of running at 100% capacity 24/7, systems can be programmed to ramp up only during active shifts or contamination spikes.
Once airflow is mapped and understood, the next step is technical HVAC optimization.
Fixed-speed fans are the enemy of sustainability. VFDs allow HVAC systems to adjust fan speeds based on real-time needs.
For example, during non-operational hours (nights or weekends), the ACR can be reduced by 25–50% while still maintaining positive pressure to prevent infiltration.
By integrating real-time particle counters with the HVAC control system, cleanrooms can move toward demand-controlled ventilation.
How it works: If particle counts are well below the ISO Class limit, the system automatically slows the fans. If counts rise, the system responds instantly. This prevents the energy waste associated with always-on maximum filtration.
In many cleanrooms, humidity control is more energy-intensive than cooling. Re-evaluating the tightness of temperature and humidity tolerances can lead to massive savings.
If a process can tolerate a ±5% humidity range rather than ±2%, the HVAC system spends significantly less energy on reheating and dehumidification cycles.
Sustainability is data-driven. To reduce energy safely, you need highly accurate instruments to prove that the environment remains clean.
Transitioning to a sustainable cleanroom model offers a rare win-win scenario.
While the initial setup incorporating VFDs, advanced sensors, and detailed airflow mapping requires an investment, the long-term ROI is substantial.
Facilities that master the balance between Airflow Visualization and HVAC Optimization don’t just meet regulatory standards; they set new industry benchmarks for operational efficiency and environmental responsibility.
In the race for the next generation of semiconductor and medical breakthroughs, the most efficient cleanroom will ultimately be the most competitive.
Cleanrooms require extremely high Air Change Rates (ACR) and precise humidity control to maintain sterility. Unlike standard offices, HVAC fans in cleanrooms must run constantly to filter out microscopic particles, making them one of the most energy-intensive industrial environments.
Yes. By using foggers to map the air, you can identify over-ventilated zones and turbulence. Once you prove that a zone is clean with lower airflow, you can safely reduce fan speeds, which directly lowers your monthly electricity consumption.
Absolutely. By implementing Variable Frequency Drives (VFDs) and monitoring real-time particle data, you can scale down HVAC intensity during non-peak hours. As long as the Recovery Rate meets ISO 14644 standards, your facility remains compliant while saving energy.
Demand-controlled filtration uses sensors to detect actual particle levels. Instead of running fans at 100% capacity 24/7, the system only ramps up when contamination is detected. This smart approach prevents the waste of filtering already-clean air.
