Over the past year, the Applied Physics sales team has seen a sharp increase in questions around “neutrally buoyant fog.”
Customers across pharmaceutical, semiconductor, and regulated manufacturing environments are asking:
- Can fog truly be neutrally buoyant?
- What droplet size is required?
- How does LN₂ fog compare to ultrasonic fog?
- Why does fog eventually fall—even when it starts suspended?
These are valid questions—and they deserve real, physics-based answers rather than simplified marketing claims.

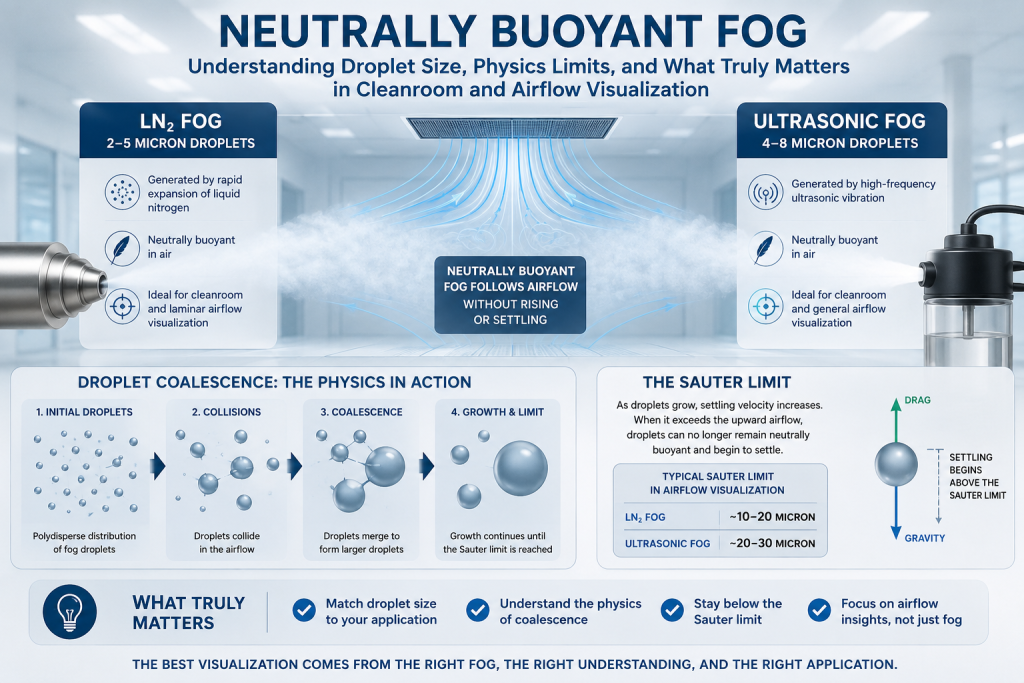

What Does “Neutrally Buoyant Fog” Actually Mean?
In strict physical terms, perfect neutral buoyancy cannot be maintained indefinitely in any aerosol system.
True neutral buoyancy would require:
- Droplets small enough to behave as gas molecules
- Zero coalescence between droplets
- No temperature gradients
- No humidity gradients
- No air turbulence
- No gravitational influence
These conditions do not exist in real environments—even in ISO-certified cleanrooms.
In practice, what most professionals mean by neutrally buoyant fog is:
Fog that remains suspended long enough to accurately visualize airflow patterns before settling.
That is achievable.
Permanent suspension is not.
Droplet Size: The Primary Driver of Suspension Behavior
The single most important variable governing fog behavior is droplet diameter.
At Applied Physics, our systems are engineered to produce consistent, tightly controlled droplet ranges:
LN₂ (Liquid Nitrogen) Fog Systems
Typical droplet size: 2–5 microns
- Generated via rapid cryogenic phase expansion
- Naturally cool and dry aerosol
- Produces dense, highly visible fog
- Excellent for tracking laminar flow, turbulence, and pressure differentials
- Minimal moisture load on controlled environments
Ultrasonic Fog Systems
Typical droplet size: 4–8 microns
- Generated mechanically via piezoelectric vibration
- Slightly warmer droplets
- Higher moisture content
- Well suited for localized airflow visualization and enclosure testing
Smaller droplets:
- Remain suspended longer
- Track airflow more faithfully
- Resist gravitational settling initially
Larger droplets:
- Fall sooner
- Combine more easily
- Begin behaving like particulate rather than aerosol
This is why LN₂ fog often appears “lighter,” even when visually dense—it starts with a smaller droplet population.
The Sauter Mean Diameter (SMD) and the Sauter Limit
When fog is evaluated scientifically, engineers reference the Sauter Mean Diameter (SMD).
SMD represents the droplet size that preserves the same volume-to-surface-area ratio as the entire population.
Why does this matter?
Because evaporation rate, coalescence probability, and aerodynamic behavior are all governed by surface area.
Lower SMD means:
- Better suspension
- Slower settling
- More accurate airflow tracking
However, aerosol physics introduces an unavoidable constraint known as the Sauter limit.
Once droplets reach sufficiently small sizes, surface energy and intermolecular attraction cause rapid recombination.
In simpler terms:
Ultra-fine droplets naturally seek each other out.
They collide.
They bond.
They grow.
This happens in every fog system.
Even if droplets begin at 2 microns, they do not remain isolated indefinitely.
Why Fog Always Eventually Falls (Just Like Clouds)
Fog behaves exactly like clouds.
Clouds appear weightless, yet they are composed of microscopic droplets suspended in air.
Over time:
- Droplets collide
- Surface tension causes bonding
- Droplet mass increases
- Terminal velocity rises
- Gravity takes over
That’s how clouds become rain.
Fog follows the same physics.
Whether LN₂ or ultrasonic:
- Initial droplets are microscopic
- Air currents maintain suspension
- Coalescence increases mass
- Gravity eventually dominates
At that point, fog becomes visibly heavier and begins descending.
This process is unavoidable.
It is not a design flaw.
It is fundamental aerosol physics.
Real-World Use in ISO Certification and Airflow Validation
Applied Physics fog systems are trusted globally to visualize airflow, pressure differentials, and turbulence during ISO certification and cleanroom validation.
Our foggers are actively used by teams at:
- Pfizer
- Thermo Fisher Scientific
- VWR
- Cardinal Health
- Samsung Biologics
- Eli Lilly
- AbbVie
- Merck
- Sanofi
- AstraZeneca
…and many more pharmaceutical, biotechnology, and semiconductor manufacturers worldwide.
These organizations rely on Applied Physics fog technology to:
- Validate laminar airflow
- Identify turbulence zones
- Detect leakage paths
- Confirm pressure cascades
- Support GMP and ISO documentation
Because accurate visualization matters when compliance, safety, and product integrity are on the line.
LN₂ vs Ultrasonic Fog in Practical Applications
LN₂ Fog Advantages
- Smaller initial droplet size (2–5 microns)
- Faster visual density
- Lower moisture impact
- Superior airflow tracing
- Minimal residue
- Excellent for GMP environments
Ultrasonic Fog Advantages
- No cryogenic consumables
- Continuous operation
- Simplified infrastructure
- Effective for localized testing
Both technologies meet regulatory needs when properly engineered.
At Applied Physics, we design both platforms to optimize:
- Droplet size distribution
- Output velocity
- Fog density consistency
- Environmental compatibility
- Repeatability of results
But neither system can override gravity or molecular attraction.
The Myth of Permanent Neutral Buoyancy
Some marketing claims imply fog can remain suspended indefinitely.
This violates basic aerosol dynamics.
What can be achieved is:
- Fine droplet generation
- Controlled dispersion velocity
- Temperature stabilization
- Consistent fog density
- Accurate airflow visualization
Which is exactly what Applied Physics systems provide.
But eventual settling is inevitable.
What Truly Matters for Airflow Visualization
Instead of chasing an impossible definition of neutral buoyancy, professionals should focus on:
- Initial droplet size
- Fog density stability
- Output velocity control
- Environmental consistency
- Repeatability
- Visual clarity
These parameters determine whether your airflow test is valid.
Not whether fog floats forever.
Applied Physics’ Engineering Philosophy
Our LN₂ and ultrasonic fog platforms are built around one principle:
Deliver the smallest practical droplet size with maximum visualization accuracy—while respecting real-world physics.
We don’t promise magic.
We deliver:
- Controlled aerosols
- Cleanroom-compatible fog
- Precision airflow visualization
- Scientifically grounded performance
Because in regulated environments, physics matters more than buzzwords.
Final Thoughts
Neutrally buoyant fog is best understood as a temporary condition—not a permanent state.
All fog systems experience droplet bonding, increased mass, and gravitational settling.
This is natural.
It’s how clouds become rain.
The real measure of performance is how accurately your fog reveals airflow during its suspension window.
That’s where engineering matters.
And that’s where Applied Physics leads.
Evaluate tracer behavior as physics, not a marketing adjective
A visible aerosol does not remain perfectly suspended forever. Practical airflow visualization depends on droplet/aerosol size distribution, evaporation, temperature, humidity, local velocity, visibility and how the tracer is introduced into the flow field.
Follow the flow
The tracer must remain responsive to the local air movement long enough to show the behavior being evaluated.
Stay visible
Very rapid dissipation can make video interpretation difficult; excessive density can obscure the very flow structures the study is intended to reveal.
Control delivery
Injection velocity, hose restriction and the point where fog enters the study area can influence what the observer sees.
