Description

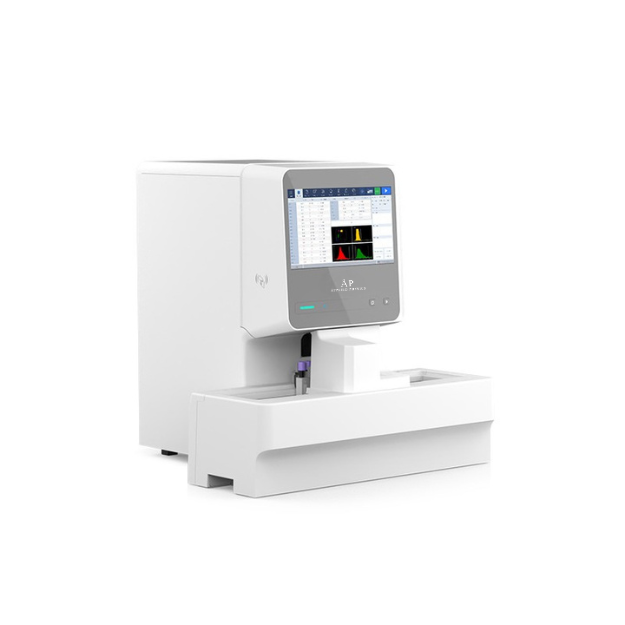

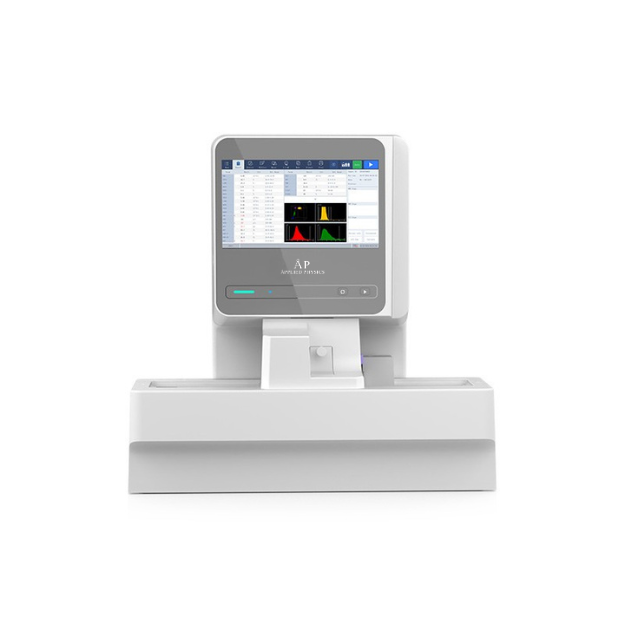

This 5-part auto hematology analyzer is applicable for detecting the parameters of WBC, RBC, PLT, HGB, etc. (see Section 3.2. Parameters for details) in anticoagulated venous whole blood or capillary blood, as well as WBC 5-part differential analysis and WBC counting. Features: 1. Throughput 70t/h. 2. 14 inch touch screen. 3. 50 sample positions, automatic loading, mixing and sampling. 4. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting. 5. 3D holographic scattergram displays the accurate 5 part differentiation of WBC. 6. Large storage capacity: 100,000 results(including histogram, scattergram, patient information). 7. 50 Flags including MALARIA and DENGUE Flags to help analysis results.
Technical Parameters:
| Model | BK-6500 | |||
| Throughput | 70 tests/hour | |||
| Assay Items | 5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram | |||
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | |||
| Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | |||
| Sample Volume | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | |||
| Parameters | 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# | |||
| Performance | Item | Linearity Range | Carry Over | CV |
| WBC | 0~300.0*10^9/L | ≤0.5% | ≤2.0% | |
| RBC | 0~8.00*10^12/L | ≤0.5% | ≤1.5% | |
| HGB | 0~250g/L | ≤0.5% | ≤1.5% | |
| PLT | 0~3000*10^9/L | ≤1.0% | ≤4.0% | |
| Storage | Up to 100,000 results including histograms, scattergrams and patient information | |||
| Display | 14 inch touch screen, resolution 1366*768 | |||
| Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||

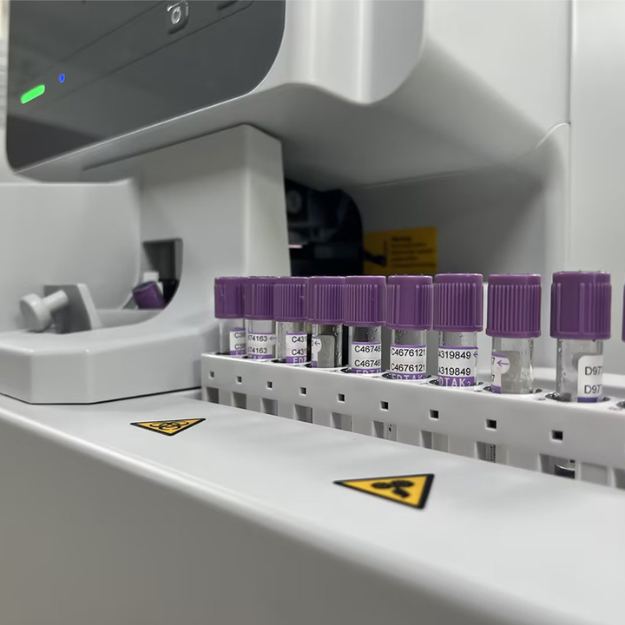

| Loading Position | 50 sample positions | |||
| Power Supply | AC100~240V, 50/60Hz; 300VA | |||
| Package Size(W*D*H) | Main Machine: 680*580*895mm Accessories: 950*500*580mm | |||
| Gross Weight | Main Machine: 60kg Accessories: 27.6kg | |||
| Reagent Package Size | 330*330*330mm, 400*290*240mm, 400*290*240mm | |||
| Reagent Gross Weight | 22kg, 2kg, 1kg | |||
