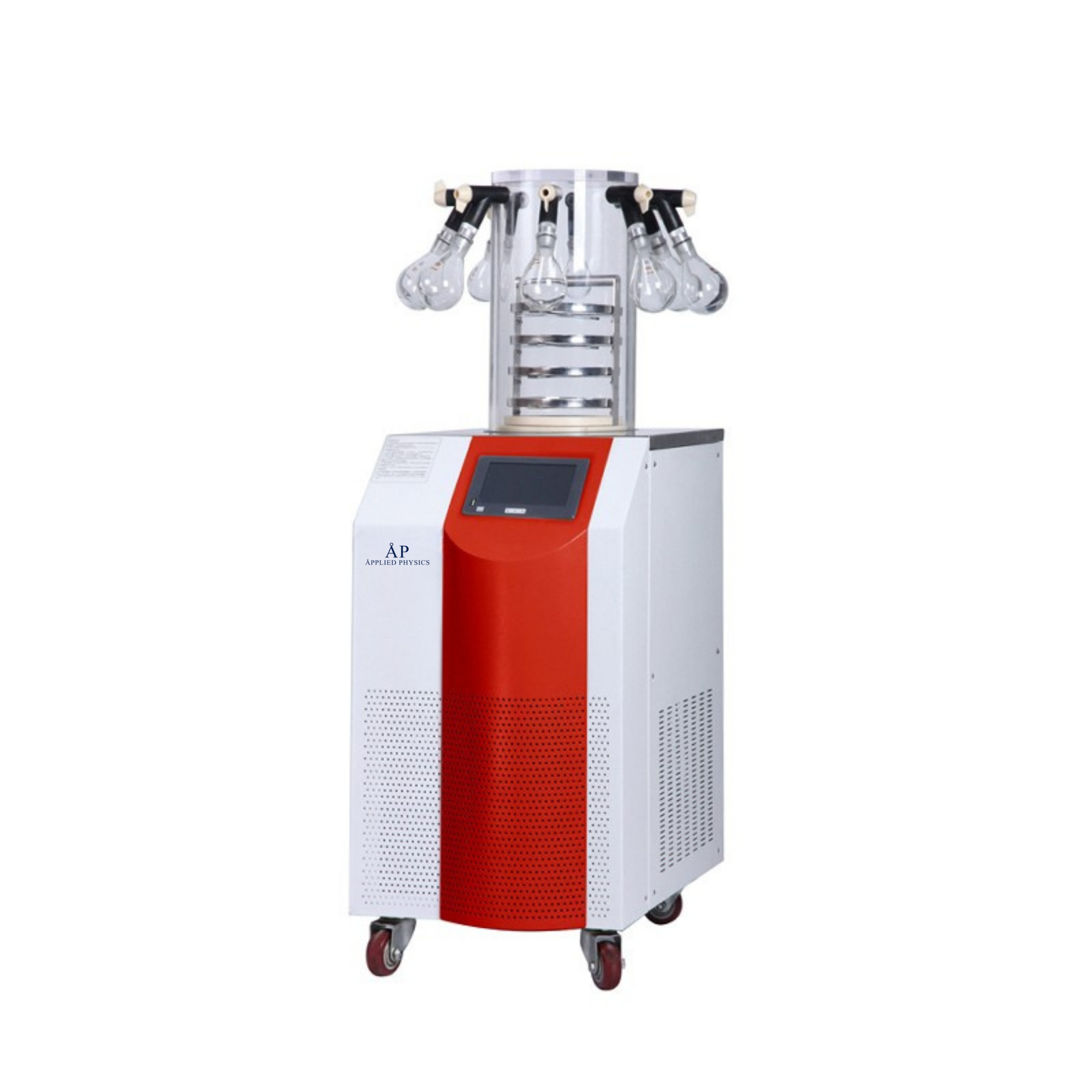

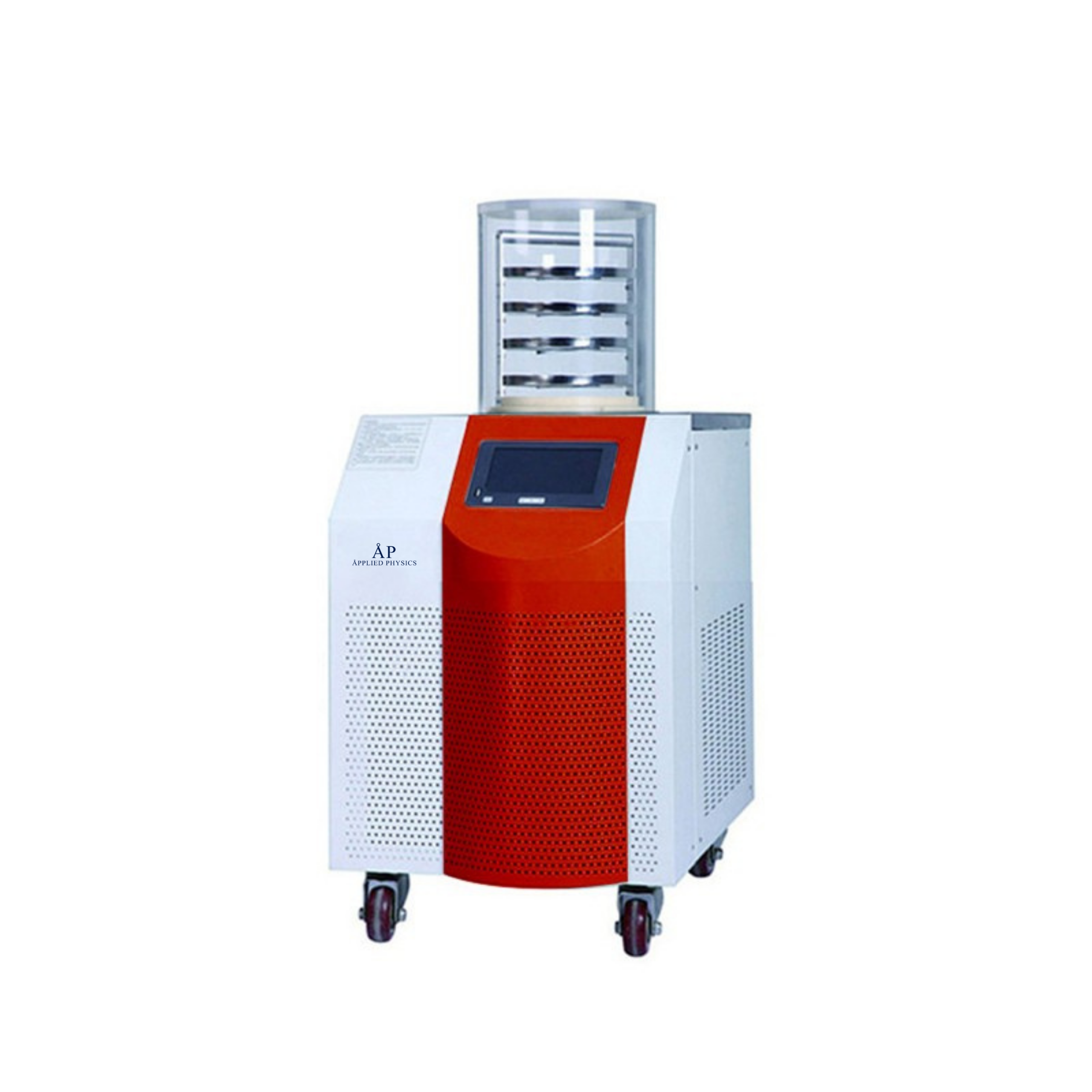

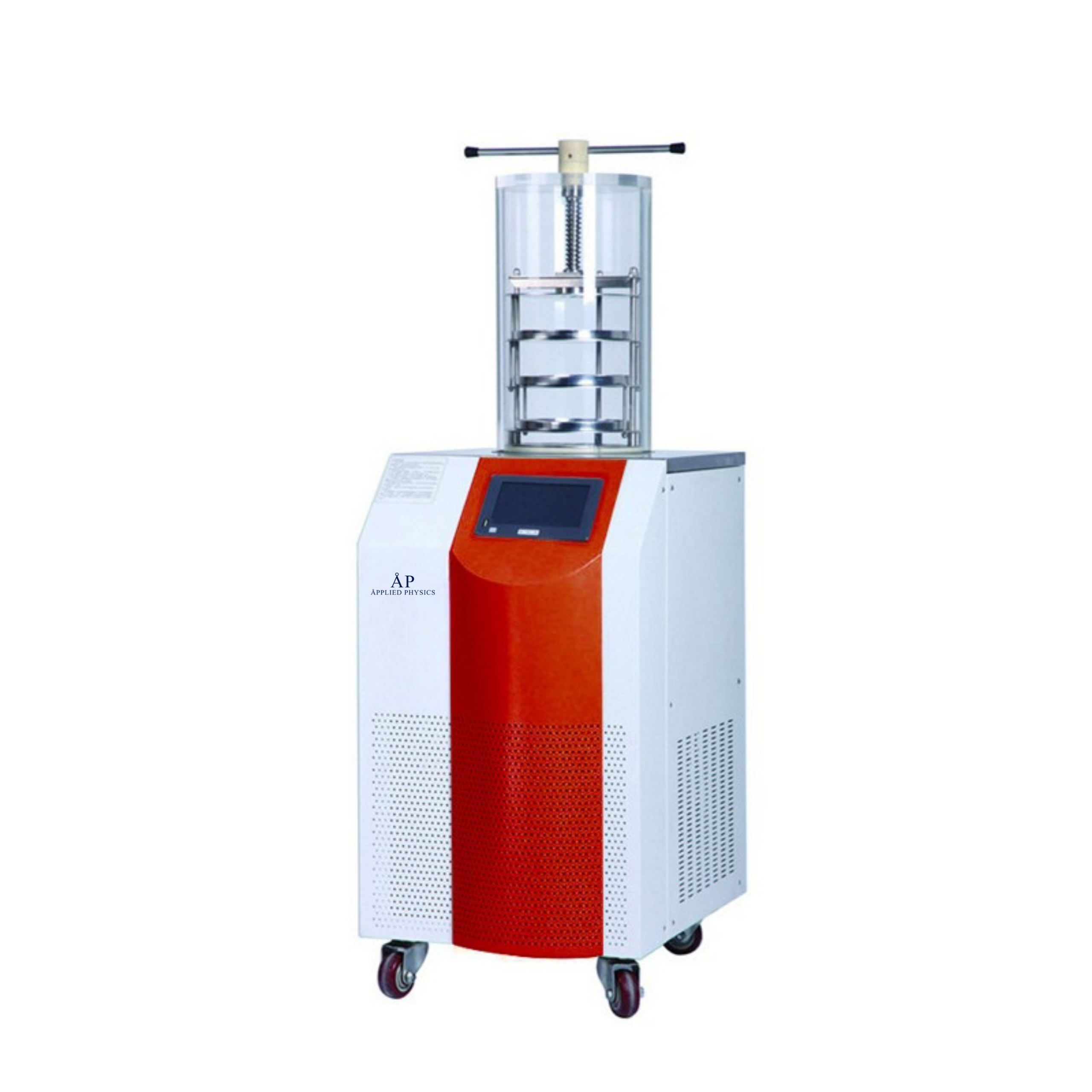

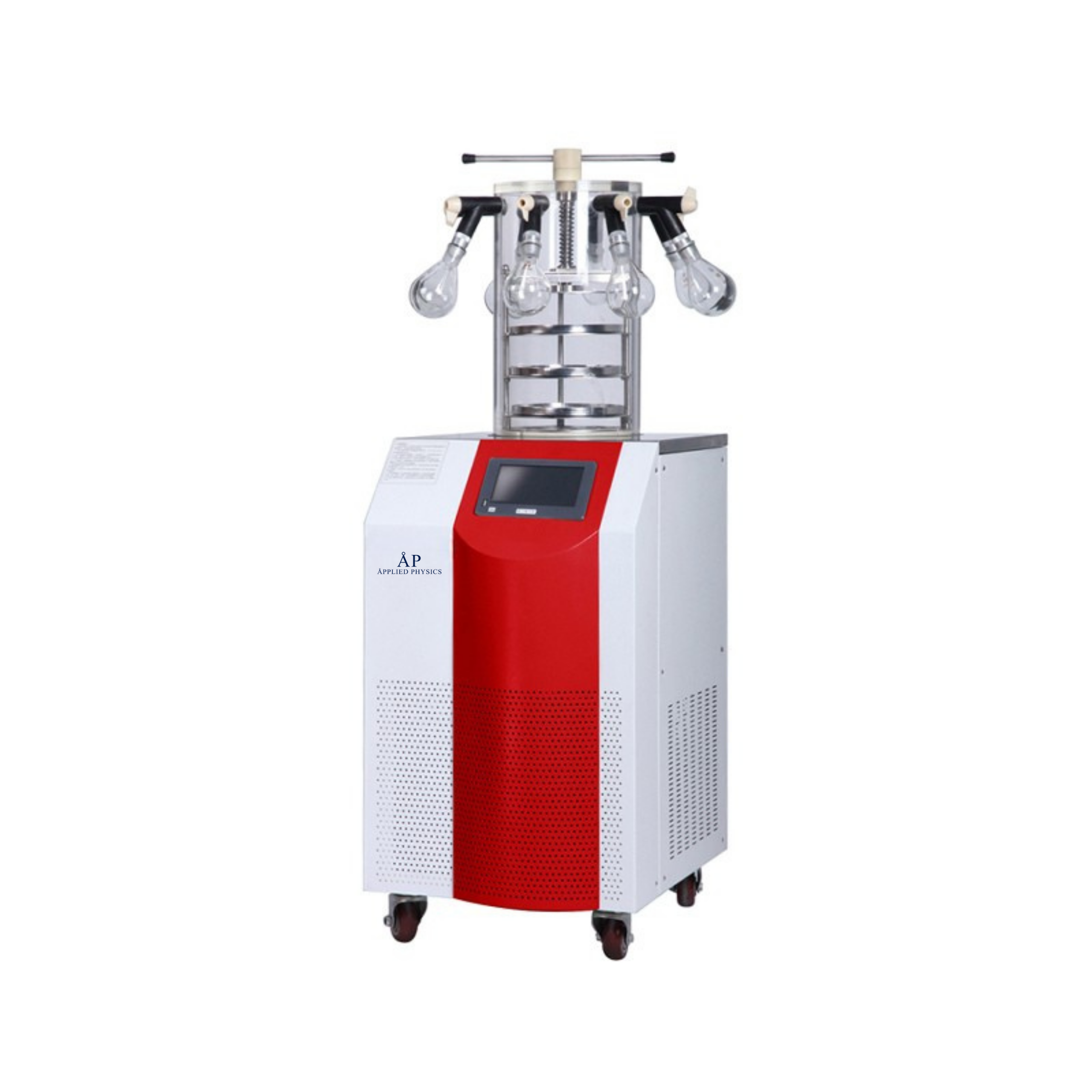

-60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine

AP Medical -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine AP Medical -60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine Model Model BK-FD12S(-60/-80) BK-FD12P(-60/-80) BK-FD12T(-60/-80) BK-FD12PT(-60/-80) Type Standard chamber Standard chamber with 8 port manifold Stoppering chamber Stoppering chamber with 8 port manifold Freeze Drying Area 0.12m² 0.18m² 0.09m² Tray 4/6(Optional)pcs 3pcs Height Between Trays 76/50mm 70mm Cold Trap Temperature ≤-60℃/-80℃(Optional) Cold Trap Capacity 9.3L Cold Trap Size (Dr*H) Φ217*250mm Vacuum Degree <10Pa Water Capture Capacity 4kg/24h Tray Size (D*H) Φ200*20mm Freeze Drying Time 24h Loading Capacity/Shelf (Liquid) 0.3L Total Loading Capacity (Liquid) 1.2L 1.8L 0.9L Drying Chamber Size (D*H) Lower circle Φ260mm, Upper circle Φ240mm Height 450mm Can Load Vials Qty Φ22mm 260 195 Φ16mm 480 360 Φ12mm 920 690 Refrigerant R600a+R290+R23 Cooling System Air cooling Consumption -60℃: 0.9kW,-80℃: 1.5kW(Optional) Power Supply 220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃) Standard Accessory -60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) Optional Function & Accessory -80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models); 800ml wide-mouth flask(for BK-FD12P/PT) External Size (W*D*H) 480*620*920/1370mm Package Size (W*D*H)mm/ Gross Weight Main Body 730*600*1180(80kg) Drying Chamber 400*400*620(15kg) Vacuum Pump 570*240*360(22kg)
