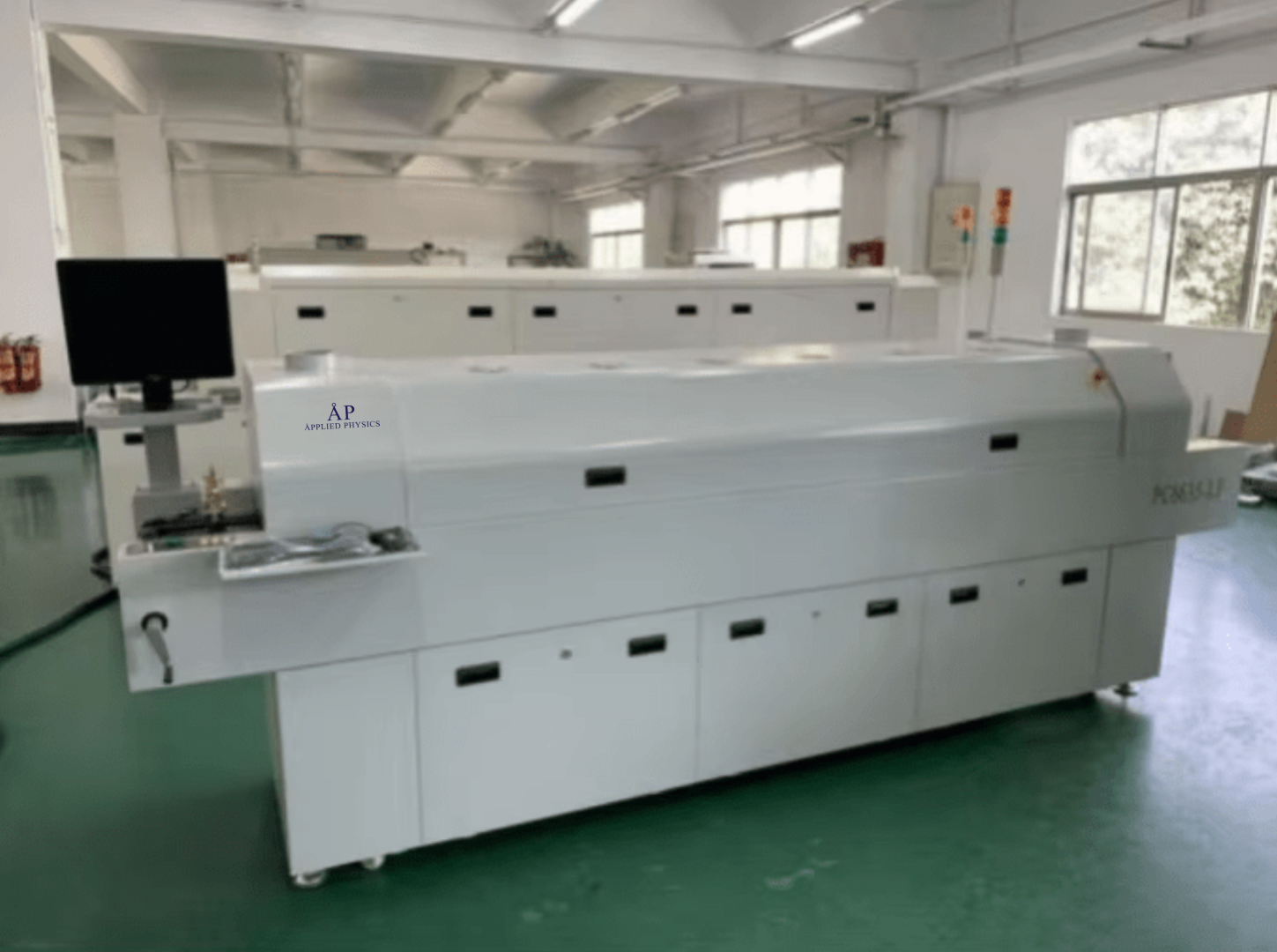

The Applied Physics Semiconductor PC6635 is a fully computer-controlled, cost-effective lead-free reflow oven designed for high-precision SMT production. Featuring custom-made track, advanced industrial computer control, and robust safety features, the PC6635 is engineered for reliability, energy efficiency, and ease of use. This oven is ideal for electronics manufacturers seeking a high-performance solution for lead-free soldering processes in the US market.
Key Features
- 12 Heating Zones: 6 upper and 6 lower zones for precise, uniform heating.
- Dual Cooling Zones: Ensures rapid and controlled cooling for optimal solder joints.
- Customizable Conveyor: Mesh belt width up to 350mm, with adjustable guide rail to 250mm.
- Industrial Computer Control: Includes a Dell monitor, Siemens PLC, and Windows 10 interface for seamless operation and data management.
- Energy Efficient: Innovative heating sequence and independent zone shutdown save up to 1/3 of energy or time.
- Comprehensive Safety: Abnormal temperature alarms, optional board drop alarms, and leakage protection.
- Data Logging: Automatic recording of machine status, temperature curves, and alarm history for up to one year.
- User-Friendly Maintenance: Detachable door structure for maximum access and easy servicing.
- High Reliability: All components are imported for maximum durability and performance.
Technical Specifications
| Parameter | Specification |
| Heating Part | |
| Number of Heating Zones | Upper 6 / Lower 6 |
| Heating Length | 2200 mm |
| Number of Cooling Zones | 2 |
| Conveyor | |
| Max. PCB Width | Mesh belt: 350 mm; Guide rail adjustable: 250 mm |
| Conveyor Direction | L→R (R→L optional) |
| Conveyor Height | Mesh belt: 880 ± 20 mm |
| Transport System | Mesh belt + guide rail transmission |
| Conveyor Speed | 0–2000 mm/min |
| Control | |
| Power Supply | 5 wires, 3 phases, 380V 50/60Hz |
| Start-up Power | 24 KW |
| Operating Power Consumption | Approx. 5–6 KW |
| Control System | Industrial computer + Dell monitor |
| Warm-up Time | About 20 minutes |
| Temperature Control Range | Room temperature – 350℃ |
| Temperature Control Method | Industrial computer + temperature control module, SSR driver |
| Temperature Control Precision | ±1℃ |
| Temperature Distribution Error | ±3℃ |
| Trouble Alarm | Abnormal temperature (super high/low after constant temperature) |
| Board Drop Alarm | Optional |
| Machine Size & Weight | |
| Weight | Approx. 400 kg |
| Dimensions (L×W×H) | 3600 × 700 × 1430 mm |
| Heating Characteristics | |
| Heating Sequence | Raises the temperature from the middle to both sides, saving 1/3 energy/time |
| Temperature Curve Conversion Time | <15 min (for temperature adjustment <100℃) |
| Heating Zone Temperature Control Accuracy | ±1℃ |
| Temperature Deviation Within Substrate | ±2℃ |
| No Load → Full Load Thermal Balance Recovery | ≤25 seconds |
| Independent Zone Shutdown | Each zone can be turned off independently via the computer |
| Heating Element | Hot air motor (imported, 2800 rpm), long-life winding heater |
| Air Duct Structure | Efficient, high-volume circulating air |
| Machine Structure | |
| Frame | Welded, sturdy, and durable |
| Door | Detachable for maximum maintenance space |
| Electrical & Control Performance | |
| Control Host | Industrial computer + Siemens PLC |
| Interface | Windows 10, Chinese/English switchable |
| Safety | Leakage protector, temperature alarms |
| Reliability | All imported components |
| Data & Monitoring | |
| Status Recording | Automatic, per zone and part, saved for 1 year |
| Temperature Curve Chart | Daily files, view and analyze trends |
| Production Database | Generates PCB production reports by board number |
| Alarm List | All alarms are saved with time stamps |
| Temperature Curve Test | Standard 3-point configuration, curve analysis |
