The AP100 is a high volume fogger using 100 liters of LN2 and 10 liters …

Categories , , Tag

Description

Cleanroom Fogger Performance Comparisons

CRF4 Cleanroom Fogger VIDEO

CRF2 Cleanroom Fogger VIDEO

AP35 Ultrapure Fogger VIDEO

The AP100 is a high-capacity fogger that uses 100 liters of liquid nitrogen and 10 liters of water, designed for large cleanrooms. It features four fog hose outputs, multiple fog wands and a rolling chassis for easy mobility. The AP100 produces 15.5 cubic meters of fog per minute with a fog density of 1520 ml per minute, achieving a visual airflow distance of 30 to 40 feet. Built to CE Mark standards, it is compatible with USP 797 Pharmaceutical In-situ Airflow Analysis, ISO 14644-3 Annex B7 Airflow Visualization Tests, Semi-Standards Clean Room Guidelines and Federal Standard 209E. The AP100 offers adjustable fog output, wireless remote control and a range of accessories, making it suitable for video and 3D modeling in cleanroom environments. It is also appropriate for use in large pharmaceutical ISO suites, semiconductor cleanrooms and stage applications, as the ultrapure fog is safe for stagehands and actors.

AP100 Ultrapure Fogger: approximately 15.5 cubic meters of fog per minute, 1520 ml fog density per minute, 90 minutes of operation, 30 to 40 feet fog distance, four fog outputs. Suitable for cleanroom or theater use.

Ultrapure foggers are engineered to deliver high fog density, which is essential for effective visual airflow over long distances. Fog density determines how well airflow can be visualized by the eye or camera. It is calculated by dividing the total liquid volume (in milliliters) by the typical minutes of operation. The AP100 achieves a fog density of 1520 ml per minute, producing fog with a droplet diameter of 2 to 3 microns. Using liquid nitrogen and DI or WFI water, the AP100 generates dense, ultrapure fog for approximately 90 minutes, making it ideal for large cleanrooms or stage applications. Smaller foggers typically produce 150 to 250 ml per minute. The AP100 offers the highest fog volume and density for visualizing airflow patterns, turbulence and dead spots, with no cleanup required after use. It is specifically designed for large-scale visual airflow modeling and 3D studies.

AP100 LN2 Ultrapure Fogger, provides 4 fog hose outputs for total of 15.5 cubic meters ultrapure fog and 30-40 feet of visual fog.

The AP100 nitrogen fog generator is designed for cleanrooms, ISO suites and sterile rooms to visualize airflow, flow patterns, dead spaces and turbulence. It supports pharmaceutical guidelines, including USP 797 In-Situ Airflow Analysis, ISO 14644-3 Annex B7 and semiconductor cleanroom standards. The nitrogen fog produced is particle-free and non-contaminating, leaving no residue and requiring no cleanup. The fog enters the airflow at low pressure, minimizing turbulence. The AP35 ultrapure fogger is CE Marked, ISO and USP compliant and suitable for Class 1 to 100,000 cleanrooms for airflow and contaminant transport studies. Applied Physics offers two nitrogen foggers: the AP35, which produces 5 cubic meters per minute for 70 minutes and the AP100, which produces 15.5 cubic meters per minute for about 90 minutes.

Performance Of The AP100 Ultrapure Fogger

Product Model AP100 Ultrapure Fogger AP35 Ultrapure Fogger Other Ultrapure Foggers
FOG Minutes ~ 90 minutes ~ 70 minutes ~ 20-40 minutes
FOG Volume Meters/Min. ~ 15.5 cu. M/min, 2 or 4 fog hose outputs ~ 5.0 cu. M/min, 1 or 2 fog hose output ~ 0.8 to 1.5 cubic meters/minute
Total FOG Volume ~ 1162 cubic meters ~ 350 cubic meters ~ 16 to 60 cubic meters
Fog Density (ml/minute) ~ 1520 mL/minute ~ 571 mL/minute ~ 150ml to 260 mL/minute
Visual Fog Distance ~ 30 to 40 feet ~ 20 to 30 feet ~ 10 to 15 feet
Adjustable Fog Volume Yes, through mechanical valve control Yes, through mechanical valve control No fog volume control
Adjustable Airflow Velocity Yes, through the touchpad and wireless Yes, through the touchpad and wireless No airflow control
Fogger Technology Ultrapure Ultrapure Ultrapure
Liquids Used LN2 + DI Water or WFI LN2 + DI Water or WFI LN2 + DI Water or WFI
Clean Room Class Class 1 – 10,000 and stage Fog Class 1 – 10,000 Class 1 – 10,000
Compatible Guidelines USP 797 USP 797 USP 797
Compatible Guidelines ISO 14644-3, Annex B7 ISO 14644-3, Annex B7 ISO 14644-3, Annex B7
Compatible Guidelines Federal Standards 209E Federal Standards 209E Federal Standards 209E
Compatible Guidelines ISO Standard 14644-1, 14644-2 ISO Standard 14644-1, 14644-2 ISO Standard 14644-1, 14644-2
DI / WFI Water Volume 10.0 liters, 2 water heaters 5.0 liters, 1 water heater 1-3 liters
Liquid Nitrogen Volume 100 liters 35 liters 6-10 liters
Operator Control Touchpad control of airflow Touchpad control of airflow Power Switch, no fog controls
Remote Control Wireless Remote control of airflow Wireless Remote control of airflow No Wireless Remote Control of fog
Handling Rolling Enclosure Rolling Enclosure Carry Handle
Enclosure 316L Stainless Steel, electro-polish 316L Stainless Steel, electro-polish Stainless Steel
Power VAC 220 VAC 120, 220, 100 VAC 120, 220, 100 VAC
Full Weight ~ 398 lbs ~ 250 lbs ~ 50-75 lbs
Accessories 1-8 Accs 1-9 Accs Several Accs

Cleanroom Ultrapure Fogger Features

  • Adjustable fog to describe direction, velocity and patterns in airflow
  • Modular design for simple operation and maintenance
  • Dual-wall, liquid nitrogen Dewar
  • Dual water heaters for maximum fog production
  • Direct fogger control to adjust fog volume and airflow velocity

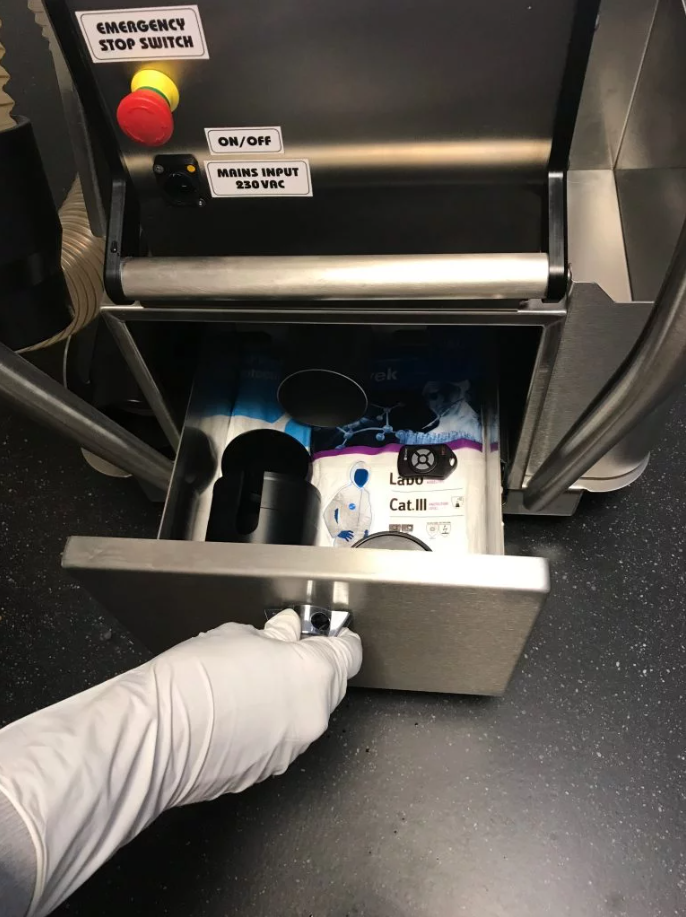

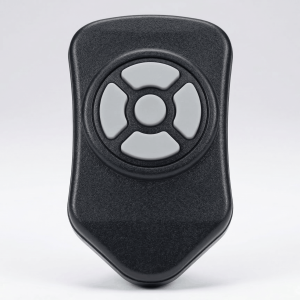

  • Wireless remote control for controlled operation behind a wall
  • Visualization of unwanted gas emission locations and dead zones
  • Supports test for ISO 14644-3 ANNEX B7 airflow visualization
  • Supports analysis for Pharmaceutical USP 797 Guidelines and airflow visualization
  • Supports airflow visualization test for Semiconductor Semi-Standards Guidelines
  • Tracking routes of unwanted air flow infiltration into clean rooms
  • No contamination created, no contamination left behind
  • No cleanup of any kind after fog visualization
  • Superb 3D airflow modeling capabilities with high-density fog
  • Very low fog exit pressure, no exit turbulence as fog enters the airflow
  • Compact, transportable, shipping case
  • Fog stream output and fog curtain output
  • For use in sterile rooms, ISO suites and clean rooms
  • High-density fog visualization provides the best airflow visualization of any fogger in the market
  • Exhaust and ventilation studies around wafer handling systems
  • Air balance studies in Pharmaceutical suites and clean rooms

Cleanroom Ultrapure Fogger Advantages

  • Highest fog density by converting 1520 ml of liquid per minute to an ultrapure fog
  • Greatest visible airflow distances of 30-40 feet
  • Excellent volume of ultrapure fog at 15.5 cubic meters per minute
  • Total volume of 1162 cubic meters of ultrapure fog per operating cycle
  • Longest operating time of 90 minutes
  • No contamination is created, no cleanup is required and no contamination to the process.
  • No turbulence is created as fog enters the airflow
  • Roller castors for easy movement over the floor
  • Two 80mm, 3.15″, fog outlets with 2 Y Adaptors each providing 4 fog hose outputs
  • User-friendly display and touch pads
  • Stainless steel contacts the liquid nitrogen and DI Water for the best purity of fog
  • very low fog exit pressure that does not create a disturbance to airflow
  • No metal contamination to fog using a stainless steel water heater and a Dewar
  • Included an LED Light accessory to provide high contrast between the visualized airflow and the background
  • Included a 350mm Fog Nozzle accessory to spread a standard fog stream around the equipment as it enters the air flow
  • Included 2 Y Adaptors to easily convert the two fog outlets into a total of 4 fogger hose outputs for your smoke studies
  • Included 2 T Adaptors to easily convert two fog hose outputs into two Fog Curtain Wands to create a 2.5 Meter wide fog curtain
  • Included four fog hoses, 5 meters x 80mm, to use with the 2 Y Adaptors
  • Included four fog wands at 1.25 M x 80mm to spread the fog stream out into a wide fog pattern
  • Using DI Water or WFI water and liquid nitrogen

* Fog distance measured at 40% humidity and air velocity of 90fpm. Visual fog distance decreases as humidity decreases or as airflow velocity increases.

Which Clean Room Fogger or Smoke Generator Is Best For My Applications?

AP100 Ultrapure Fogger, 15.5 cubic meters fog/minute, 1520 ml fog density/minute, 30-40 feet visual airflow, 90 minutes.
  • When high fog purity, high fog volume and long visible airflow are needed for large cleanrooms
  • To visualize airflow from the ceiling to the floor
  • To control fog from entering the airflow as needed
  • To provide high volumes of pure stage fog for stagehands and actors
  • For 3D airflow modeling of airflow
  • For visual smoke studies and Video Smoke studies in large cleanrooms
  • When about 90 minutes of high-purity fog duration is needed
  • When fog visibility of 30-40 feet is desired
  • For Class 1 to Class 10,000 semiconductor cleanrooms, medical suites and ISO suites

* Use Hand Gloves and Face Shield when filling Liquid Nitrogen
Use 16M ohm DI water or WFI Pharmaceutical Water
AP35 Ultrapure Fogger, 5 cubic meters fog/minute, 571 ml fog density/minute, 20-30 feet visual airflow, 70 minutes.
  • When high-purity smoke with less fog volume is needed for regular cleanrooms
  • To visualize airflow from the ceiling to the floor
  • To adjust fog volume and airflow velocity to tune fog output to airflow needs
  • For visual, video and 3D airflow modeling of airflow
  • For smoke studies supporting ISO and USP guidelines
  • When about 70 minutes of high-purity fog duration is needed
  • When fog visibility of 20-30 feet is preferred
  • For Class 1 to Class 10,000 semiconductor clean rooms, medical suites and ISO suites
CO2 Fogger, Vapor DiH2O Fogger, average 4cfm over 10 minutes
  • When Fogging Hazardous areas, No Electrical Outlet Available
  • When fog visibility for a 5-6 feet distance is acceptable
  • When 10 minutes of fog duration is useful
  • When fogging small areas
  • Class 10 or above in semiconductor or pharmaceutical clean rooms
  • When fogging workbenches

16 Meg ohm DI water is standard or Water for Injection, WFI Water
Do not permit DI Water to go stagnant in the water chamber
** Use gloves when handling CO2 ice
