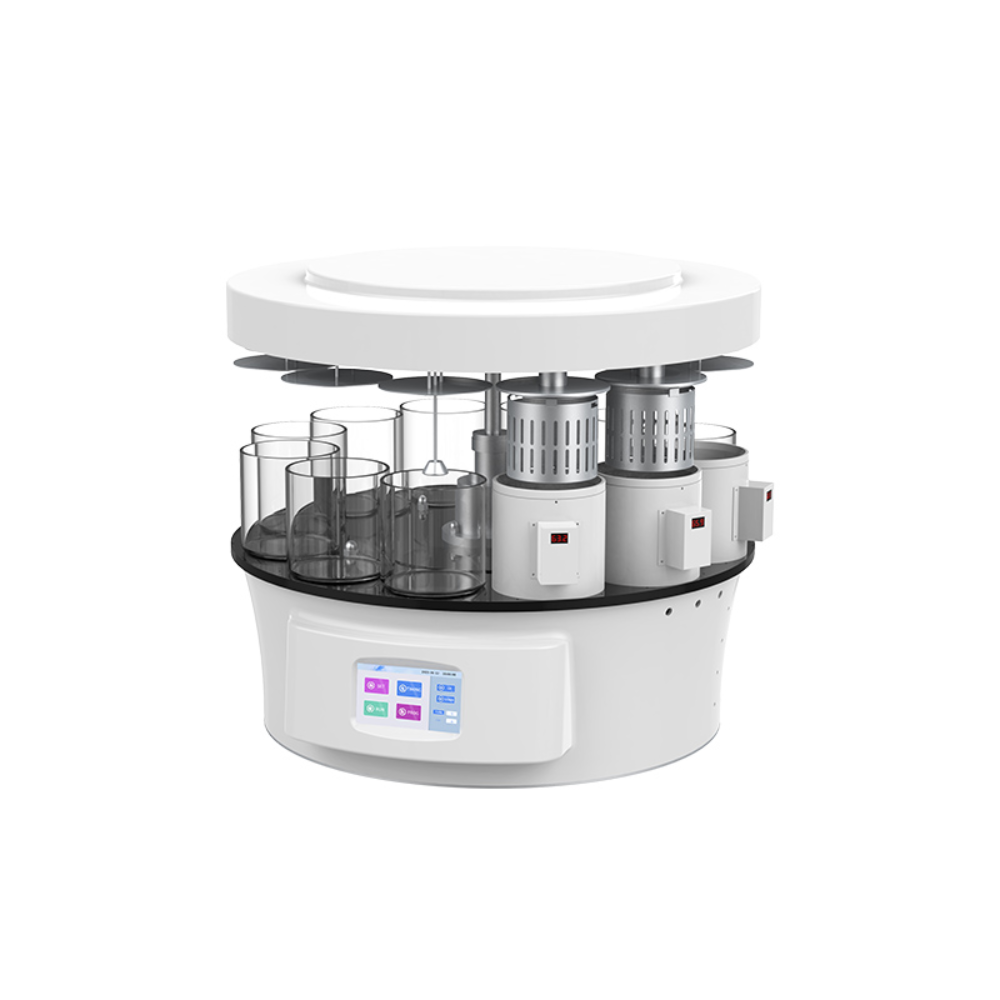

Automated Tissue Processor BK-TS6

Description

Automated Tissue Processor BK-TS6

Features:

1. The device has a high-definition color LCD touch screen and is programmable for 20 routines, simplifying operation and monitoring.

2. It automates the entire process from sample transfer to dehydration, reducing manual work and enhancing efficiency.

3. With an organizational basket capacity of 100 embedding cassettes, it can be upgraded to a double-basket configuration, enabling processing of up to 200 cassettes.

4. Powered by a high-performance AC constant-speed motor, it ensures stable and quiet operation with high torque for accurate dehydration.

5. The permanent magnet synchronous motor facilitates thorough tissue-solvent and wax mixing, ensuring effective dehydration.

6. The wax tank features a digital constant-temperature control system with high precision and an electrode-oxidized inner surface for anti-pollution and corrosion resistance.

7. An activated carbon filter and exhaust system minimize air pollution, and a vacuum extraction device enhances tissue permeation and dehydration.

Technical Parameters:

Model

BK-TS6

Cup Number

12pcs(9pcs reagent cup, 3pcs paraffin cup)

Single Cup Capacity

2300ml

Single Cup Processing Time

0~99h59min

Single Paraffin Cup Capacity

1800ml

Agitation Frequency

5min/time

Dehydration Basket Size

Φ127*110mm

Dehydration Basket Capacity

100 cassettes

Program Storage

20 sets

Noise

≤60dB(A)

Power Consumption

400W

Power Supply

AC220V, 50/60Hz(Standard);

AC110V, 60Hz(Optional)

Standard Accessories

Dehydration Basket*1; Reagent cups*9; Paraffin cups*3; Activated carbon bag*1

Optional Accessories

Dehydration Baskets*2

External Size(W*D*H)

Φ800*630~760mm

Package Size(W*D*H)

Main instrument: 940*940*820mm;

Reagent bottle: 470*640*570mm

Net Weight

75kg

Gross Weight

Main instrument: 100kg;

Reagent bottle: 32kg
