Description

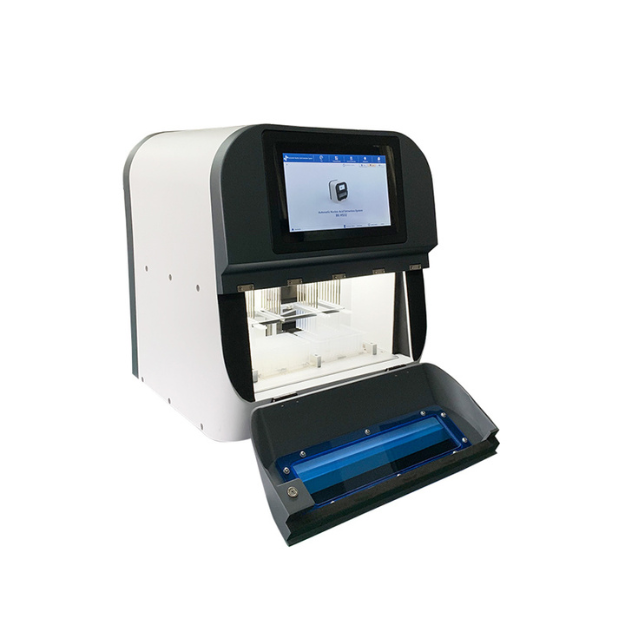

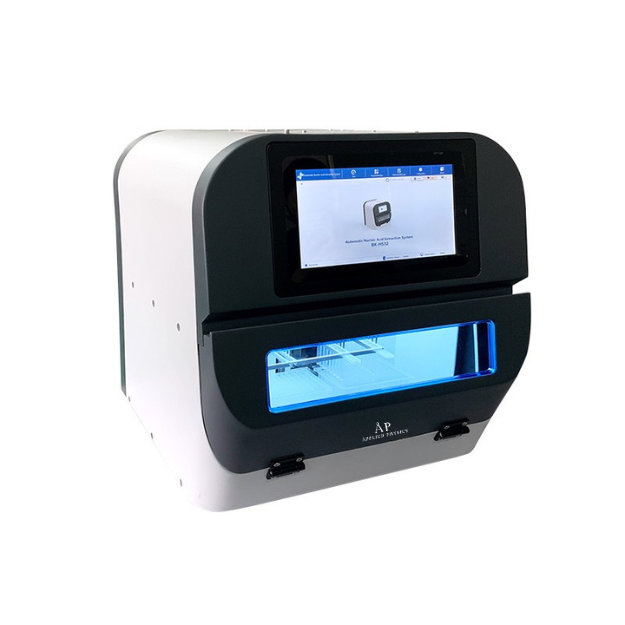

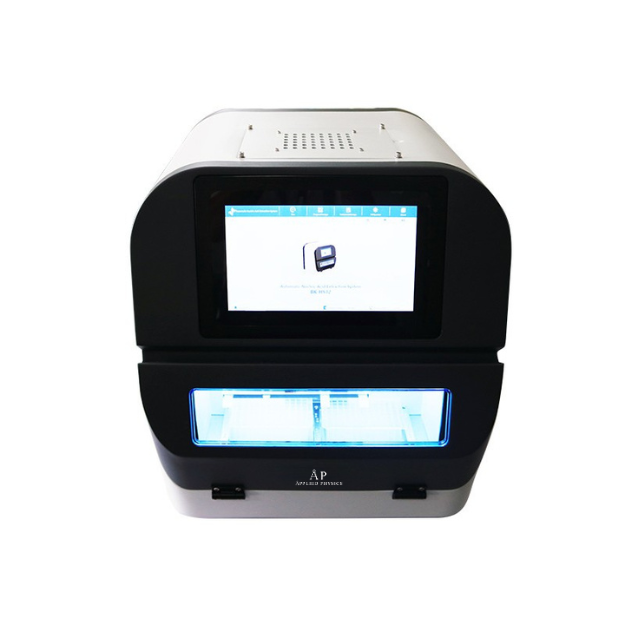

BK-HS32 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.
Technical Parameters:
|
Model |
BK-HS32 |
|
Extraction Method |
Magnetic beads |
|
Sample Capacity |
32 |
|
Processing Volume |
20~1000μl |
|
Extraction Time |
15~60min |
|
Magnetic Bead Recovery |
≥98% |
|
Extraction Difference Between Wells |
＜3% |
|
Magnetic Rod Flux |
4500Gs |
|
Temperature Range |
Adjustable heating function, RT~100 ℃ |
|
Oscillating Mixing |
Vertical mixing, low, medium, high three gears adjustable |
|
Module Station |
2 |
|
Protection Function |
Star up self-checking, power off protection, high temperature alarm, over temperature protection, motor protection |
|
Disinfection Method |
8W UV lamp |
|
Illuminating Lamp |
3.4W LED lamp |
|
Operation Interface |
10.1 inch capacitive touch screen Windows system |
|
Barcode Scanning Function |
Optional external barcode scanner |
|
Project Storage |
>1000 |
|
Interface |
2 USB port, optional LAN port |
|
Contamination Control |
Class II HEPA filter can effectively filter the internal aerosol and prevent cross contamination |
|
IAP Function |
Firmware can be updated online at any time |
|
Power Supply |
AC100~240V, 50Hz/60Hz |
|
External Size(W*D*H) |
460*470*480mm |
|
Package Size(W*D*H) |
538*538*750mm |
|
Gross Weight |
37kg |
