Description
This product is primarily used for warming and maintaining the temperature of fluids(Excluding analgesics, chemotherapy drugs and insulin) administered to the human body.(Non-contact with blood or medication)
Features:

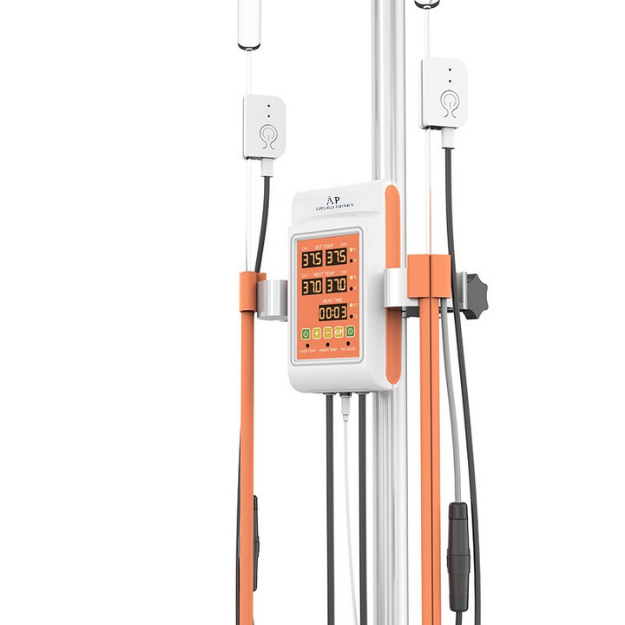

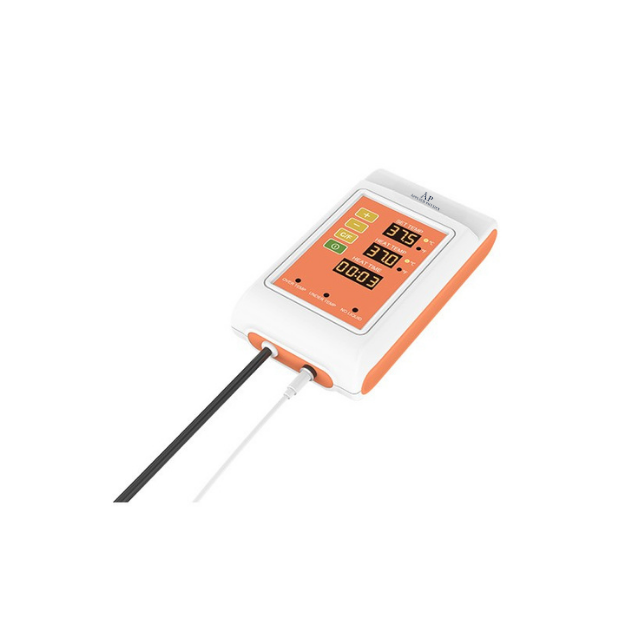

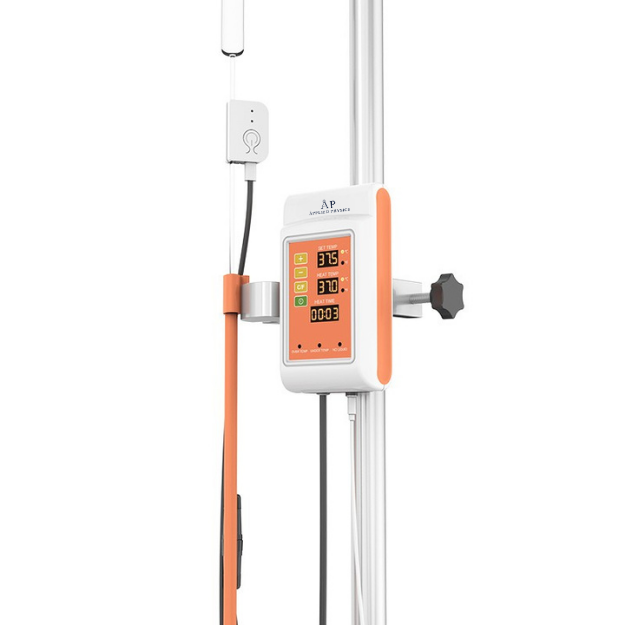

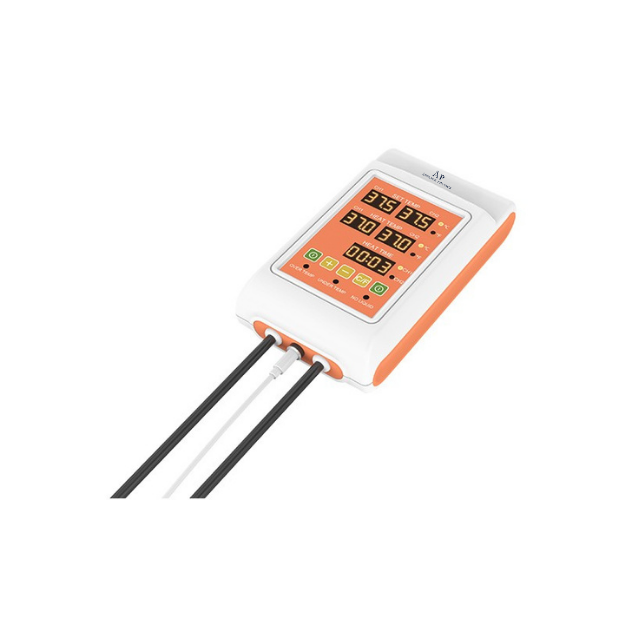

1. BK-TW110 is single-channel blood and fluid warmer, BK-TW210 is dual-channel blood and fluid warmer.
2. Dry heating method, short preheating time, rapid heating.
3. High-quality heating tube assembly, full-wrapped heating, fast heating in cold environment.
4. Heating tube assembly is plug-and-play, convenient and fast.
5. Directly heat conventional blood transfusion and infusion lines, no special consumables required, cost saving.
6. Real-time display of set temperature, real-time temperature, alarm information, working status, etc.
7. With over temperature alarm, under temperature alarm, no liquid alarm function.
Technical Parameters:
|
Model |
BK-TW110 |
BK-TW210 |
|
Channel Count |
Single-channel |
Dual-channel |
|
Adjustable Temp. Range |
33.0~41.0℃, continuously adjustable, increase rate 0.1℃ |
|
|
Temp. Accuracy |
0.1℃ |
|
|
Preheating Time |
≤2min(From 20℃ to 36℃ ) |
|
|
Display |
LED |
|
|
Display Information |
Heating time, set temperature, heating temperature, alarm information indication |
|
|
Inner Diameter of Heating Tube |
Standard: 3.5~5mm Optional: 6~7mm |
|
|
Safety Control |
The system has built-in alarm test function, and the alarm function can be tested on the panel to see if it is normal |
|
|
Power-off Protection |
When the temperature exceeds 42℃, the system will automatically stop heating with sound and light alarm |
|
|
Under Temperature Alarm |
When it is lower than 32℃, the system will give a sound and light alarm to indicate low temperature |
|
|
Heating Tube Structure |
Three-cavity silicone flexible heating sleeve, integrated with 4 sets of heating wires, two sets of independent temperature sensors |
|
|
Power |
60VA |
80VA |
|
Power Supply |
AC100~240V, 50~60Hz |
|
|
External Size(W*D*H) |
172*95*175mm |
195*115*175mm |
|
Packing Size(W*D*H) |
250*220*230mm |
|
|
Net Weight |
1.7kg |
2.3kg |
|
Gross Weight |
2.1kg |
2.7kg |
